A component-level procurement profile for side-cable I/O, sensing range and safety-system verification.

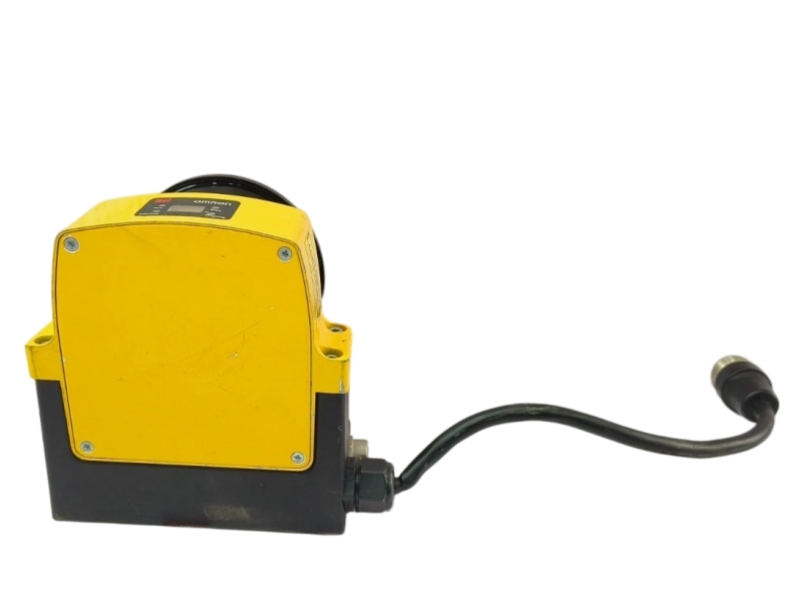

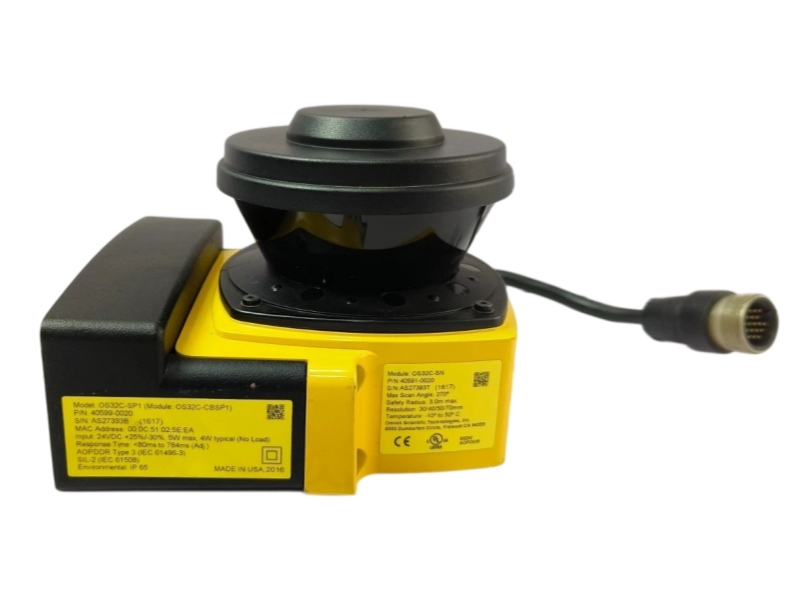

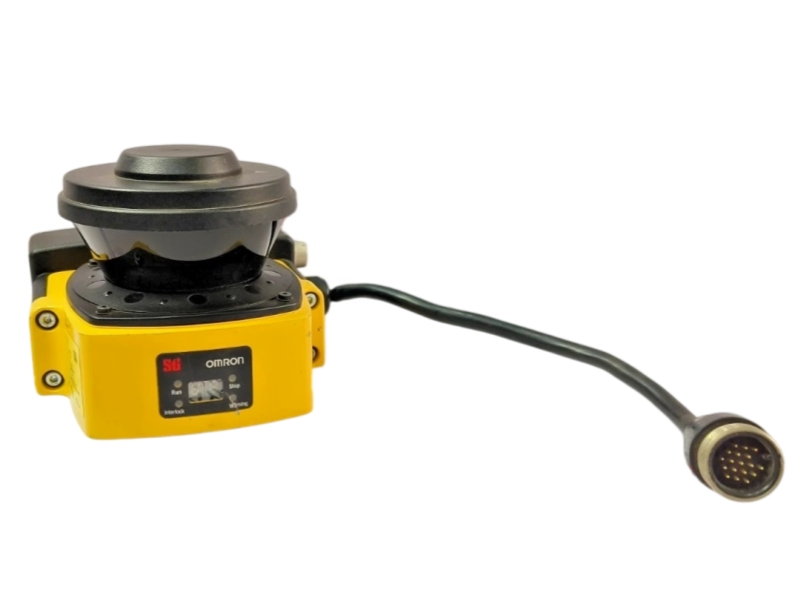

Omron OS32C-CBSP1,OS32C-SN identifies two official OS32C replacement components: an I/O block with left-side cable access and a sensor block without an I/O block. Omron lists the sensor block with a maximum operating range of 3 m and identifies both items as replacement spares. The current catalog also instructs buyers to add VER2 when ordering OS32C-SN, so the supplied code, scanner generation and replacement scope require explicit review. Procurement teams should verify both labels, safety-zone configuration, cable direction, firmware or configuration data, mounting, power, Ethernet setup and complete photo evidence before ordering.
| Commercial Item | Status |
| Product Condition | Original new |
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Item | Officially Confirmed Data |
| Manufacturer | Omron |
| Complete Part Number | OS32C-CBSP1,OS32C-SN |
| Product Family | OS32C safety laser scanner |
| OS32C-CBSP1 | Replacement I/O block with cable access from the left side |
| OS32C-SN | Replacement sensor block without I/O block |
| Maximum Operating Range | 3 m |
| Safety Zone Sets | 70 sets; one safety zone and two warning zones per set |
| Warning Zone Range | 10 m |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Supply Voltage | 24 V DC, +25% / -30% |
| Power Consumption | Maximum 5 W |
| Safety Outputs | Two PNP OSSD outputs, maximum 250 mA |
| Configuration Interface | Ethernet, M12 4-pin connector |
| Protection | IP65 |
| Safety Classification | Type 3; PLd / Category 3; SIL 2 |
| Application | Fit Consideration |
| Hazard-area access protection | Validate the safety-zone design, resolution, response time and risk assessment. |
| Replacement sensor block | Confirm the scanner generation, range, configuration transfer and I/O-block fit. |
| Left-side cable installation | Check that OS32C-CBSP1 cable access matches the machine layout and connector routing. |
| Safety scanner maintenance | Review mounting, contamination, window condition, power, OSSD wiring and Ethernet setup. |
Omron continues to publish OS32C-CBSP1 and OS32C-SN in the current official lineup and catalog, but the reviewed pages do not assign a formal lifecycle term. The current ordering note instructs customers to add VER2 to OS32C-SN; this page preserves the user-supplied complete model string and flags that ordering check.
It identifies an official left-side cable I/O block and a 3 m replacement sensor block for the Omron OS32C platform.
Omron’s current catalog instructs buyers to add VER2 when ordering OS32C-SN, so the required scanner generation must be confirmed.
Omron lists a maximum operating range of 3 m for the replacement sensor block.
The reviewed current Omron lineup remains published, but it does not assign a formal Active, cancellation or discontinuation term.
Verify both codes, VER2 requirement, range, I/O-block fit, zone configuration, OSSD wiring, Ethernet setup, mounting and label evidence.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Email: sales6@apterpower.com | WhatsApp: +86 18159889985
A controlled handoff from identity and compatibility checks to shipment documentation and after-sales follow-up.
| Checkpoint | How It Is Handled |
| Model and suffix verification | Match OS32C-CBSP1,OS32C-SN against the inquiry, unit label and packaging. |
| Condition confirmation | Review sensor window, I/O block, enclosure, connectors, cable access, markings and visible condition. |
| Technical compatibility review | Compare scanner generation, VER2 requirement, sensing range, zone data, OSSD wiring, Ethernet setup and mounting. |
| Product and label photo confirmation | Request readable front, rear, terminal, nameplate and packaging photographs. |
| Protective packaging | Protect the sensor window, connectors and electronic assemblies against impact, moisture and contamination. |
| Worldwide shipping | Coordinate available options after destination, quantity and documentation scope are reviewed. |
| Shipment tracking | Provide tracking information after carrier acceptance. |
| Customs documentation | Prepare transaction documents for the confirmed destination and shipment. |
| Written warranty terms | Provide written terms aligned with the confirmed transaction. |
| Return authorization process | Require return authorization before goods are sent back. |
| After-sales response | Use order records, shipment data, technical evidence and photographs to coordinate follow-up. |
Check whether the vendor preserves the complete part number, requests readable label evidence, separates commercial statements from manufacturer data and provides written transaction terms.
Risk signals include shortened order codes, parameters copied from another suffix, unsupported interchangeability claims, unclear condition statements and reluctance to provide product or packaging evidence.
Align the exact unit identity, project compatibility, AS-i and MPI requirements, inspection scope, packaging, shipping documents, written warranty and return authorization process.
