EDS-205A Overview

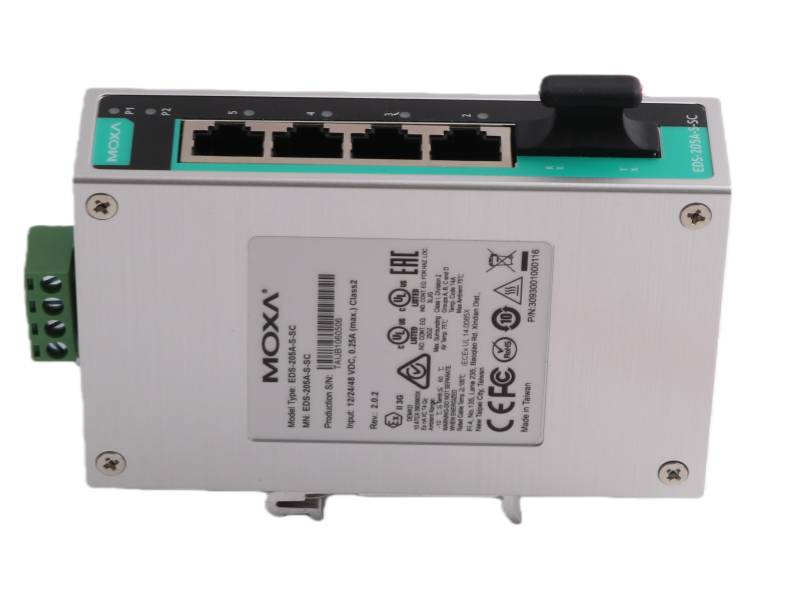

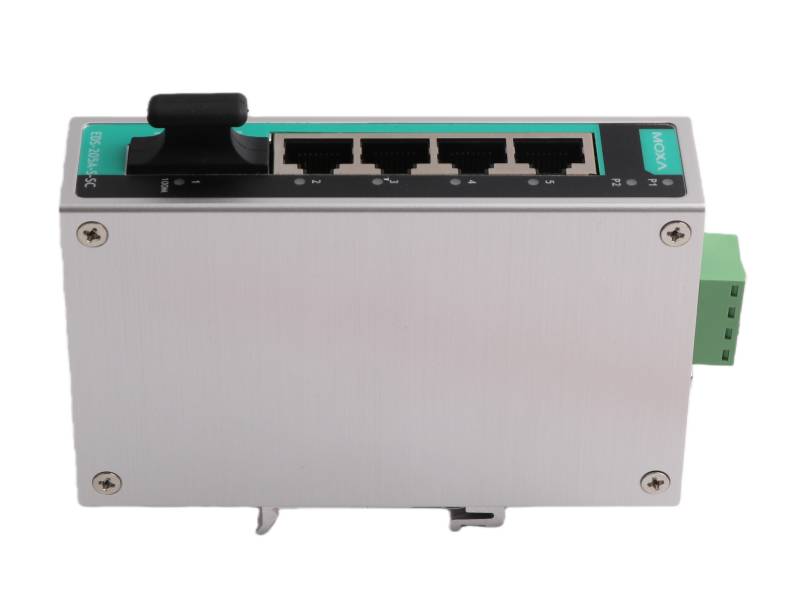

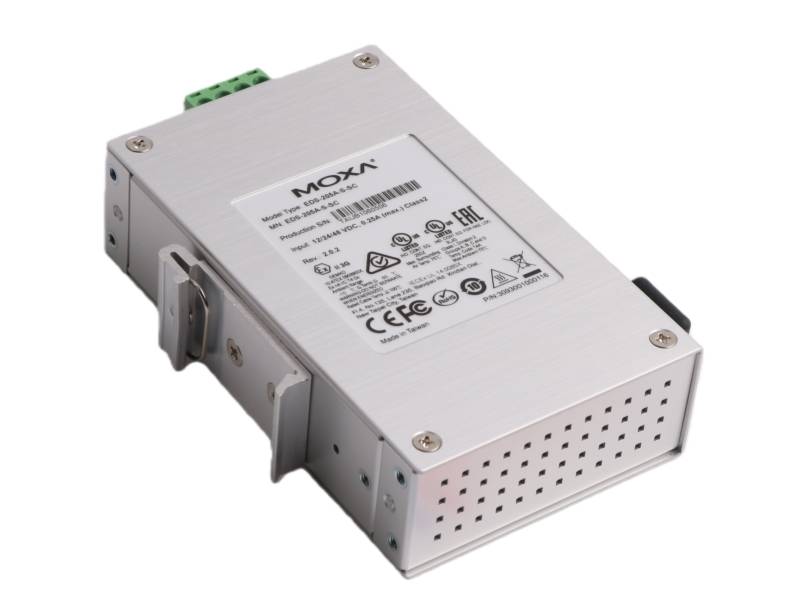

The Moxa EDS-205A Unmanaged Switches Series comprises rugged 5-port industrial Ethernet switches designed for reliable operation in harsh environments, featuring redundant DC power inputs, a wide operating temperature range up to -40 to 75°C, and certifications for maritime, rail, and hazardous locations.

Features and benefits

 Compact & Versatile: 5-port industrial Ethernet switch with a rugged IP30 aluminum housing.

Dual Power Inputs: Supports redundant 12/24/48 VDC power for high reliability.

Wide Temperature: Available in standard (-10 to 60°C) and wide (-40 to 75°C) temperature models.

Harsh Environment Certified: Suitable for hazardous, maritime, rail, and mobile applications.

Auto-sensing Ports: Features auto-negotiation, MDI/MDI-X, and flexible fiber optic options.

Industrial Protection: Includes DIP switches for broadcast storm control and 100% burn-in testing.

FAQ

Q1: What is the core function of the Moxa EDS-205A?

A1: It is a 5-port industrial Ethernet switch designed to provide robust and reliable network connectivity in extreme and harsh industrial environments.

Q2: How does the EDS-205A ensure power supply reliability?

A2: It features dual redundant 12/24/48 VDC power inputs, allowing simultaneous connection to live sources for continuous operation.

Q3: What certifications make it suitable for harsh locations?

A3: It carries key certifications including Class I Div. 2/ATEX Zone 2 for hazardous areas, EN 50121-4 for rail, and DNV/GL for maritime applications.

Q4: What is its operating temperature range?

A4: Standard models operate from -10 to 60°C, while the -T models offer an extended range from -40 to 75°C.

Q5: Does it support fiber optic connections?

A5: Yes, select models (EDS-205A-M-SC/M-ST/S-SC) include one 100BaseFX port for multi-mode or single-mode fiber connections.
