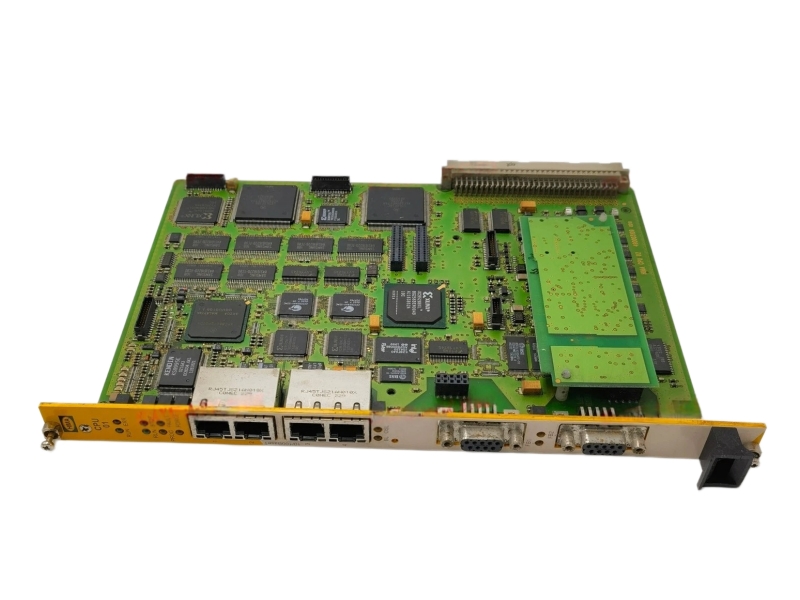

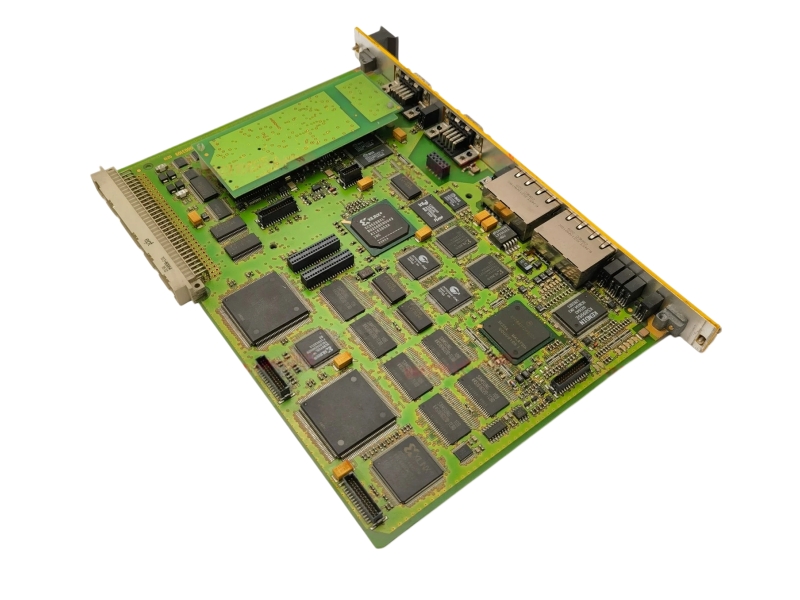

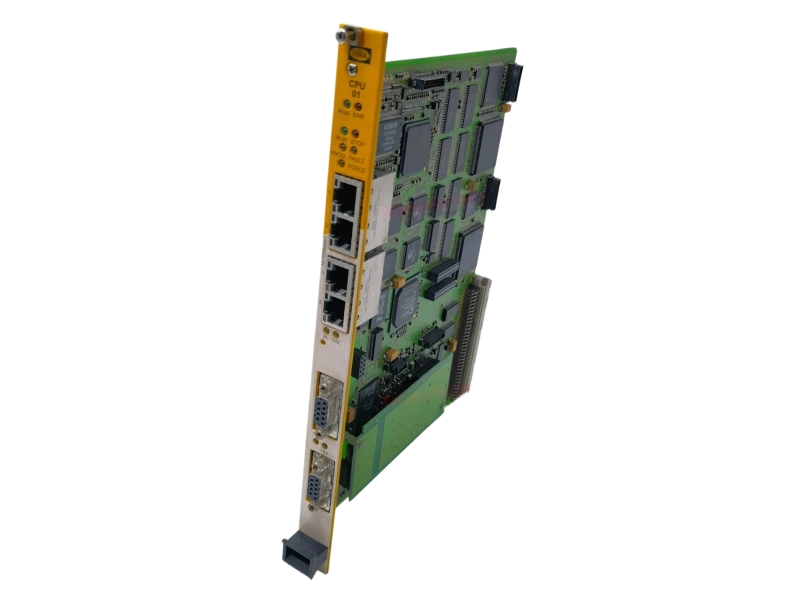

HIMA F60CPU01 is a safety-related central processor module for the HIMatrix F60 system, delivering SIL 3-certified control, real-time processing, and reliable communication for critical industrial safety applications.

Specifications

General

• Manufacturer: HIMA
• Model: F60CPU01
• Product Type: Safety-related CPU / Central Controller
• System: HIMatrix F60 modular safety system

Performance

• Processor: Dual-core architecture (high-performance safety CPU)
• Response Time: ≥ 20 ms
• User Program Capacity:
  • Up to 2047 kB (depending on firmware version)
• Program Handling: Supports multiple user programs (up to 32)

Communication Interfaces

• Ethernet: 4 × RJ45 (10/100 Mbps, integrated switch)
• Fieldbus: PROFIBUS, RS232, RS485, RS422, INTERBUS
• Safe Communication: SafeEthernet protocol support

Electrical

• Supply Voltage: 24 V DC (approx. 18–28.8 V range)
• Power Consumption: Industrial low-power design (~few watts)

Safety & Certification

• Safety Integrity Level: SIL 3 (IEC 61508, IEC 61511, IEC 62061)
• Additional Ratings: Cat. 4 (EN 954-1), PL e (ISO 13849-1)
• Certifications: TÜV, ATEX Zone 2, UL compliant

Environmental

• Operating Temperature: 0°C to +60°C
• Storage Temperature: -40°C to +85°C

Mechanical

• Mounting: Subrack (HIMatrix F60 system)
• Weight: ~280 g

• Application

• Emergency Shutdown Systems (ESD)
  Ensures fast and reliable shutdown control in hazardous industrial environments.
• Oil & Gas Industry
  Provides SIL 3 safety control for upstream, midstream, and downstream operations.
• Burner Management Systems (BMS)
  Controls combustion processes with high reliability and safety integrity.
• Power & Energy Systems
  Used in turbines and power plants for secure monitoring and control tasks.
• Process Automation Safety
  Ideal for chemical and manufacturing plants requiring fail-safe logic execution and diagnostics.
