UR8FV Product datasheet

UR8FV Functional Description

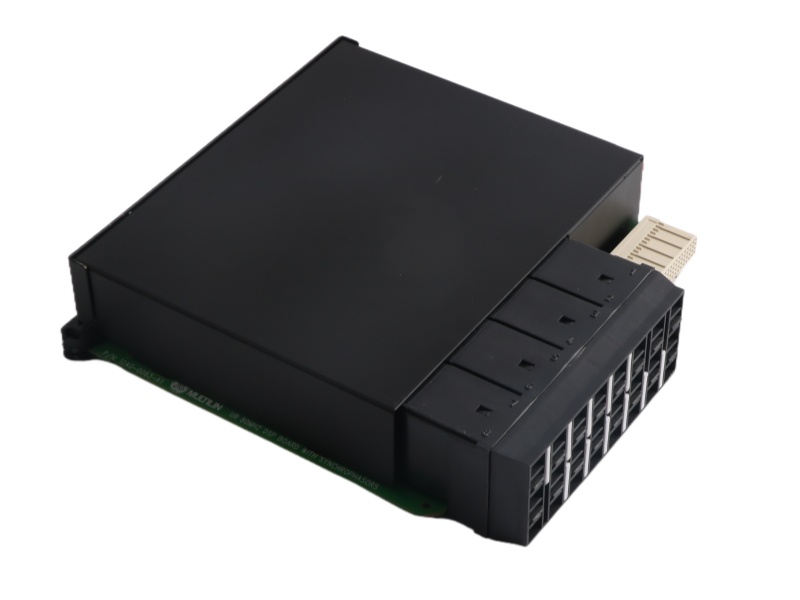

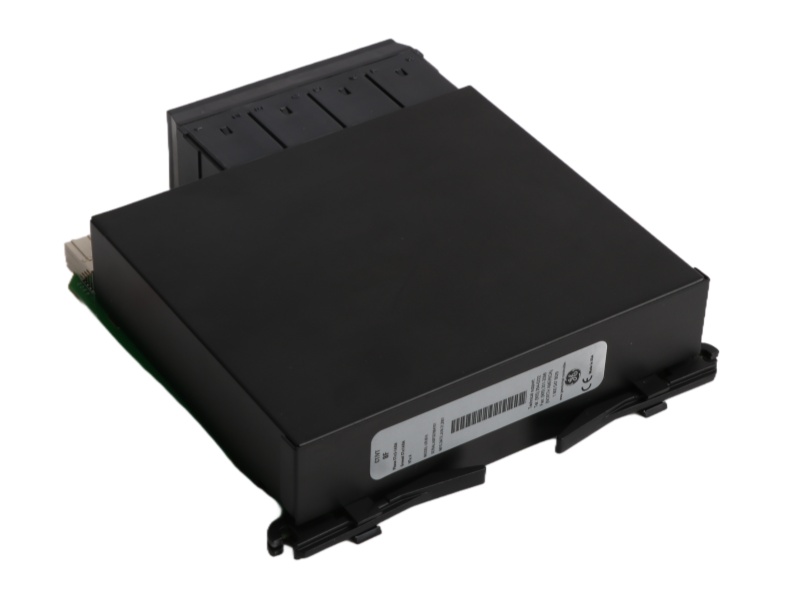

The UR-8FV Module General Electric is a high-precision CT/VT module designed for the GE Multilin UR Series Universal Relays, providing reliable analog inputs for measuring current and voltage signals from sensors and other devices. It supports three 1A/5A phase CT inputs, one 1A/5A ground CT input, and a four-terminal voltage transformer input, enabling accurate monitoring of AC power lines in industrial and utility applications.

The General Electric versatile and reliable industrial control module UR8FV delivers exceptional measurement accuracy, with ±0.5% FS for current and ±0.2% FS for voltage, across a frequency range of 45–65 Hz. Its compact design allows easy installation and configuration, while its robust construction ensures long-term reliability in demanding operational environments. The module is compatible with standard CT and VT ranges, including 1A or 5A for CT inputs and 115V, 230V, 460V, or 575V for VT inputs.

This module enhances the monitoring and control capabilities of the UR Series relays, providing up to 24 CT and VT analog signals for precise system oversight. The Relay Module UR8FV General Electric also supports sensitive grounded inputs for ground fault protection, making it suitable for high-impedance grounded systems where accurate detection is critical. Proper matching with the relay CPU ensures accurate display readings and avoids erroneous indications.

As a versatile and reliable solution, the General Electric UR 8FV Control Module replaces older CT/VT modules or upgrades existing relay systems, improving overall system safety and operational efficiency. Its wide operating range, high-precision measurement capabilities, and seamless integration with GE Multilin relays make the UR 8FV Relay Module General Electric an ideal choice for modern power system monitoring and protection.
