UR8NH Product datasheet
|
Model number: |
UR8NH |
|
Module Type： |
Multilin UR Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x12.2x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
UR8NH Functional Description

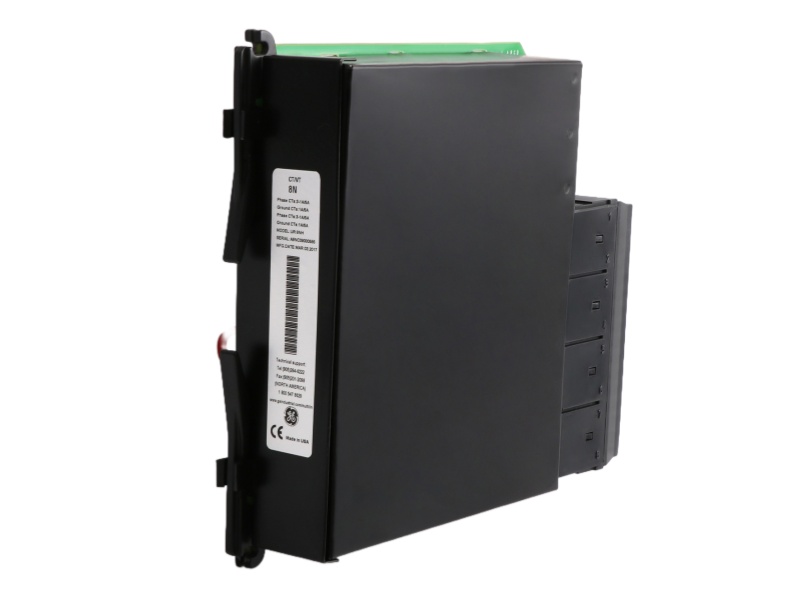

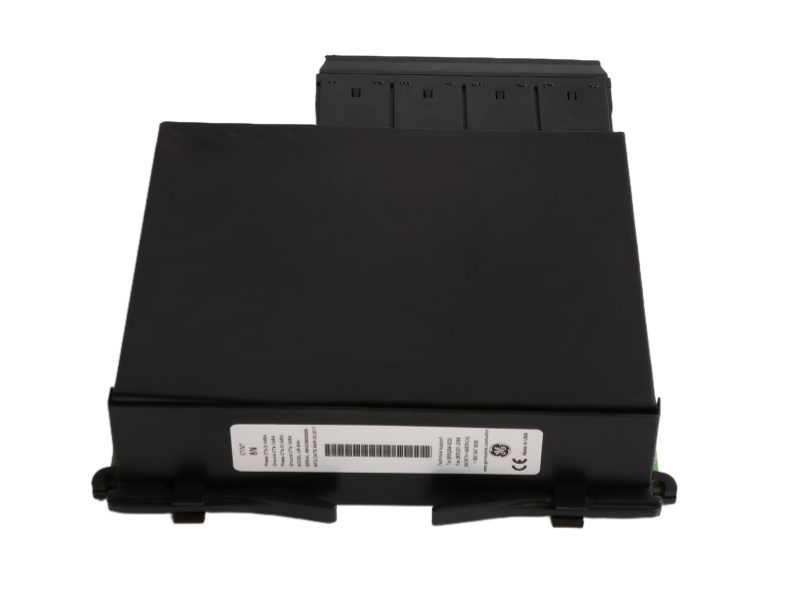

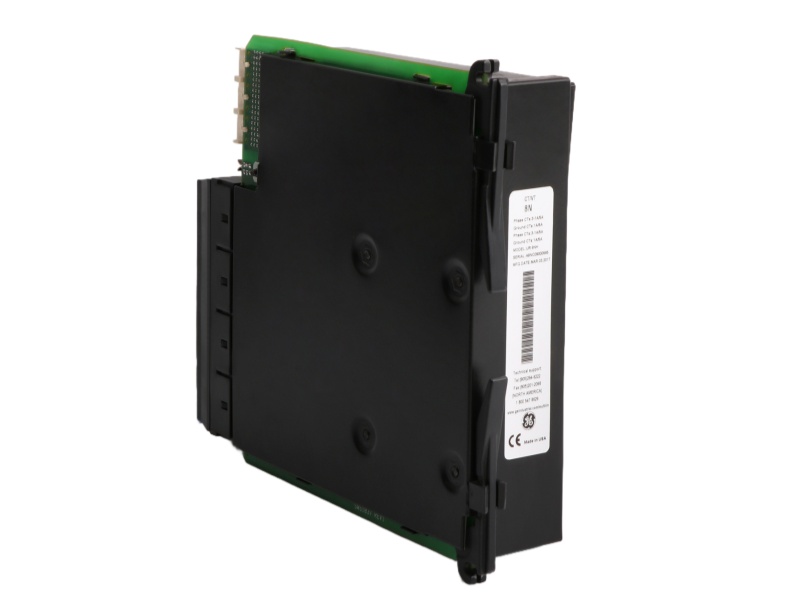

The General Electric ultilin UR Module UR8NH is a versatile CT/VT and digital I/O module designed for GE Multilin UR Series Universal Relays, providing reliable signal interfacing for current transformers (CT) and voltage transformers (VT). It connects these analog signals to protective relays and monitoring systems, enabling precise power system measurement and control. With robust construction and compact dimensions of approximately 25.9 x 16 x 4.3 cm, the General Electric UR8NH operates reliably in temperatures from -40°C to 75°C, ensuring performance in demanding industrial environments.
The UR 8NH UNIVERSAL RELAY General Electric also functions as a high-performance digital I/O module, facilitating input and output of digital signals from devices such as push buttons, switches, relay contacts, and other peripheral equipment. This capability enables seamless communication between the CPU module and external digital sources, supporting real-time monitoring and rapid response to system events.
In addition, the General Electric UR 8NH Multilin UR Module supports multiple communication protocols, including Serial I/O, Modbus Master/Slave, CCM Slave, DNP3 Master/Slave, and SPL. Each communication port can handle up to 64 communication tasks, offering flexible configuration and integration into complex power system networks. The module’s advanced features enhance monitoring, measurement, and protection capabilities, ensuring safe and stable operation.
Designed for industrial reliability, the General Electric UR Series UR8NH provides expandable I/O options and integrated monitoring, delivering comprehensive data for power system management. Its combination of CT/VT input, digital I/O, and versatile communication makes the UR8NH reliable digital control General Electric an essential component for modern protective relay and automation systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
