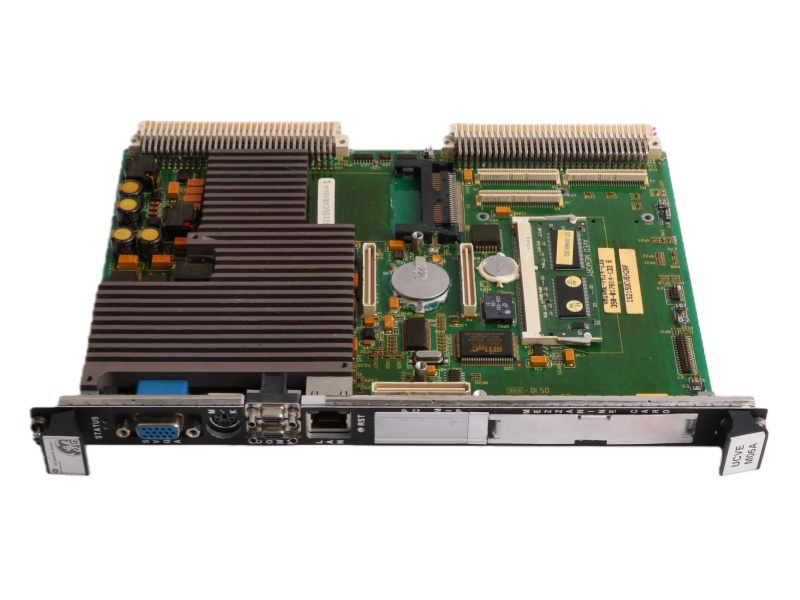

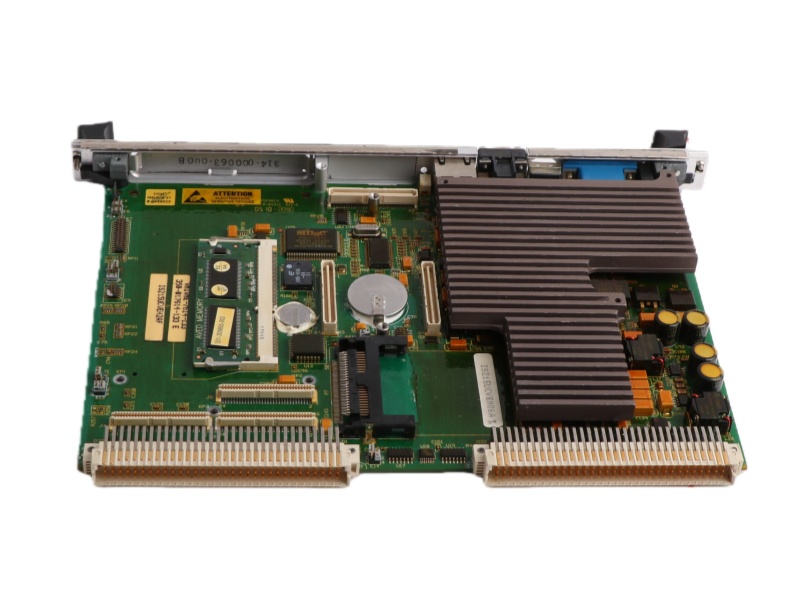

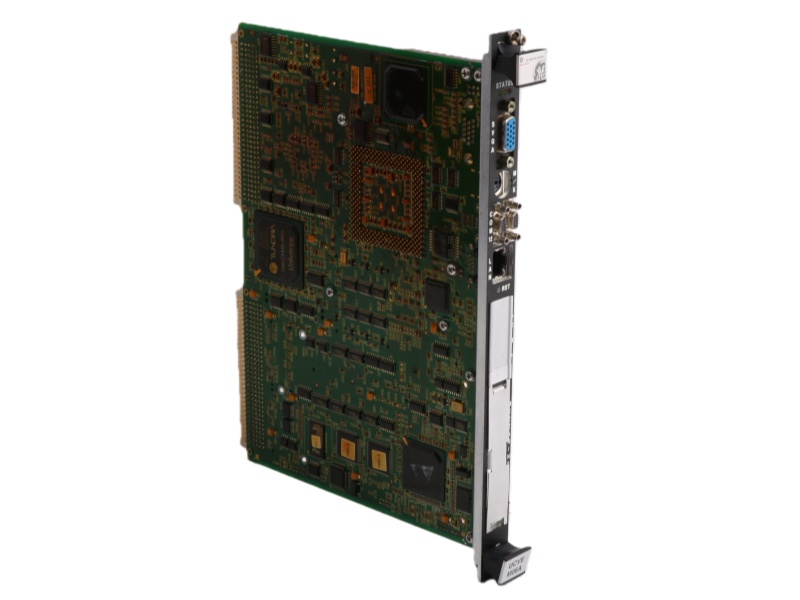

IS215UCVEM01A Overview

The UCVEH2A GE BOARD MARK6 IS215UCVEM01A is a UCVE controller module in the Mark VI Speedtronic series, designed for gas, steam, and wind turbine control. It represents a significant upgrade with expanded application capabilities.

Technical Data Summary

Part Number & Manufacturer: IS215UCVEM01A, a UCVEM01 controller manufactured by General Electric (GE).

Series & Application: Part of the Speedtronic Mark VI series for turbine control in gas, steam, or wind applications.

Processor: Powered by an Intel Celeron microprocessor running at 300MHz.

Memory Configuration: Includes 32MB DRAM, 128KB L2 cache, 16MB Compact Flash, and battery-backed SRAM.

Operating System: Utilizes the QNX real-time operating system for reliable performance.

Documentation: Refer to GEH-6421C Volume II for detailed operational and installation instructions.

FAQ

Q1: What is the IS215UCVEM01A and what system is it used in?

A1: The IS215UCVEM01A is a UCVE controller module used in the GE Mark VI Speedtronic series for controlling gas, steam, and wind turbines.

Q2: How is the IS215UCVEM01A installed?

A2: It is designed for VME rack installation, secured with mounting brackets and top/bottom set screws for stability and easy removal.

Q3: What communication and diagnostic features does it have?

A3: The module includes two Ethernet ports, LAN and SVGA ports, a reset button, and three status LEDs on its faceplate for real-time monitoring.

Q4: Does the IS215UCVEM01A come with a warranty?

A4: Yes, it is typically covered by a three-year PCB warranty upon original purchase.

Q5: What should be considered when replacing this module?

A5: It is recommended to order an exact duplicate board to ensure compatibility, especially since many similar controller boards exist within the system.
