IS200WEORG1A Product datasheet
|
Model number: |
IS200WEORG1A |
|
Module Type： |
Wind Turbine Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIE |
|
Lead time： |
In Stock |
|
Weight: |
0.38 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
28x12.6x3.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200WEORG1A Functional Description
The General Electric IS200WEORG1A Wind Turbine Board printed circuit board was developed by General Electric shell company specifically for use alongside their Mark VIe series of turbine control products. The Mark VIe series control systems are relatively new; as their central focus is wind turbine control system applications. This particular Mark VIe series printed circuit board is relatively limited in terms of the amount of original factory-issued instructional material available online detailing it, but a swathe of supplementary information is still retrievable for the GE IS200WEORG1A Mark VIe through a diligent AX Control technician-led visual inspection, as well as through a careful breakdown of its functional IS200WEORG1A product part number.

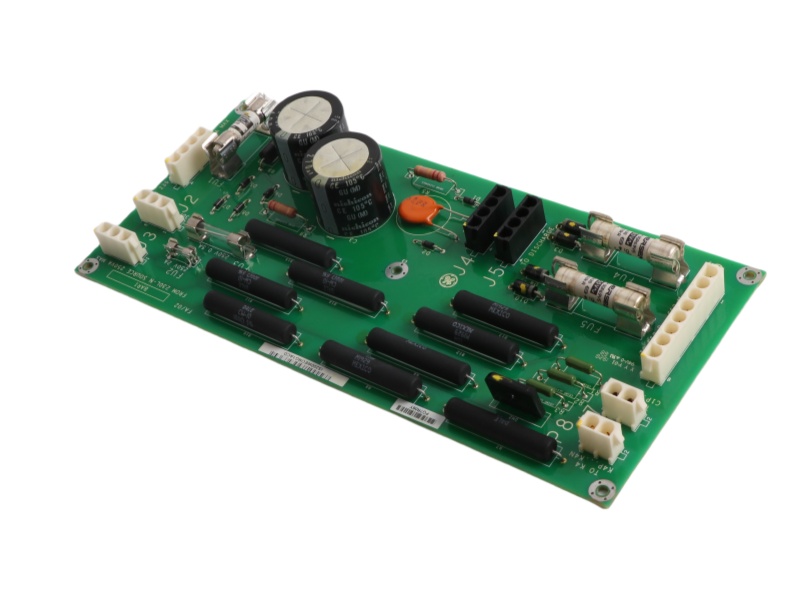

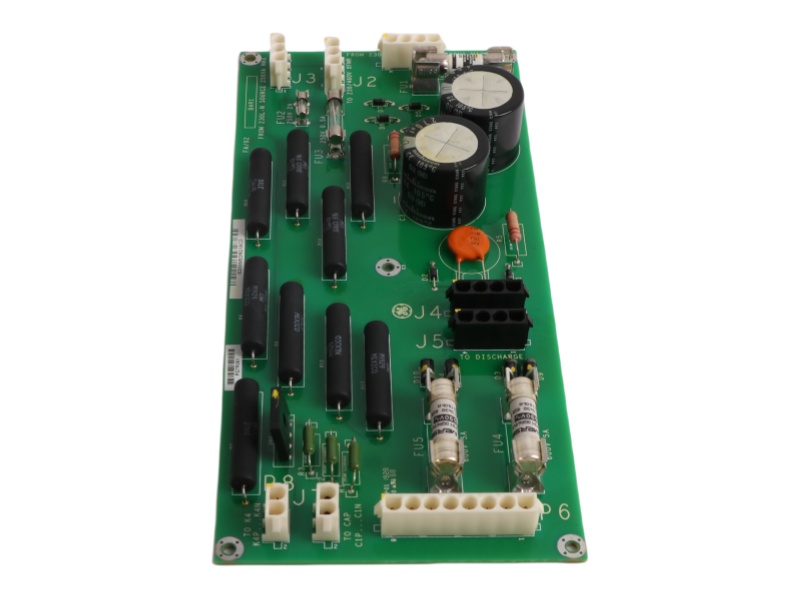

A visual inspection, led by a trained AX Control technician is very informative, however. For starters, immediately noticeable on the base board of this WEOR-abbreviated PCB are two large, drum-style capacitors, labeled C1 and C3 respectively. The only other capacitor that exists the the IS200WEORG1A printed circuit board GE circuit board's greater assembly is the C2 capacitor, which is affixed to the base WEOR board in close proximity to the two drum-style C1 and C3 capacitors.
All of these specified component parts should be symbolized by the WEOR functional acronym that is included in the IS200WEORG1A individualized product part number. This part number can reveal a slew of important information to the prospective IS200WEORG1A General Electric Mark VIe series board purchaser, including its original manufacturer location, its industry-respected functional acronym, its Mark VIe series grouping, its PCB coating style, and its revision history.
The General Electric IS200WEORG1A PDF PCB's A-rated functional revision is a functional revision as it makes great improvements to the performance specifications and overall functioanlity of the product; without intending to alter its visual or aesthetic configurations.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
