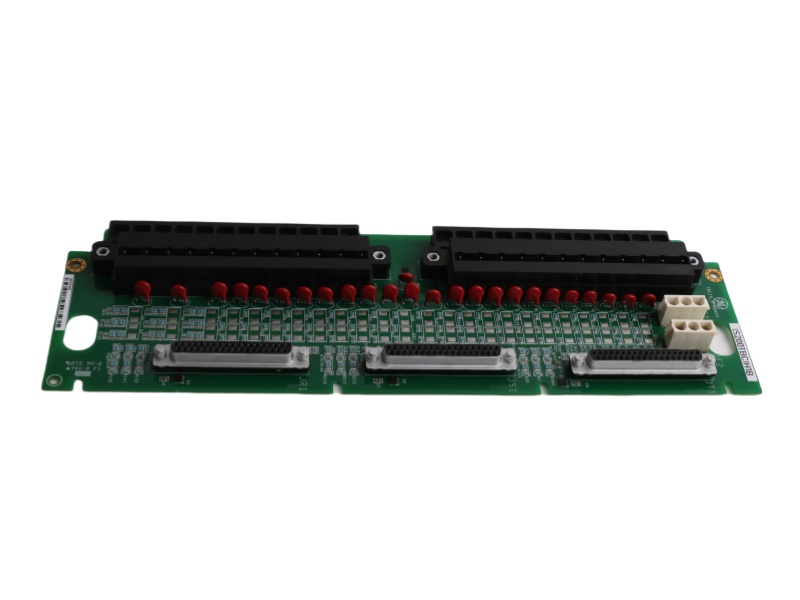

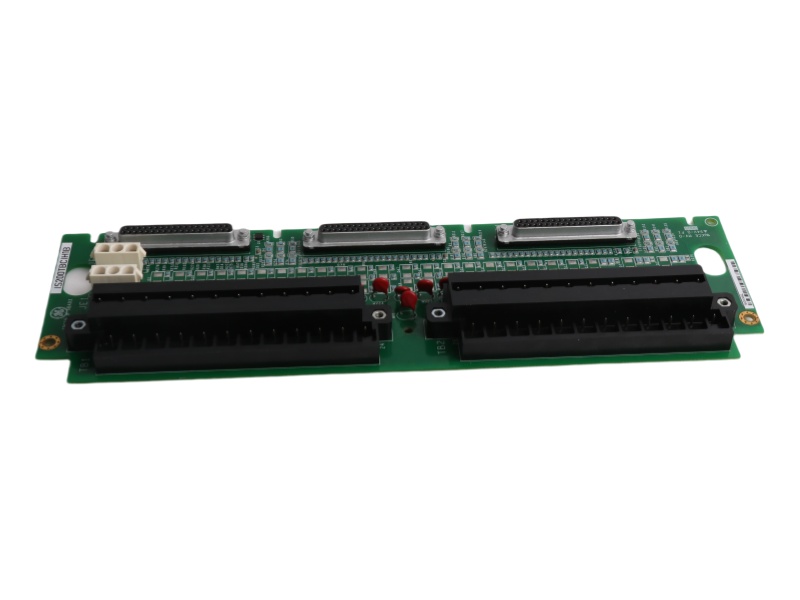

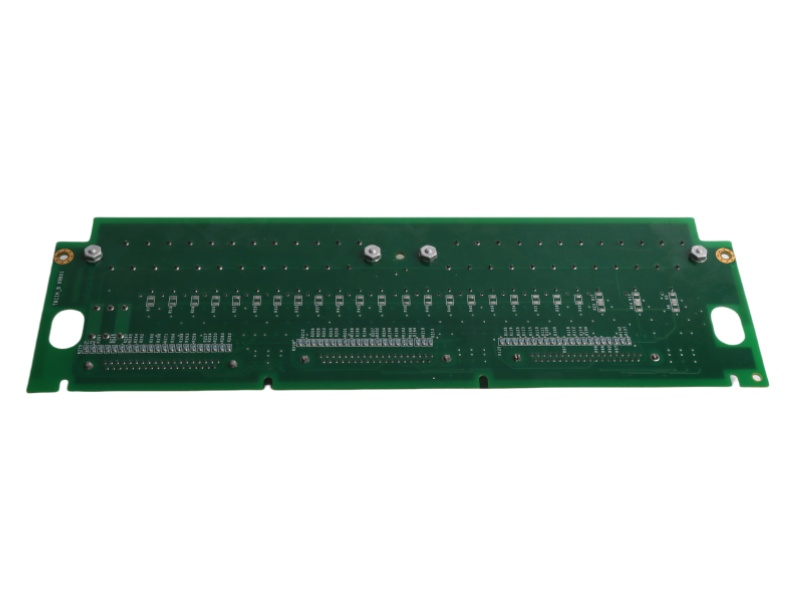

IS200TBCIH1B Product datasheet
|
Model number: |
IS200TBCIH1B |
|
Module Type： |
Terminal Contact Board |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
0.54 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
33x10.2x4.8cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200TBCIH1B Functional Description
The General Electric IS200TBCIH1B TERMINAL CONTACT BOARD is a high-reliability backplane communication interface board designed for Mark VI turbine control systems. It ensures seamless data transfer between I/O modules and system controllers, with dual redundant communication channels and sub-microsecond latency for uninterrupted operation. Built to endure harsh conditions, the Mark VIe General Electric IS200TBCIH1B uses MIL-spec connectors and industrial-grade components to withstand extreme temperatures and vibrations typically found in power plant environments.
Key features include fault tolerance with hot-swappable design, enabling maintenance without system downtime, and LED status indicators for real-time monitoring of channel health and data flow. The GE IS200TBCIH1B Contact Input Terminal Board is ideal for critical applications in combined-cycle plants and peaking power stations where reliability is paramount.
This interface board offers exceptional compatibility with both triple modular redundant (TMR) and simplex control systems. Its optimized signal routing reduces electromagnetic interference, while a conformal-coated PCB protects against moisture and contaminants. Trusted for its military-grade durability and high-speed performance, the TERMINAL CONTACT BOARD IS200TBCIH1B remains a preferred choice for turbine control systems that demand reliable, high-quality data transmission.
