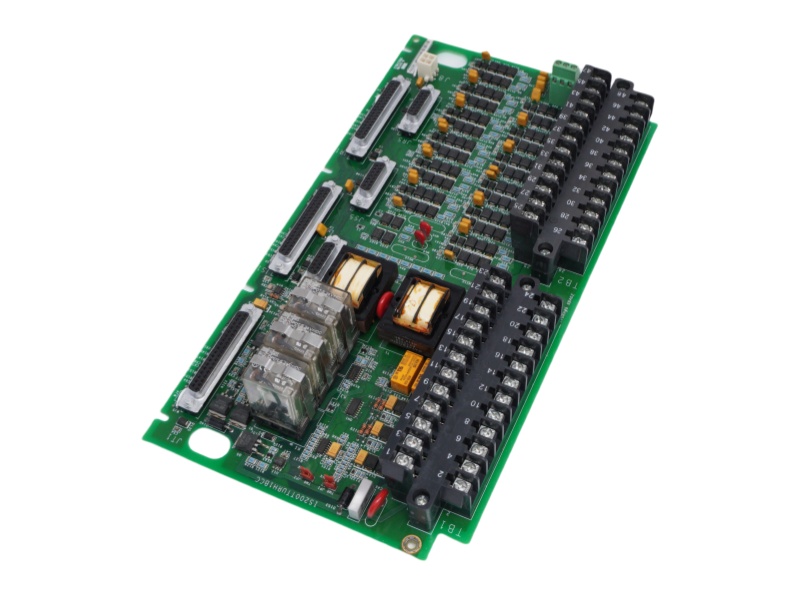

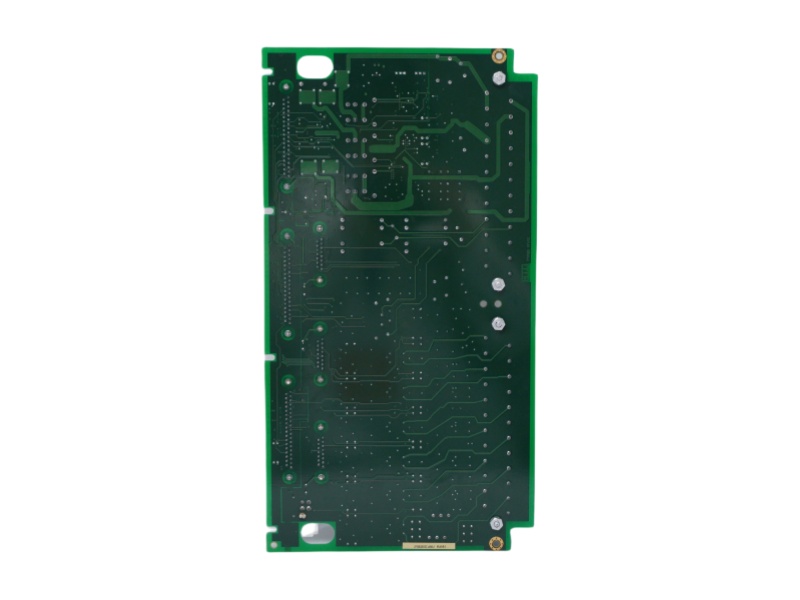

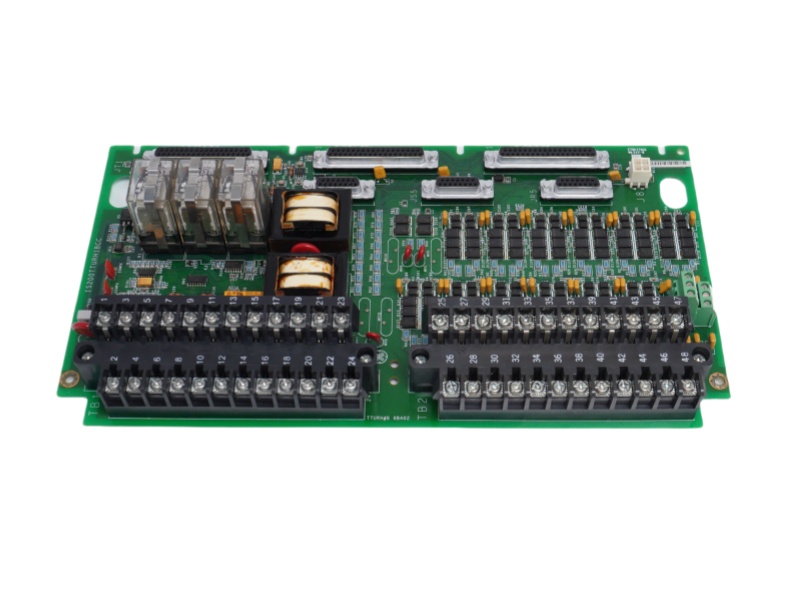

IS200TTSAG1A Product datasheet
|
Model number: |
IS200TTSAG1A |
|
Module Type： |
Turbine Emergency Trip Board |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
Mark VIe |
|
Lead time： |
In Stock |
|
Weight: |
1.42 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
33x17.8x5.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IS200TTSAG1A Functional Description
General Electric IS200TTSAG1A Turbine Emergency Trip Board is a high-performance temperature signal conditioner designed for Mark VIe turbine control systems, providing precise monitoring of critical turbine components. This rugged module supports 8 analog input channels configurable for various thermocouple types (J/K/T/E) or 3-wire RTDs, delivering ±0.1°C accuracy for reliable protection and control. The Mark VIe General Electric IS200TTSAG1A features channel-to-channel isolation and built-in sensor diagnostics, ensuring continuous operation in harsh power plant environments.
The Turbine Emergency Trip Board GE IS200TTSAG1A for its triple modular redundant (TMR) compatibility, allowing seamless integration with safety-critical turbine protection systems. Each channel includes individual LED status indicators for quick fault identification, while the module's DIN-rail mounting design simplifies installation in crowded control panels. The IS200TTSAG1A Trip Servo Interface Module operates reliably across an extended temperature range (-40°C to +70°C), making it suitable for both gas and steam turbine applications.
The module's advanced features include open-circuit detection, lead resistance compensation for RTDs, and automatic cold junction compensation for thermocouples. These capabilities make the General Electric IS200TTSAG1A PDF particularly effective for monitoring bearing temperatures, exhaust gases, and other critical parameters. Its EMI-hardened design and conformal-coated PCB ensure long-term reliability in electrically noisy environments.
The Trip Solenoid Interface Board General Electric IS200TTSAG1A combines laboratory-grade precision with industrial durability. Supported by GE's global service network, this temperature module delivers mission-critical performance for power generation equipment worldwide, with features like front-accessible terminals and hot-swappable replacement minimizing maintenance downtime during turbine operation.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
