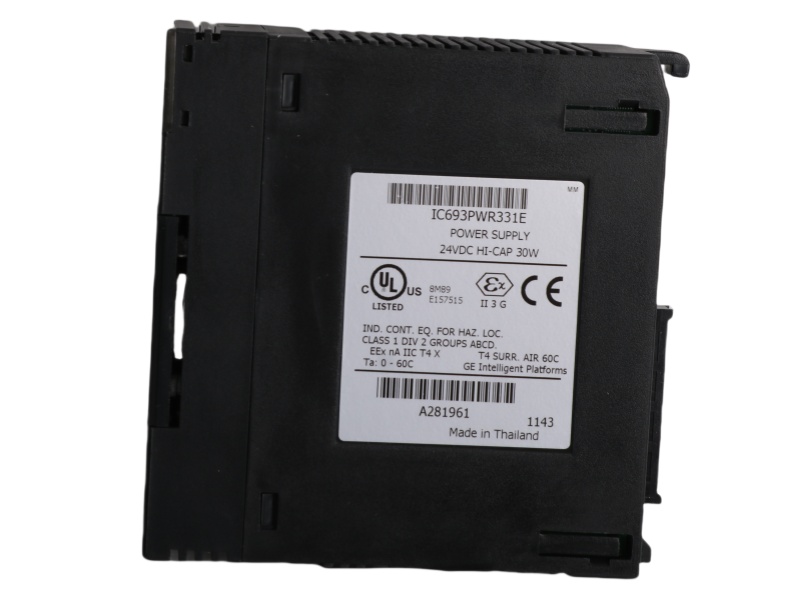

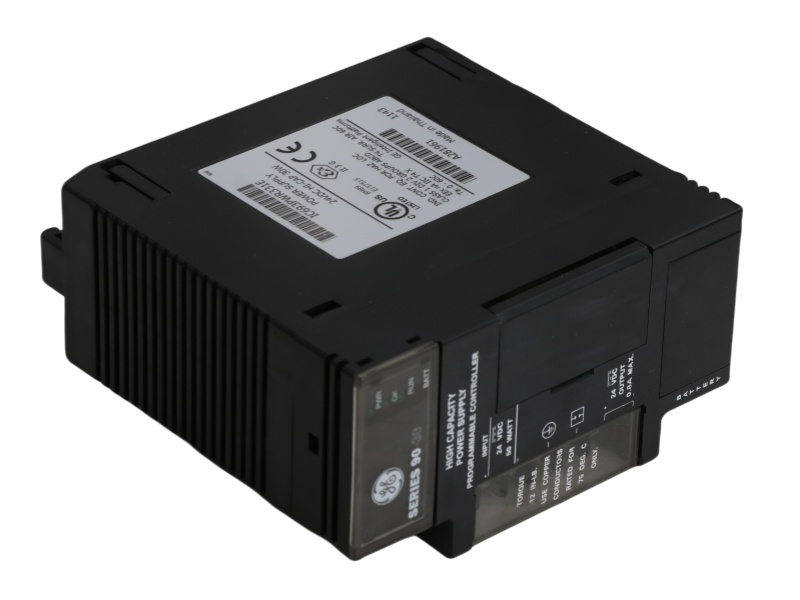

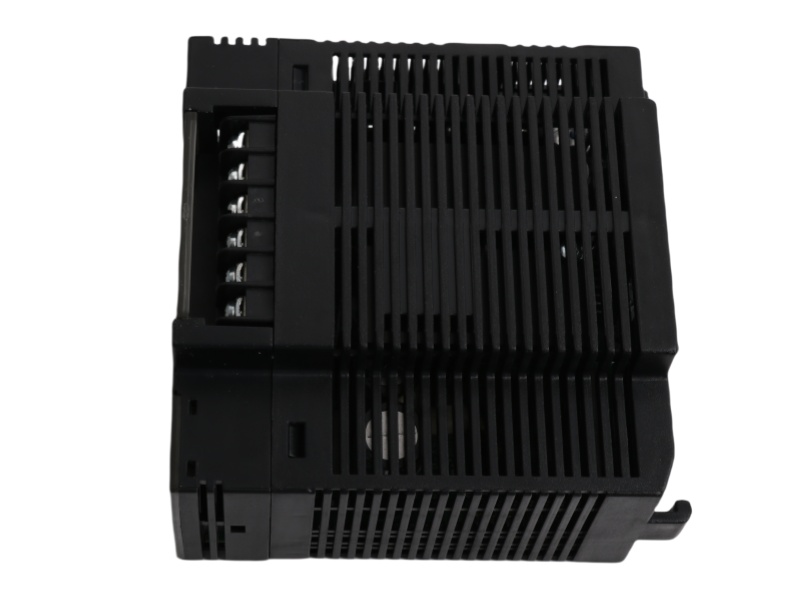

IC693PWR331E Product datasheet
|
Model number: |
IC693PWR331E |
|
Module Type： |
High Capacity Power Supply |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
GE |
|
Lead time： |
In Stock |
|
Weight: |
0.25 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.6x13.4x13.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693PWR331E Functional Description
The Fanuc IC693PWR331E PLC is a high-capacity power supply designed for use in the GE Fanuc Series 90-30 PLC systems. Operating on a nominal 24 VDC input, it delivers up to 30 watts of power and supports a broad input voltage range from 2 VDC to 30 VDC. However, it requires at least 8 VDC to start functioning properly. This wide input flexibility makes the General Electric Fanuc IC693PWR331E highly adaptable to various industrial automation scenarios, especially those needing reliable power from a DC source.
The GE IC693PWR331E POWER SUPPLY MODULE offers three distinct output voltages. The primary output is +5 VDC, capable of delivering up to 3 A. Additionally, it provides two +24 VDC outputs: one for relay modules and one isolated output, typically used for powering internal circuits or external 24 VDC input modules. If the system demands more current from the +5 V output, the entire 30 watts can be allocated to that rail.
To ensure proper power usage, users should carefully calculate the total load of each module in the system. The High Capacity Power Supply GE IC693PWR331E Installation Manual provides detailed specifications for these calculations. It’s also recommended to factor in start-up surge current and include a 10–20% safety margin.
In summary, the General Electric IC693PWR331E High Capacity Power Supply is a robust and reliable power supply unit ideal for high-demand PLC environments. With its efficient design, flexibility, and dependable performance, it continues to be a popular choice for industrial automation systems.
