IC694MDL754 Product datasheet
|
Model number: |
IC694MDL754 |
|
Module Type： |
Discrete Output Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Multilin |
|
Lead time： |
In Stock |
|
Weight: |
0.25 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.6x13.4x13.7cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC694MDL754 Functional Description

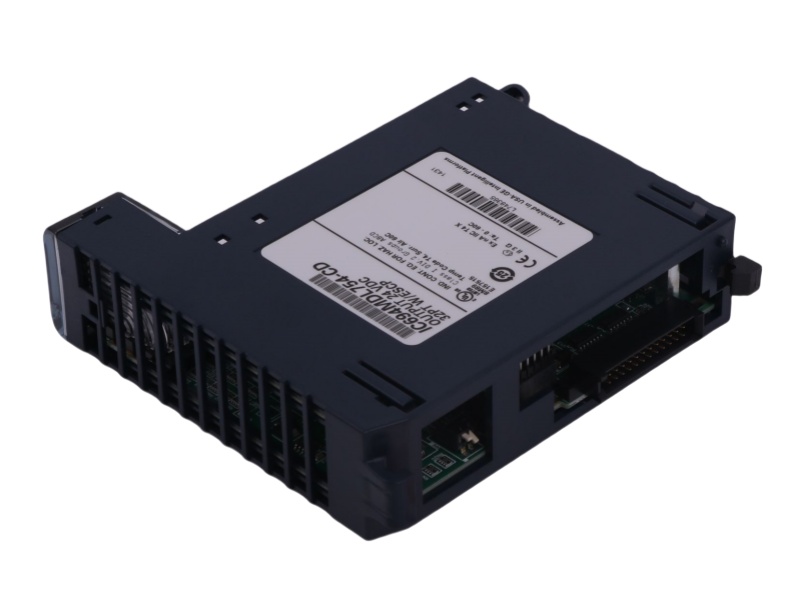

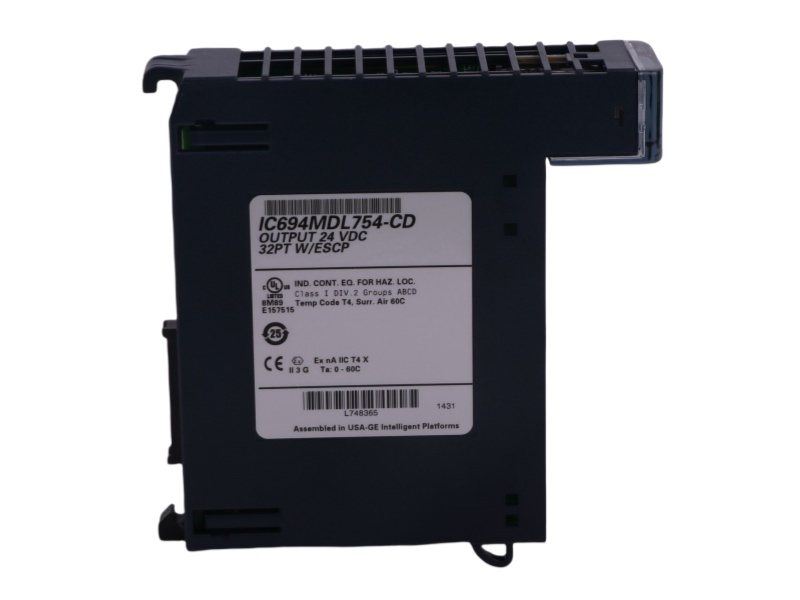

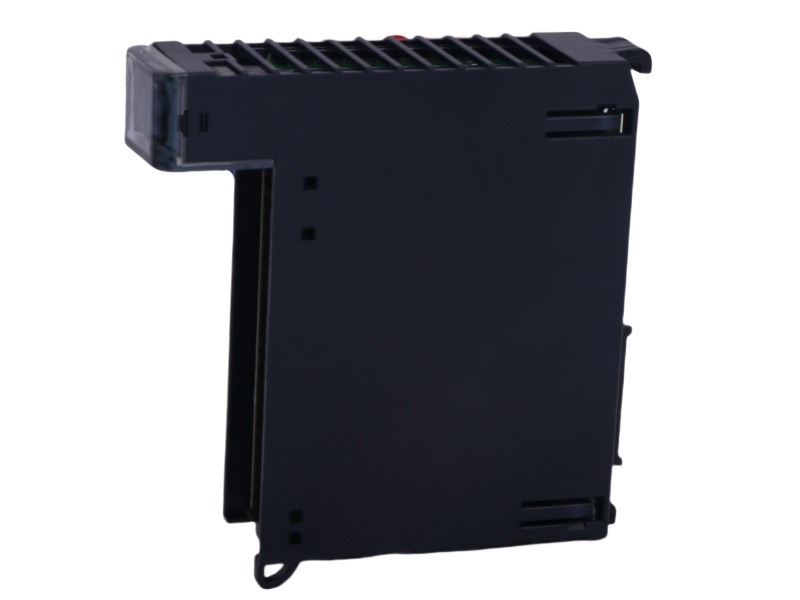

The Positive Logic Discrete Output Module GE IC694MDL754 is a high-density discrete output module designed for the PACSystem RX3i platform, now under Emerson Automation. It features 32 digital output channels organized into two isolated groups of 16 channels each, supporting positive logic wiring. Each channel operates at a voltage range of 10.2 to 30.0 VDC, with a nominal voltage of 12/24 VDC and can supply up to 0.75 amps per point.
This module includes advanced electronic protections such as short-circuit, overcurrent, and overtemperature safeguards, all with auto-recovery capabilities to ensure reliable operation. The Discrete Output Module General Electric IC694MDL754 is compatible with RX3i CPUs running firmware version 2.90 or higher and fits into any vacant slot of a local CPU rack or remote I/O station. It supports installation with box-style or spring-style terminal blocks.
The IC694MDL754 General Electric has a fast response time of 0.5 ms, a maximum inrush current rating of 3 amps for 10 milliseconds, and a backplane current draw of 300 mA at 5 volts. Status LEDs provide individual channel monitoring. This General Electric IC694MDL754 Discrete Output Module is ideal for industrial automation systems requiring precise and reliable discrete output control.
Overall, the General Electric Output Module IC694MDL754 combines high channel density, robust protection, and flexible installation, making it a critical component for efficient industrial control systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
DS200LDCCH1ALA |
GE |
DS200FSAAG1A |
GE |
DS200DTBBG1ABB |
|
GE |
DS200LDCCH1 |
GE |
DS200FCSAG2ACB |
GE |
DS200DSPCH1ADA |
|
GE |
DS200KLDCG1AAA |
GE |
DS200FCSAG2A |
GE |
DS200DSPCH1ADA |
|
GE |
DS200KLDCG1A |
GE |
DS200FCSAG1A |
GE |
DS200DMCBG1AJE |
|
GE |
DS200KLDBG1A |
GE |
DS200FCSAG1ACB |
GE |
DS200DDTBG2ABB |
|
GE |
DS200KLDBG1ABC |
GE |
DS200FCRRG1AKD |
GE |
DS200CTBAG1ADD |
|
GE |
DS200GDPAG1A |
GE |
DS200FCGDH1BAA |
GE |
DS200CPCAG1ABB |
|
GE |
DS200GDPAG1AEB |
GE |
DS200EXPSG1ACB |
GE |
DS200ADMAH1AAC |
|
GE |
DS2020FECNRX010A |
GE |
DS200DTBDG1ABB |
GE |
DS200ADPBG1ABB |
|
GE |
DS200FSAAG1ABA |
GE |
DS200DTBCG1AAA |
GE |
DS200ADGIH1AAA |
Positive Logic Discrete Output Module
A Positive Logic discrete output module is an essential component in industrial automation systems used to control external devices by switching the positive voltage to the load. This type of module operates by sourcing current to the output devices, meaning when an output channel is activated, it supplies positive voltage to power actuators, relays, or other equipment. Positive Logic modules are favored for their straightforward wiring and compatibility with a wide range of sensors and controllers.
These modules typically feature multiple isolated channels, allowing independent control of various outputs while minimizing electrical interference. They often include built-in protections such as short-circuit, overcurrent, and thermal safeguards to enhance reliability and safety. With fast response times and high current capacity per channel, Positive Logic discrete output modules ensure precise and efficient control in complex industrial processes.
