IC693PWR330 Overview

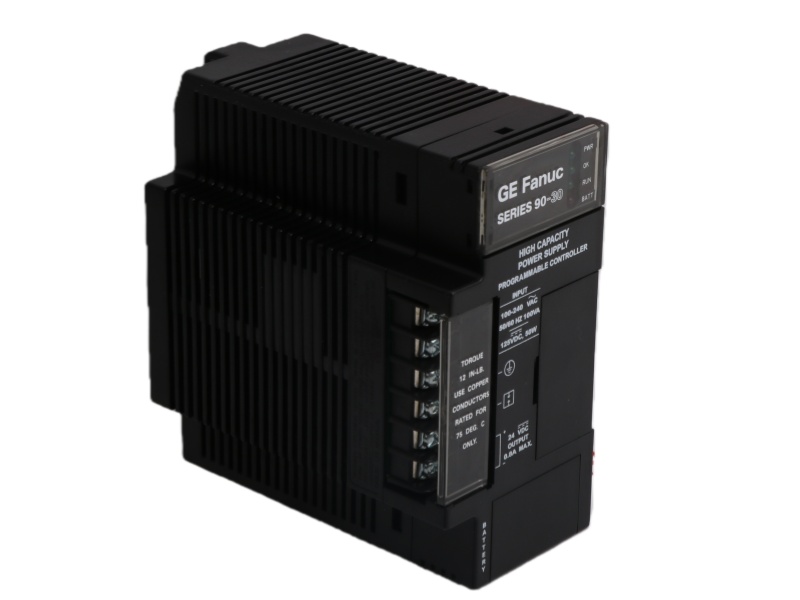

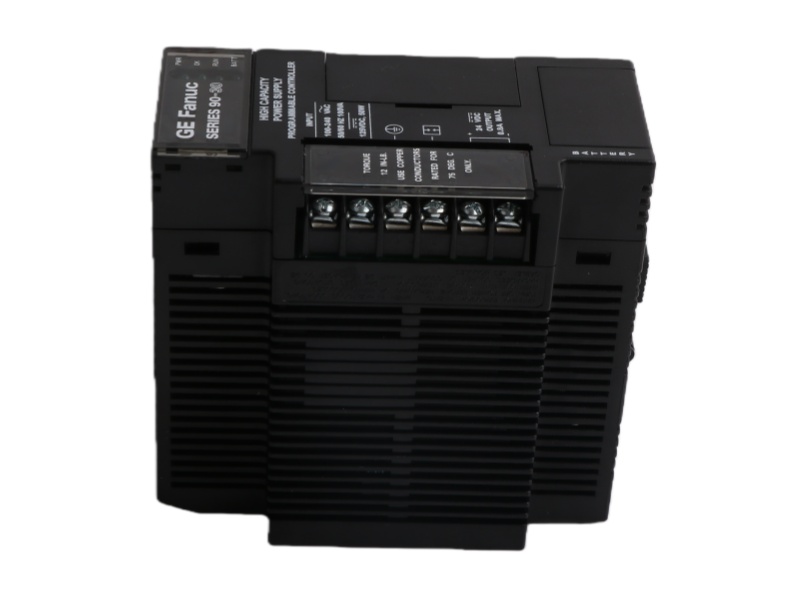

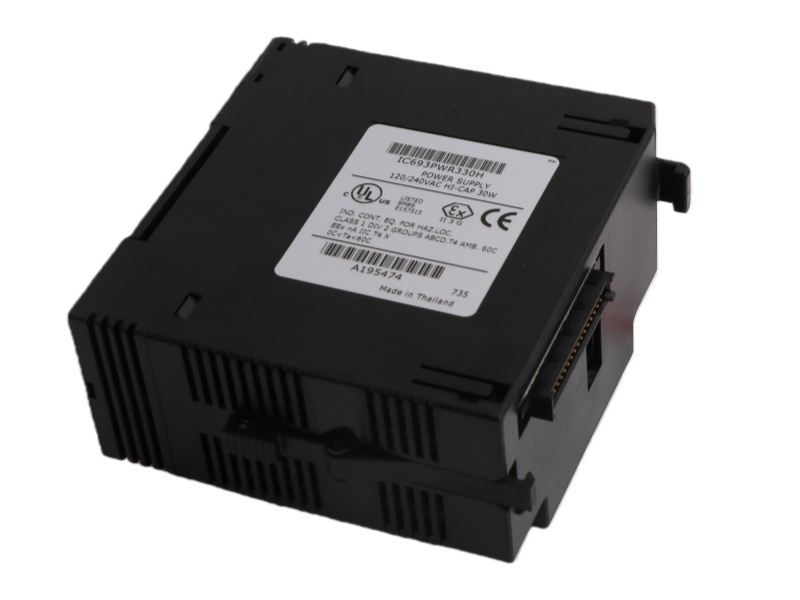

The High Capacity Power Supply  General Electric IC693PWR330 is a high-capacity, 30-watt power supply module for the Series 90-30 PLC platform. It accepts a wide 100-240 VAC input and provides regulated 5VDC and 24VDC outputs for reliable system power.

Features and benefits

• High-Capacity 5VDC Output: Concentrates its full 30W capacity on the +5VDC output to power large PLC racks effectively.

• Triple Voltage Outputs: Provides +5VDC, +24VDC Relay, and isolated +24VDC outputs to meet diverse module and sensor power needs.

• Wide Input Range: Accepts a broad 85-264 VAC or 100-300 VDC input, ensuring compatibility with various global power sources.

• Integrated Diagnostics: Features LED indicators (PWR, OK, RUN, BATT) for clear operational and fault status monitoring.

• Essential Protection: Includes overvoltage and overcurrent protection for the +5VDC output to safeguard connected electronics.

• Industry Compliance: Certified to UL and CE standards, guaranteeing safety and reliability for industrial deployment.

FAQ

Q1: What is the main advantage of the IC693PWR330 power supply?

A1: It can allocate its entire 30W capacity to the +5VDC output, making it ideal for larger PLC racks with high 5V demands.

Q2: How many and what types of outputs does it have?

A2: It provides three outputs: +5VDC, +24VDC Relay power, and an isolated +24VDC.

Q3: Where must it be installed in the PLC rack?

A3: It must be installed in the left-most slot of the Series 90-30 rack.

Q4: What input voltage ranges does it support?

A4: It supports a wide AC input range of 85-264 VAC and a DC input range of 100-300 VDC.

Q5: What communication and safety features does it include?

A5: It features an embedded RS485 communication port and is certified to UL and CE safety standards.
