IC693MDL655 Overview

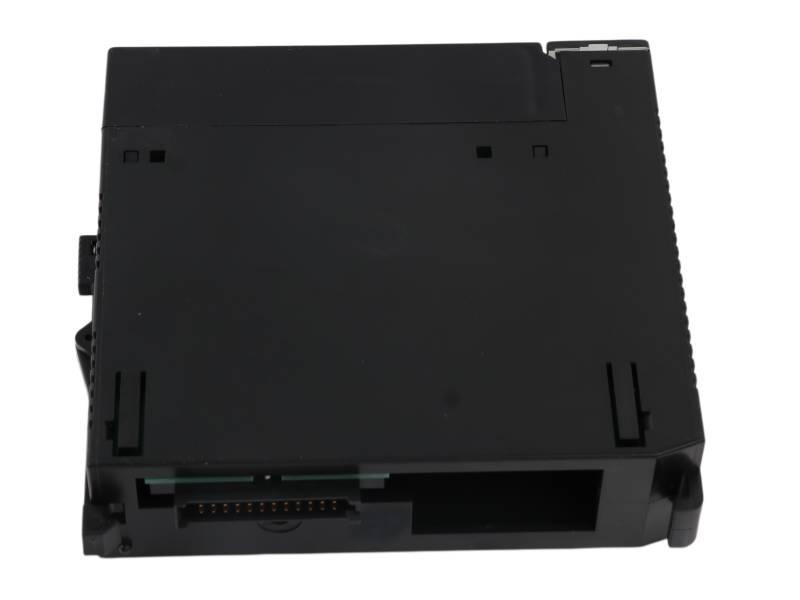

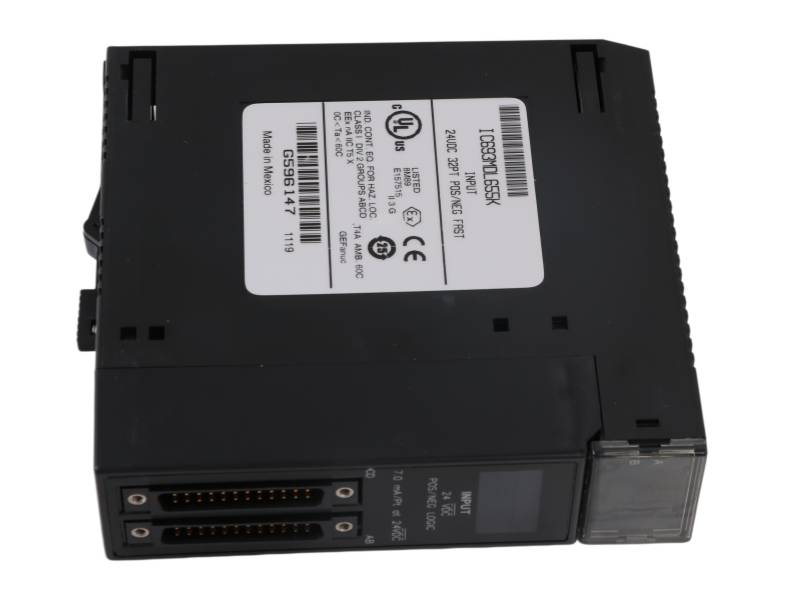

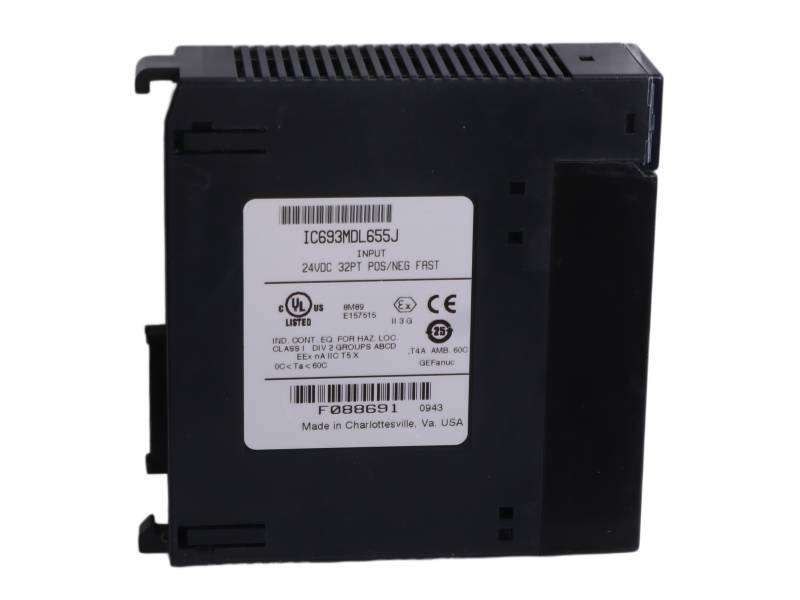

The GE 90-30 Series PLC IC693MDL655 is a 32-point 24 VDC input module for the Series 90-30 PLC. It features positive/negative logic, 7 mA max current, and a 1 ms response time.

Features & Benefits

• 32 Input Channels: Provides high-density monitoring capability for multiple field devices, saving valuable rack space.

• Flexible Logic Wiring: Supports both Positive and Negative logic configurations for versatile system integration.

• 24 VDC Operation: Compatible with standard industrial control voltages for easy implementation.

• Fast Response Time: Features 1 ms nominal response for time-critical discrete input applications.

• Wide Voltage Range: Accepts 0-30 VDC input, ensuring reliable operation with varying signal levels.

• Discontinued Status: Now supported as a legacy replacement part by Emerson Automation for existing Series 90-30 systems.

FAQ

Q1: What is the GE IC693MDL655 module?

A1: It is a 32-point 24 VDC discrete input module for the Series 90-30 PLC system.

Q2: Is this module still in production?

A2: No, it is discontinued by the manufacturer but available as a legacy replacement part.

Q3: What logic types does this module support?

A3: It supports both Positive and Negative logic wiring configurations for flexible integration.

Q4: What is the input voltage range for this module?

A4: It accepts a 0-30 VDC input range with a nominal current of 7 mA per point.

Q5: Who currently supports this discontinued module?

A5: It was originally manufactured by GE Fanuc and is now supported under Emerson Automation.
