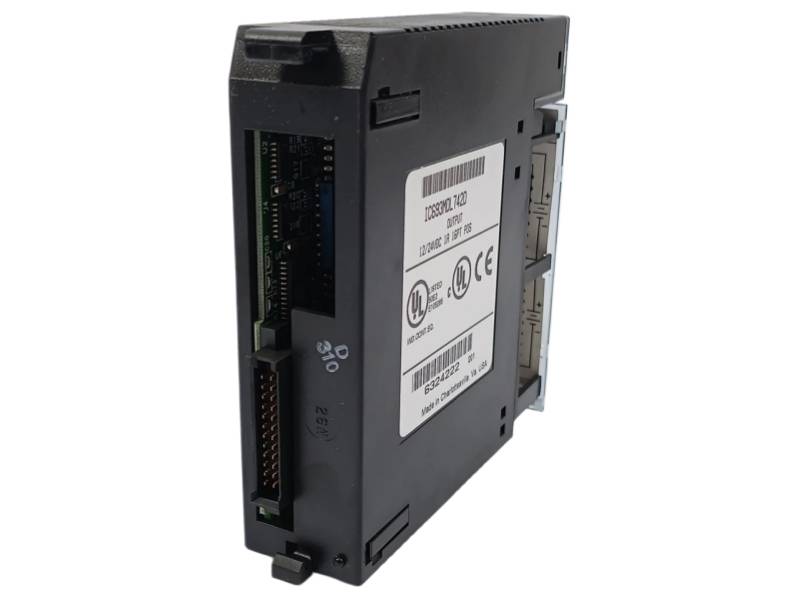

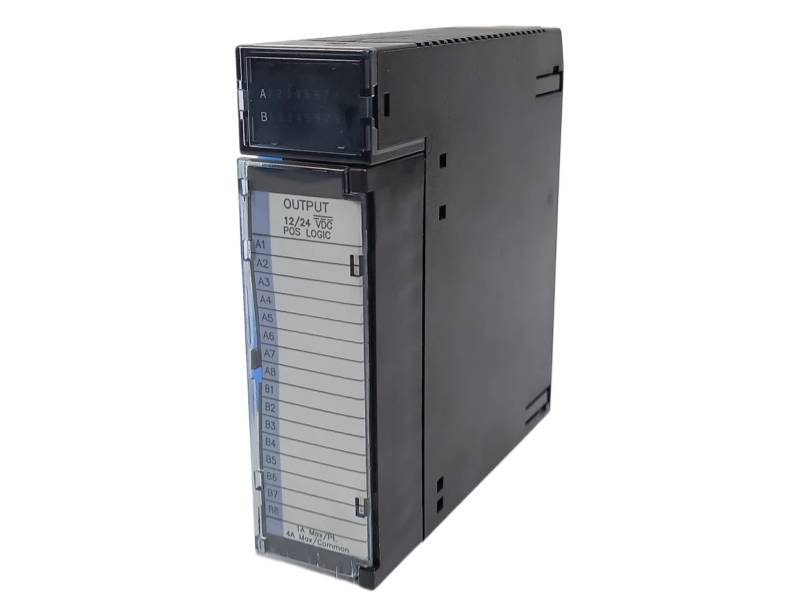

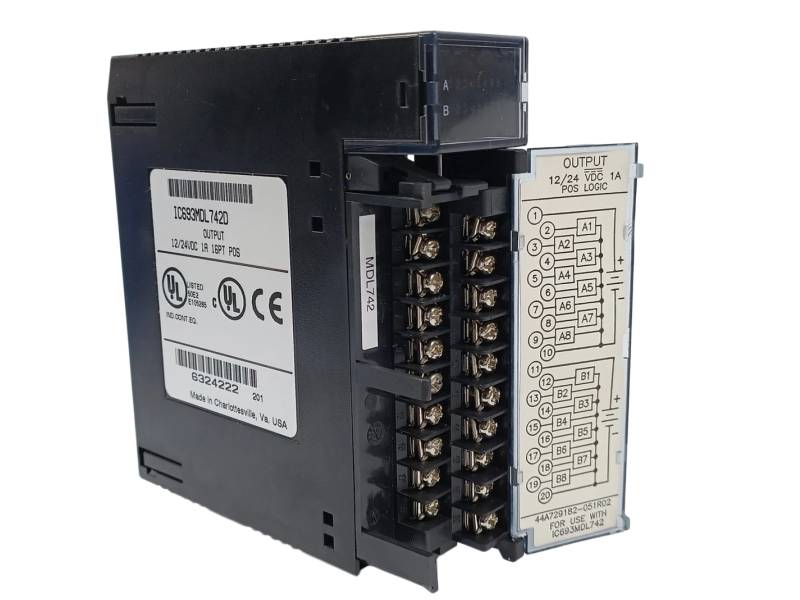

IC693MDL742 Overview

The Output Module IC693MDL742 General Electric is a 16-output 12/24 VDC positive logic module for Series 90-30 PLCs, featuring electronic short circuit protection and 1.0 Amp per point capacity.

Technical Data Summary

• Output Channels: Sixteen (16) discrete outputs configured in two isolated groups of eight channels each.

• Voltage Rating: Operates at 12/24 VDC nominal with a range of +20% to -15%.

• Current Capacity: Supports 1.0 A per point; 4.0 A per group at 50°C, derated to 3.0 A at 60°C.

• Protection: Features embedded Electronic Short Circuit Protection (ESCP) for enhanced reliability.

• Response Time: Maximum 2 milliseconds for both on and off response times.

• Isolation: Provides 1500V field-to-logic isolation and 500V isolation between groups.

FAQ

Q1: What is the primary function of the IC693MDL742 module?

A1: It is a discrete output module with Electronic Short Circuit Protection (ESCP) for the Series 90-30 PLC platform.

Q2: How does the Electronic Short Circuit Protection (ESCP) work?

A2: It monitors the common signal of each group. Upon detecting a short circuit, a red "F" LED lights up and the affected group's outputs are switched off to protect the board.

Q3: What are the output current ratings for this module?

A3: It provides 1.0 Amp per point, with 4.0 Amps per group at 50°C and 3.0 Amps per group at 60°C.

Q4: How is the short circuit protection reset after activation?

A4: The 12-24 VDC module power supply must be removed and reapplied to reset the protection circuit.

Q5: What types of loads can this module control?

A5: It can energize loads such as motor starters, solenoid-actuated devices, indicating lamps, and relays.
