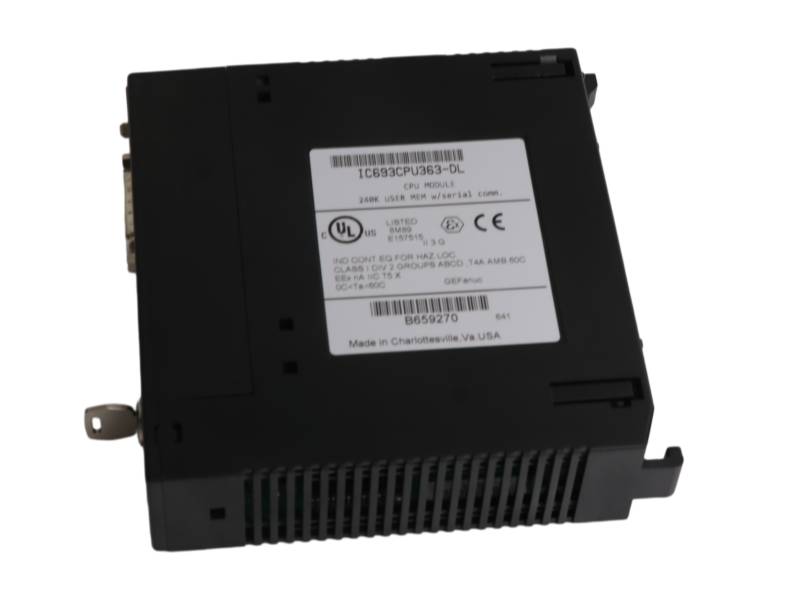

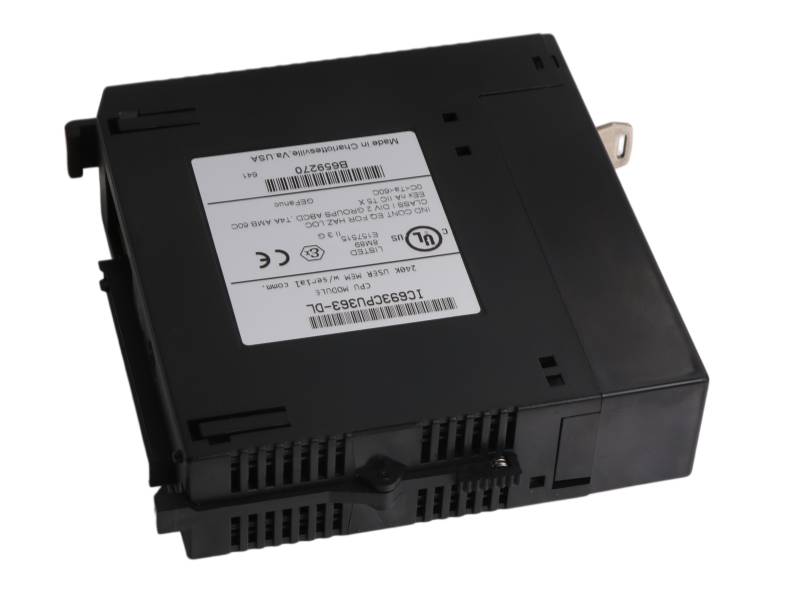

IC693CPU363-DL Overview

The IC693CPU363-DL CPU MODULE General Electric is a high-performance Series 90-30 processor with 240KB memory, 25 MHz speed, and dual serial ports for RS232/485 communication.

Technical Data Summary

• Processor Speed: Operates at 25 MHz using an 80386EX microprocessor for reliable control.

• Memory Capacity: Features 240KB of user memory, utilizing both RAM and Flash storage types.

• Scan Performance: Delivers a typical scan rate of 0.22 ms per 1K of Boolean logic for fast processing.

• Communication Ports: Includes three serial ports supporting RS232 and RS485 communication standards.

• I/O Capacity: Supports up to 2048 discrete inputs and 2048 discrete outputs for extensive applications.

• Power Requirements: Draws 890 mA from the +5 VDC backplane supply during operation.

FAQ

Q1: What is the primary function of the IC693CPU363?

A1: It is the central processing unit for the Series 90-30 PLC, executing user programs and managing communications with HMIs, SCADA, and other devices.

Q2: What processor and speed does this CPU use?

A2: It features an 80386EX microprocessor with a clock speed of 25 MHz and a typical scan rate of 0.22 ms per 1K of Boolean logic.

Q3: How many communication ports are available?

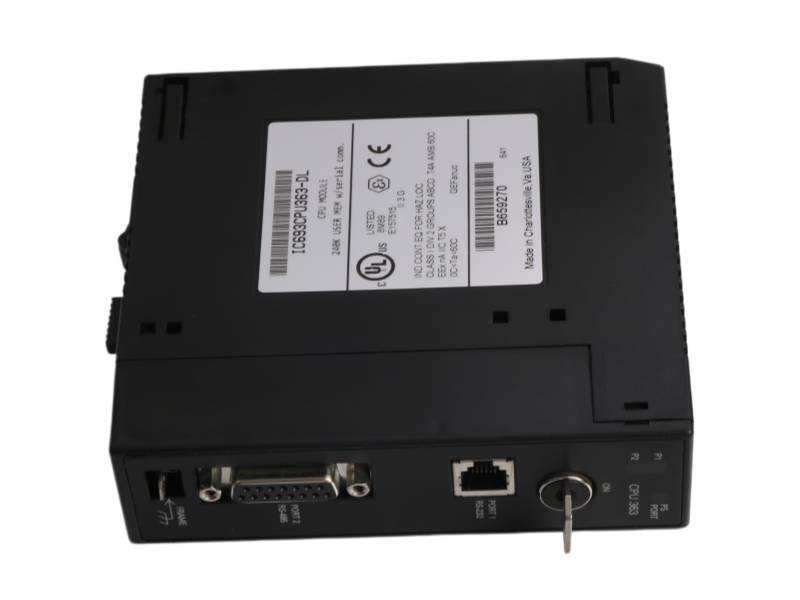

A3: It has three serial ports: two on the module (RJ45 and 15-pin sub-D) supporting RS232/RS485, and one on the power supply for SNP/SNPX protocols.

Q4: What is the memory capacity and type?

A4: It has 240KB of user memory partitioned for registers, plus Flash memory for storing the CPU firmware.

Q5: How many I/O baseplates can this CPU support?

A5: It can handle up to eight baseplates total, including one local baseplate and up to seven remote or distributed I/O racks.
