IC670CHS003 Product datasheet
|
Model number: |
IC670CHS003 |
|
Module Type： |
Terminal Block |
|
Manufacture: |
General Electric |
|
Condition： |
Brand New |
|
Range of Product: |
FANUC |
|
Lead time： |
In Stock |
|
Weight: |
0.24 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
5.4x8.5x8cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC670CHS003 Functional Description

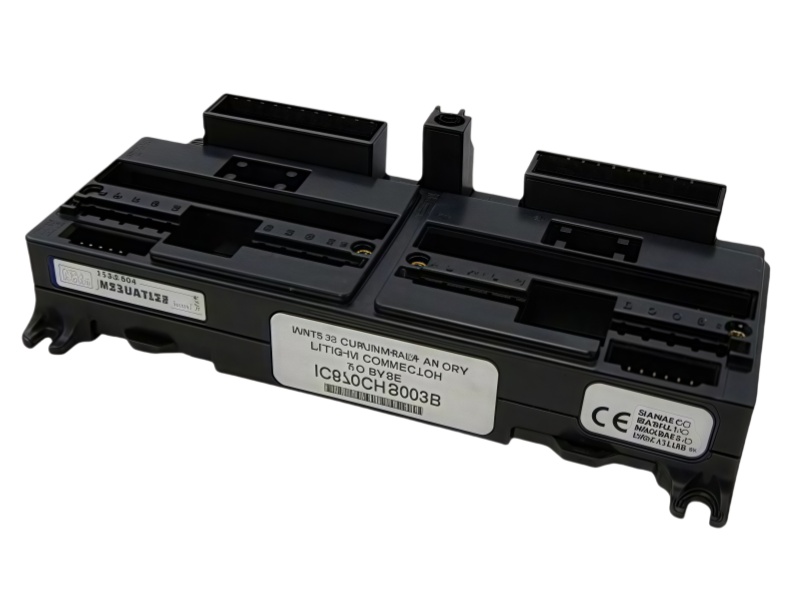

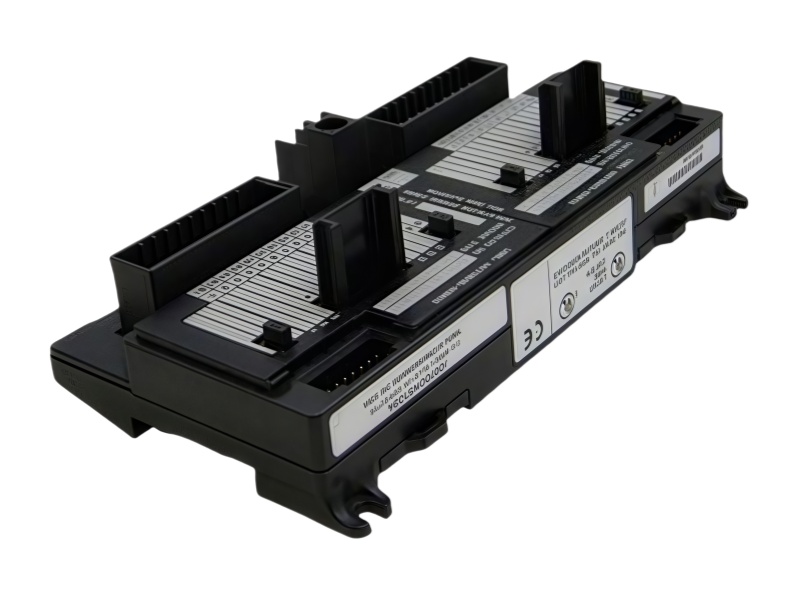

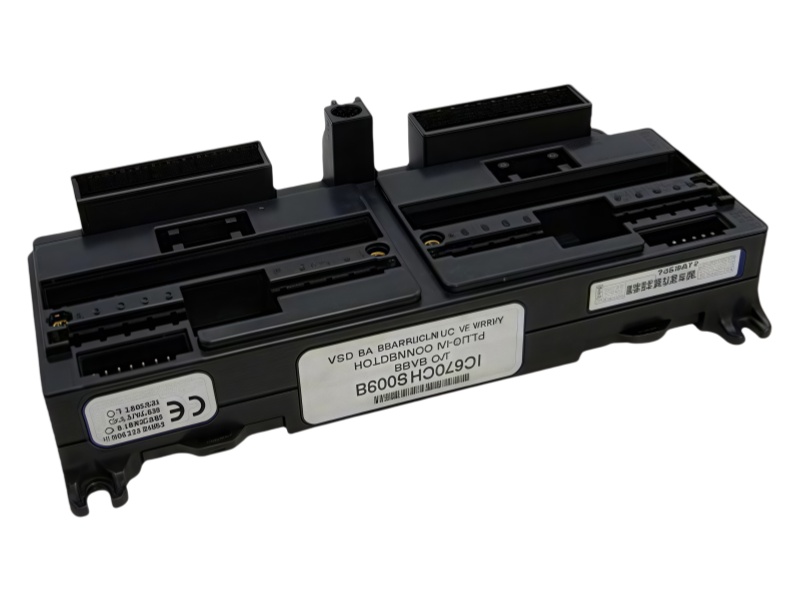

General Electric IC670CHS003 Terminal Block is a specialized I/O Terminal Block with Connectors designed for secure, high-density wiring in GE's Field Control systems. This robust component features two keyed 20-pin male connectors (AMP 178289-8) that prevent incorrect insertion while supporting wire gauges from 16-24 AWG (0.20-1.42mm²).
The Terminal Block IC670CHS003 GE maintains all critical functions of standard terminal blocks - including vibration-resistant screw mounting and field-wire preservation during module changes - while adding connectorized convenience. Its compatible AMP D-3000 series contacts (175217-5/175218-5) ensure reliable connections, available in kit form as GE's IC670ACC003 (excluding crimping tools).
With the FANUC IC670CHS003 General Electric, installers benefit from dual-module capacity on a single block, combined with the reliability of industrial-grade connectors. The solution eliminates traditional terminal screw challenges while maintaining the backplane communication integrity expected from GE's Field Control architecture.
The General Electric IC670CHS003 PDF represents an optimal balance between modular flexibility and connection security. Its design is particularly valuable in applications requiring frequent module changes or where vibration could compromise screw-terminal integrity.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693CPU350 |
GE |
IS210WETAH1A |
GE |
IS200VAICH1DAA |
|
GE |
IC693CPU351 |
GE |
IS215WEMAH1A |
GE |
IS200MVRBH1ACC |
|
GE |
IC693MDL940 |
GE |
IS215WEMAH1B |
GE |
IS220PAOCH1BE |
|
GE |
IC670ALG630 |
GE |
IS200SRTDH2ACB |
GE |
IS420ESWBH2A |
|
GE |
IC670MDL640 |
GE |
IS200SRLYH2AAA |
GE |
IS220PDIAH1A |
|
GE |
IC670MDL930 |
GE |
IS220PRTDH1A |
GE |
IS220PAOCH1A |
|
GE |
IC670GBI002 |
GE |
IS220YDIAS1AK |
GE |
IS215VPROH1BE |
|
GE |
IC670CHS002 |
GE |
IS200TBAIS1CED |
GE |
IS215VPROH1BH |
|
GE |
IC670CHS003 |
GE |
IS200TRLYS1BGG |
GE |
IS200VAICH1DBC |
|
GE |
IS210WETBH1A |
GE |
IS200VAICH1D |
GE |
IS200VAICH1DAB |
I/O Terminal Block with Connectors
I/O Terminal Blocks are generic wiring bases that provide module mounting, backplane communications, and terminals for user connections. Two modules can be installed on one terminal block. Modules screw onto the terminal block for vibration resistance. Modules can be removed without disturbing field wiring.
The I/O Terminal Block with Connectors (catalog number IC670CHS003) has two 20-pin male connectors for I/O wiring. The mating connector is Amp part number 178289–8. The connectors are keyed to prevent incorrect insertion. Any tin-plated contact in the AMP D–3000 series can be used with the connector (Amp part number 1–175217–5 for high contact force receptacle for 20–24 gauge (0.20–0.56mm2) wires), 1–175218–5 for high contact force receptacle for 16–20 gauge (0.56–1.42mm2)). A kit containing two mating connector housings and contacts is available as GE Fanuc part number IC670ACC003. A crimping tool is not provided.
