IC200CBL230B Overview

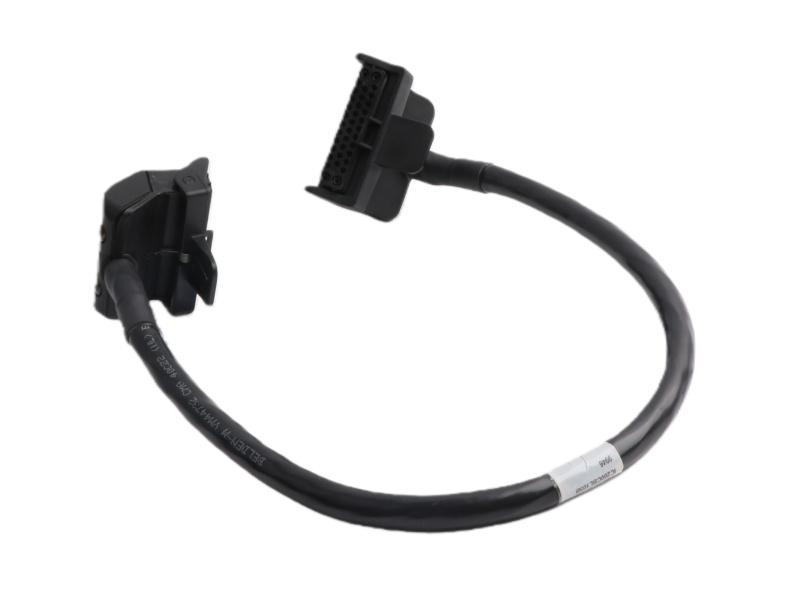

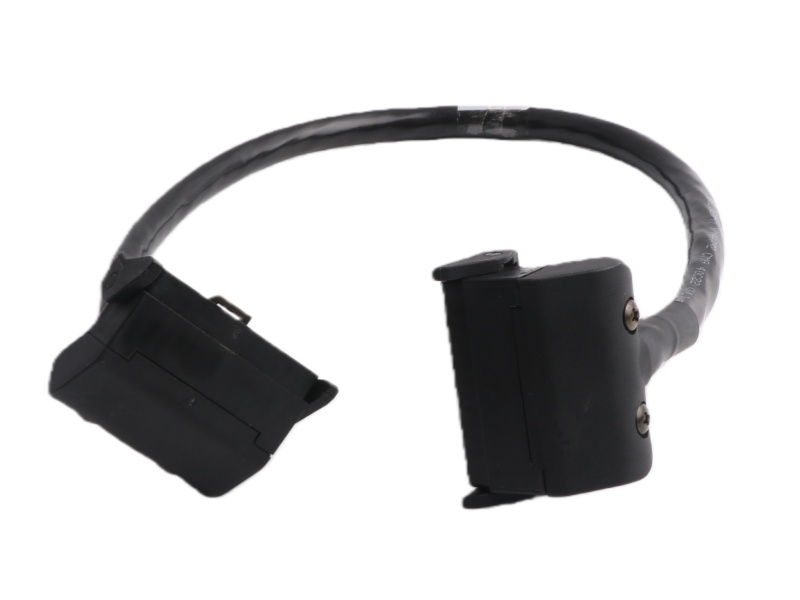

The General Electric IC200CBL230B CONNECTORS CABLE is a 30 cm (approximately 11.8 in) ribbon cable assembly designed to connect a 90-30 Series CPU to VersaPoint I/O modules in distributed control applications.

Technical Data Summary

• Type: A 0.3-meter prewired cable for the GE VersaMax System.

• Connectors: One end for the power supply, the other for the CPU/baseplate.

• Electrical Rating: Handles up to 60V DC and 2A per conductor.

• Construction: Uses unshielded 22-24 AWG wire.

• Durability: Operates from -20°C to 70°C with a bending radius ≥25 mm.

FAQ

Q1: What type of cable is the IC200CBL230B?

A1: It is a 0.3-meter (30 cm) prewired cable designed for use within the GE VersaMax control system.

Q2: What is the electrical current rating of this cable?

A2: It is rated to carry up to 2 Amperes per conductor, with a voltage rating of 60V DC.

Q3: Is this cable shielded?

A3: No, the IC200CBL230B is an unshielded cable assembly.

Q4: What are the operating temperature limits for this cable?

A4: It is designed to operate reliably within a temperature range of -20°C to 70°C.

Q5: What system is the IC200CBL230B compatible with?

A5: It is specifically designed for connecting components in the GE VersaMax PLC system.
