IC660BBD024 Overview

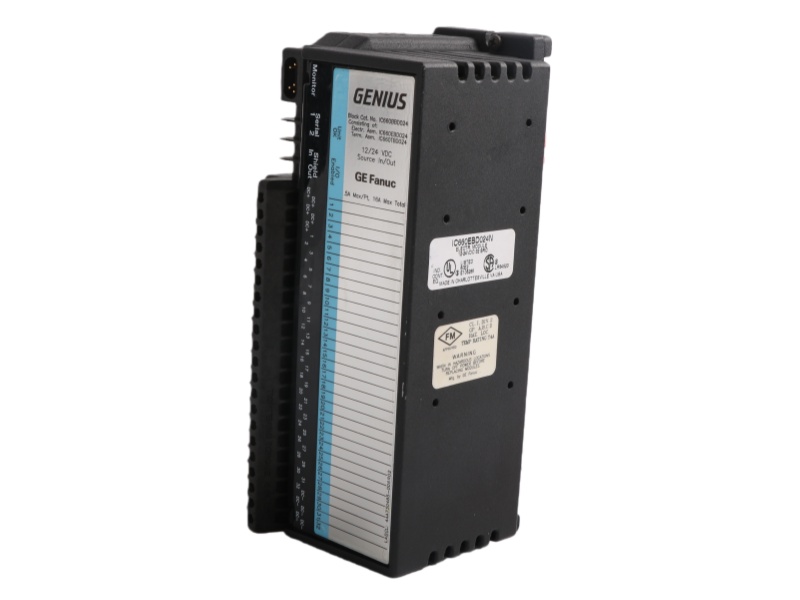

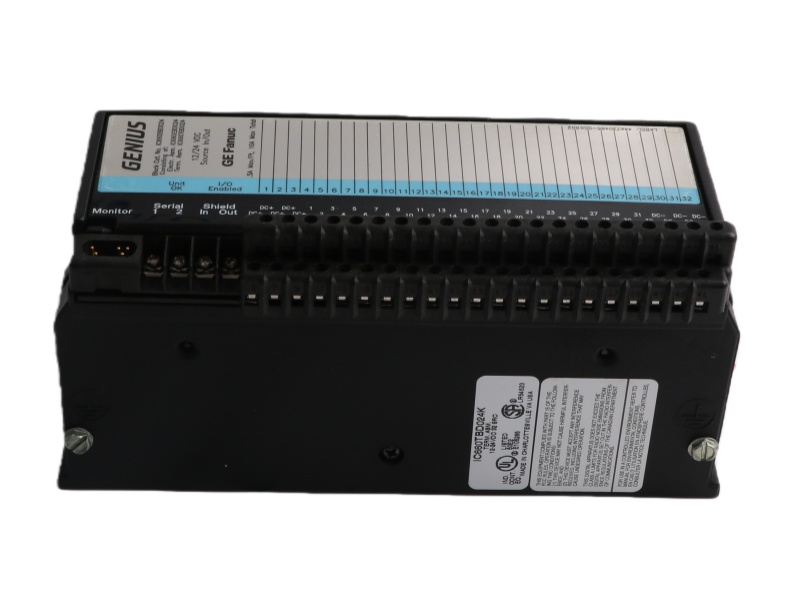

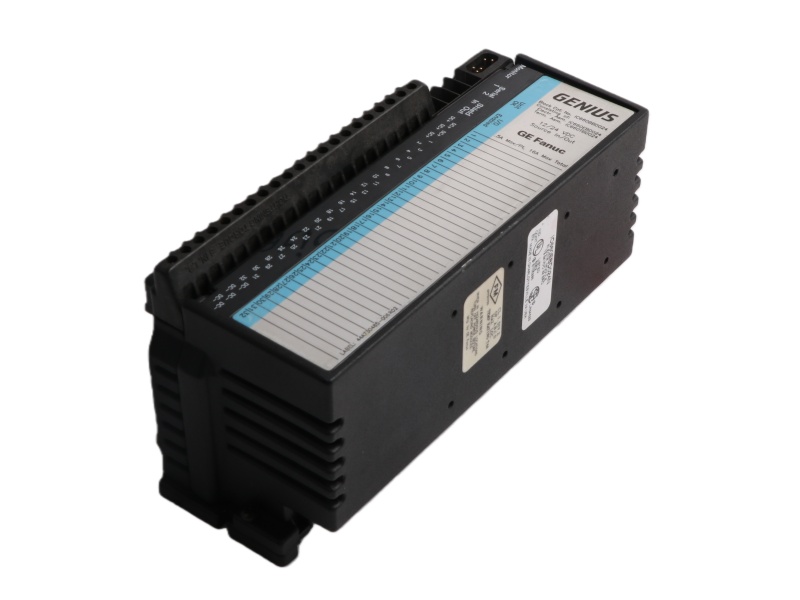

The I/O MODULE IC660BBD024 GE is an intelligent 32-point I/O block supporting Genius Bus protocol. Each of its 24VDC channels is individually configurable as an input or a 0.5A output, and it features advanced diagnostic capabilities for industrial automation.

High-Resolution Measurement

• Digital Signal Handling: Processes discrete ON/OFF signals with configurable input filtering delays from 1 to 100 milliseconds.

• Configurable I/O: Each of its 32 points can be individually set as a 24VDC input or a 0.5A output channel.

• Standard Diagnostics: Features advanced diagnostics and fault detection for discrete device monitoring and control.

FAQ

Q1: What is the main function of the IC660BBD024 module?

A1: It is a 32-point, discrete I/O block where each channel can be individually configured as a 24VDC input or a 0.5A output.

Q2: What communication protocol does this module use?

A2: It supports the Genius Bus protocol for communication with compatible bus controllers and devices.

Q3: What types of devices can be connected to this I/O block?

A3: It is compatible with 2-wire/3-wire proximity switches, relays, contactors, lamps, and other discrete industrial devices.

Q4: Does the module have built-in diagnostic capabilities?

A4: Yes, it features advanced diagnostics, resettable self-protection circuits, and per-point status LED indicators.

Q5: What is the configurable range for its input signal filtering?

A5: The input filter delay can be configured in multiple steps, ranging from 1 millisecond up to 100 milliseconds.
