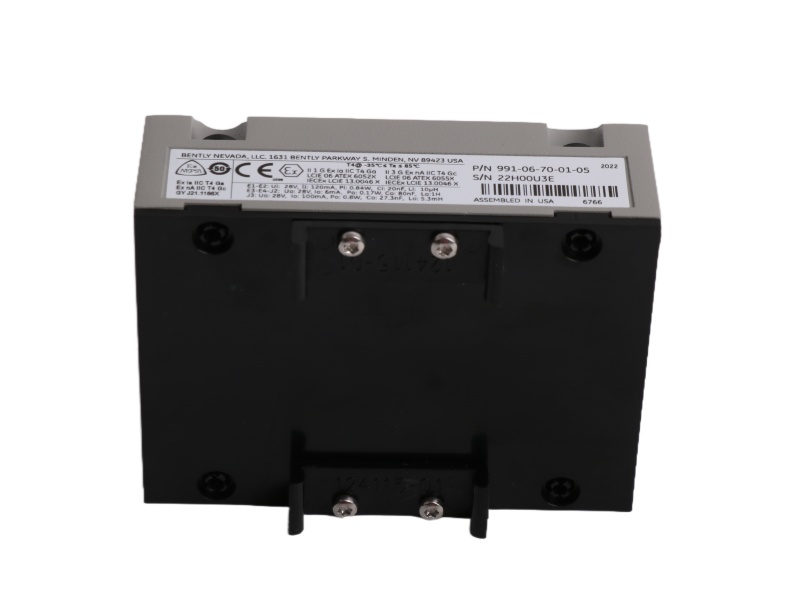

The Thrust Transmitter Bently Nevada 991-06-70-01-05 is designed primarily for OEMs of centrifugal air compressors, small pumps, motors, or fans who require a straightforward 4 to 20 mA proportional axial displacement signal for their machinery control systems. This991-06-70-01-05 Bently DCS systems accepts input from a 3300 NSv proximity probe and its corresponding extension cable, available in 5-meter and 7-meter system lengths, and converts the measurement into an industry-standard signal that can be directly used for machinery protection, alarming, and control logic.

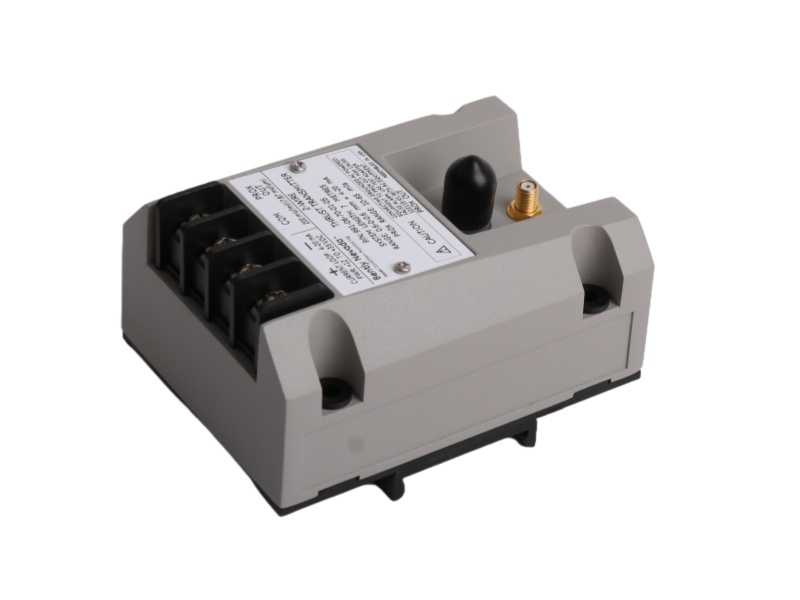

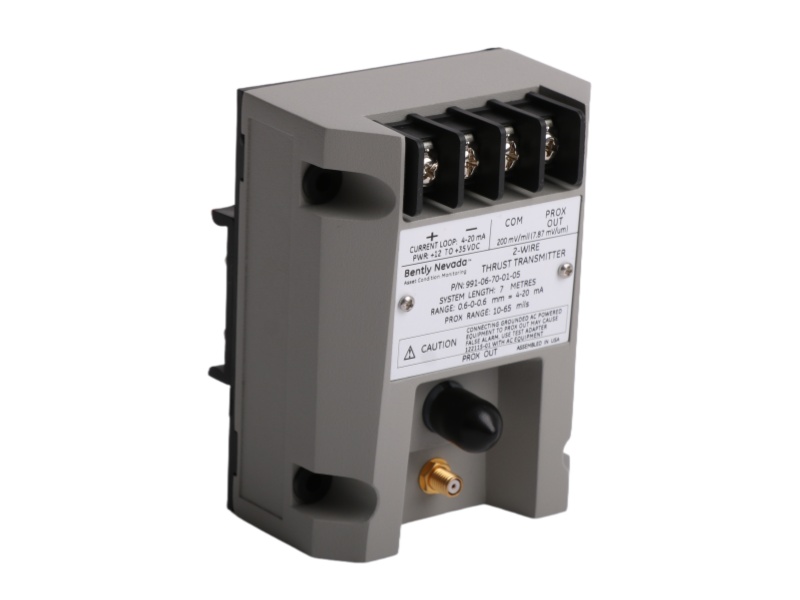

The 991-06-70-01-05 Bently Nevada Thrust Transmitter features an integrated Proximitor Sensor, eliminating the need for an external unit. Its design includes non-isolated “PROX OUT” and “COM” terminals alongside a coaxial connector that provides a dynamic vibration and gap voltage signal output, enabling comprehensive diagnostic capabilities. The unit also incorporates non-interacting zero and span potentiometers located under the transmitter label for simple loop adjustments.

A convenient Test Input pin allows users to quickly verify loop signal output using a variable DC voltage source. Additionally, the 991-06-70-01-05 Bently Nevada 3300 XL 5/8mm Proximitor includes a Power-up Inhibit circuit that prevents signal errors caused by line voltage transients, ensuring accurate and reliable operation from startup.

Manufactured in the USA, the Thrust Transmitter Module 991-06-70-01-05 has a compact form factor and a weight of 0.44 kg, with estimated shipping dimensions of 7.3 cm x 6 cm x 10 cm. This makes it an ideal choice for precise, dependable axial displacement monitoring in a wide range of industrial applications.
