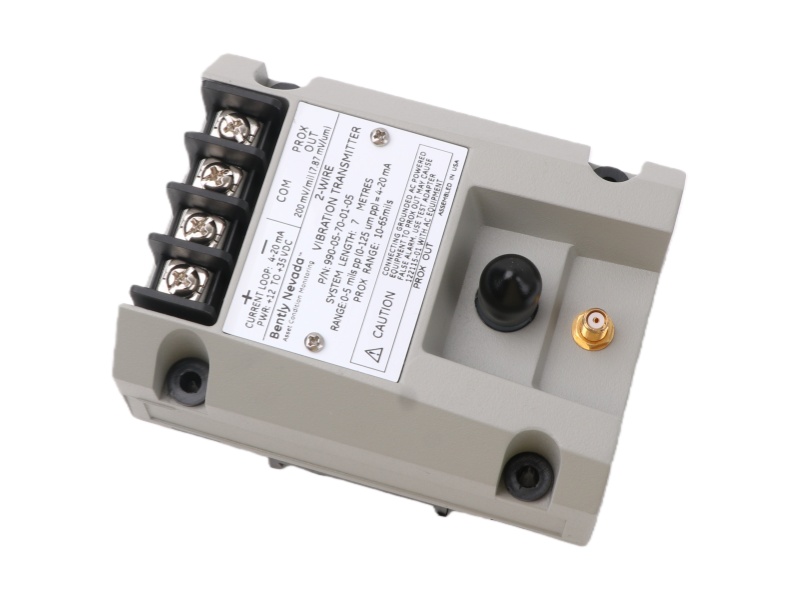

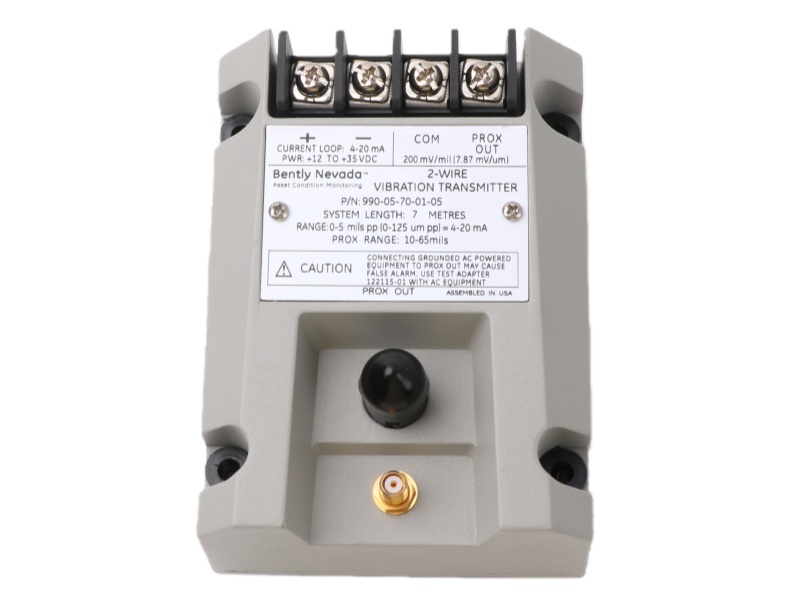

The Bently Nevada 990-05-70-01-CN vibration transmitter provides a 4-20 mA output and a PROX OUT diagnostic signal. It features a 35 mm DIN rail clip, CSA/ATEX hazardous area approvals, and a 7-meter sensing range.

Features and benefits

Dual Output: Combines 4-20 mA loop signal for protection with PROX OUT for diagnostics.

Hazardous Area: Certified for CSA Division 2, ATEX Zone 0/2, and ABS maritime use.

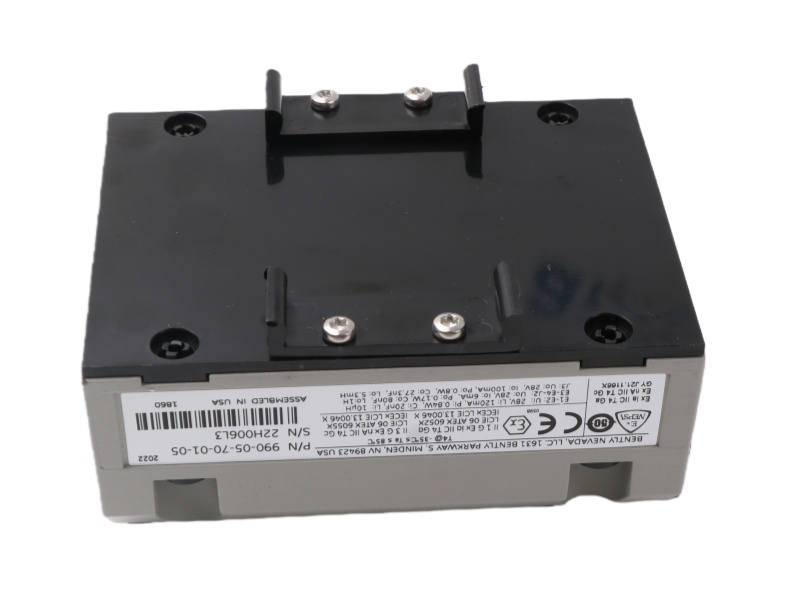

Easy Mounting: Includes 35 mm DIN rail clips for quick installation.

Long Cable: Supports a 7.0-meter (23 ft) cable for flexible sensor placement.

Test Ready: PROX OUT enables direct connection to test equipment for troubleshooting.

Isolation Adapter: Use with the 990/991 adapter ensures safe signal isolation for powered test gear.

FAQ

Q1: What type of product is the Bently Nevada 990-05-70-01-CN?

A1: It is a PROXPAC XL proximity transducer assembly with an integrated 3300 XL Proximitor sensor.

Q2: Does the 990-05-70-01-CN require an extension cable?

A2: No, it is self-contained and eliminates the need for an extension cable between the probe and Proximitor sensor.

Q3: What material is the housing made of?

A3: The housing is made of PPS (Polyphenylene Sulfide) with glass and conductive fibers for strength and ESD dissipation.

Q4: What environmental ratings does it have?

A4: It is rated Type 4X and IP66, suitable for severe industrial environments.

Q5: Can the probe be externally adjusted?

A5: Yes, it supports external probe adjustment, similar to 31000/32000 series housings.
