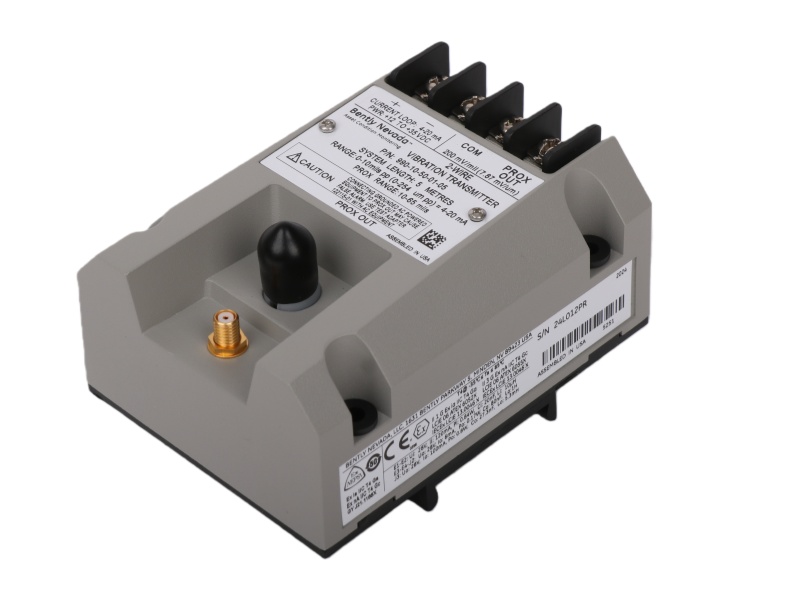

990-10-50-01-01 Bently Nevada Sensor Proximity is a 2-wire loop-powered vibration transmitter, 0–10 mils pp range, 5m cable, DIN-rail mount, CSA Div 2 approved, ideal for OEM machinery control.

Technical Data Summary

Model: 990-10-50-01-01

Range: 0–10 mils pp (0–250 μm pp)

Cable: 5.0 m (16.4 ft)

Mounting: 35 mm DIN rail clips

Approval: CSA Division 2

Output: 4–20 mA proportional vibration signal

Power: Two‑wire loop‑powered

Input: Compatible with 3300 NSv proximity probe

Features: Integrated Proximitor, test input, fault detection, zero/span adjustment

FAQ

Q1: What is the model number of this Bently Nevada vibration transmitter?

A1: The model number is 990-10-50-01-01.

Q2: What is the vibration measurement range of the 990-10-50-01-01?

A2: It measures 0–10 mils pp (0–250 μm pp) peak-to-peak vibration.

Q3: What type of output signal does the 990 transmitter provide?

A3: It provides a 4–20 mA industry-standard proportional vibration signal.

Q4: What approvals and mounting options does this unit have?

A4: It is CSA Division 2 approved and includes 35 mm DIN rail clips for mounting.

Q5: What power and input requirements does the 990-10-50-01-01 have?

A5: It is two-wire loop-powered and accepts input from a 3300 NSv proximity probe.
