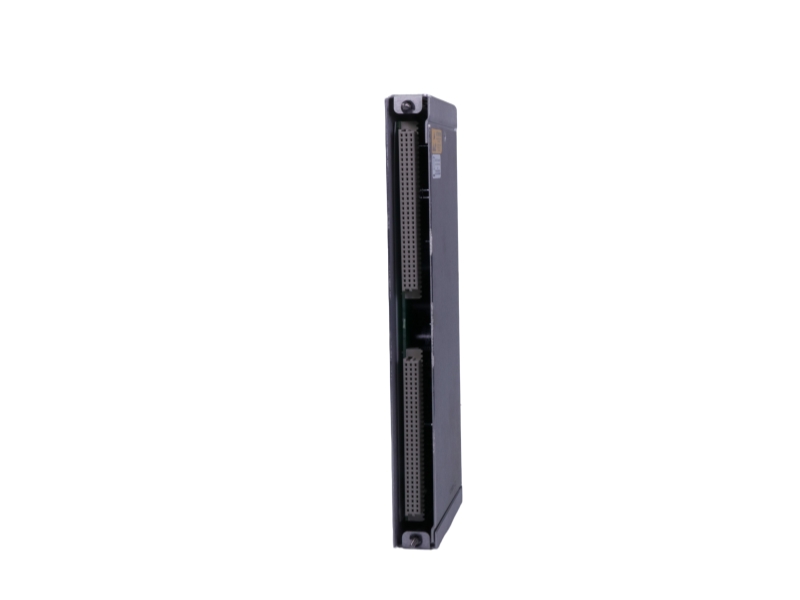

Rear-slot isolated internal-termination I/O module designed for magnetic pickups in the 3500/25 Keyphasor system.

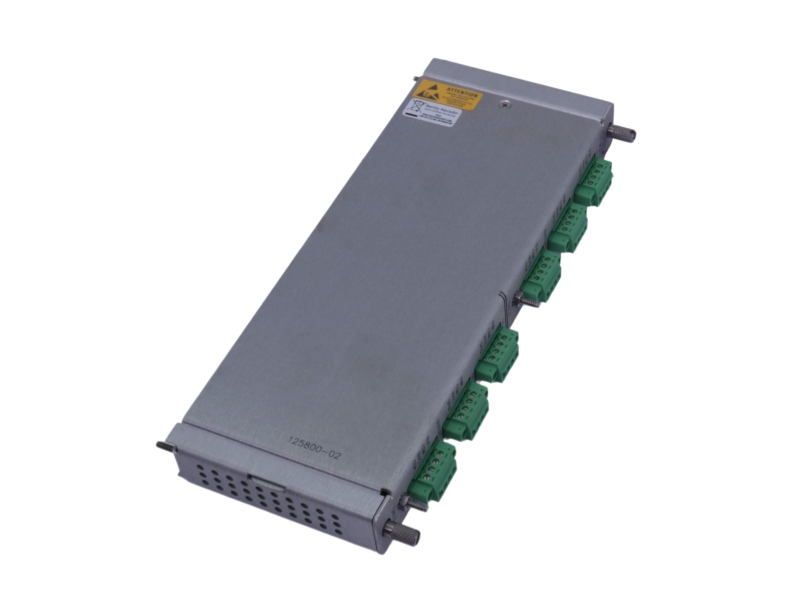

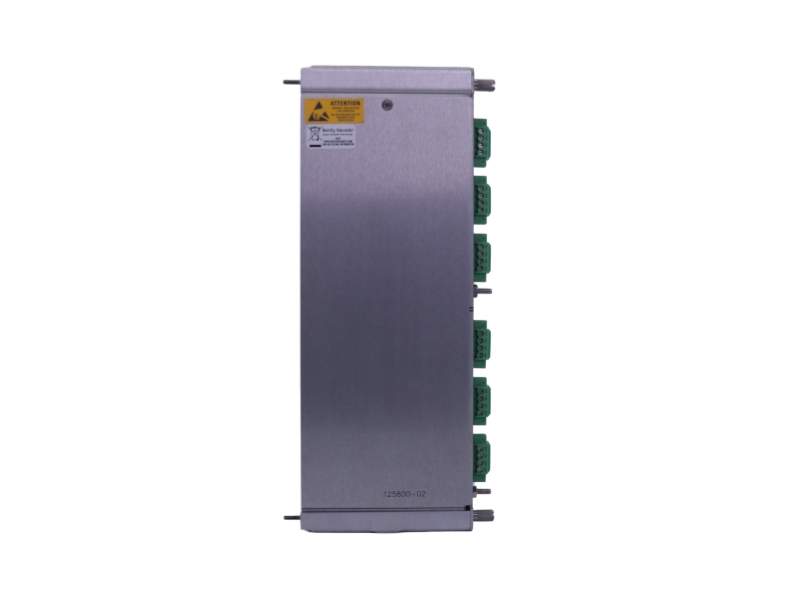

The Bently Nevada 3500/25 125800-02 is the isolated Keyphasor I/O module with internal terminations designed for magnetic pickups. It is specified for use with the 3500/25 Enhanced Keyphasor Module and occupies one full-height rear slot. The associated Keyphasor module accepts up to two transducer signals and supports speed, phase and multiple-event-per-revolution processing. The isolated I/O provides a different input range and introduces a documented phase shift compared with the non-isolated version, so sensor type, speed range, wiring arrangement and exact suffix must be reviewed before installation.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 3500/25 125800-02 |
| Manufacturer Part Number | 125800-02 |
| Product Type | Isolated Keyphasor I/O Module with Internal Terminations |
| Series | 3500/25 Enhanced Keyphasor Module |
| Designed Sensor Type | Magnetic pickups |
| Associated Channels | Up to two transducer signals per Keyphasor module |
| Isolated Input Range | +5 V to -11 V |
| Input Impedance | 21.8 kΩ minimum |
| Frequency Input Range | 0.017 Hz to 20 kHz |
| Passive Pickup Requirement | Shaft speed greater than 200 rpm (3.3 Hz) |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| I/O Module Dimensions | 241.3 x 24.4 x 103.1 mm (H x W x D) |
| I/O Module Weight | 0.46 kg (1.01 lb) |
| Rack Space | One full-height rear slot |
| Country of Origin | USA |
What is 125800-02?
It is the isolated Keyphasor I/O module with internal terminations designed for magnetic pickups.
What input range applies to the isolated I/O?
The official specification states an isolated input range of +5 V to -11 V.
What speed is required for passive magnetic pickups?
The manufacturer specifies shaft speed greater than 200 rpm, or 3.3 Hz.
Can external termination blocks be used?
No. External termination blocks cannot be used with internal-termination I/O modules.
Is it interchangeable with 125800-01?
No automatic interchange should be assumed; 125800-01 is the non-isolated internal-termination version.
What should be verified before wiring?
Confirm magnetic-pickup characteristics, isolation need, speed range, terminals, rack revision and exact part number.
Confirm that the installation requires isolated 125800-02 for magnetic-pickup use. The manufacturer notes that isolated I/O modules add a phase shift compared with non-isolated versions. Do not substitute 125800-01 or an external-termination module without reviewing the sensor, speed range, isolation requirement, terminal arrangement and rack configuration.
