Rear-slot non-isolated internal-termination I/O module for the 3500/25 Enhanced Keyphasor monitoring function.

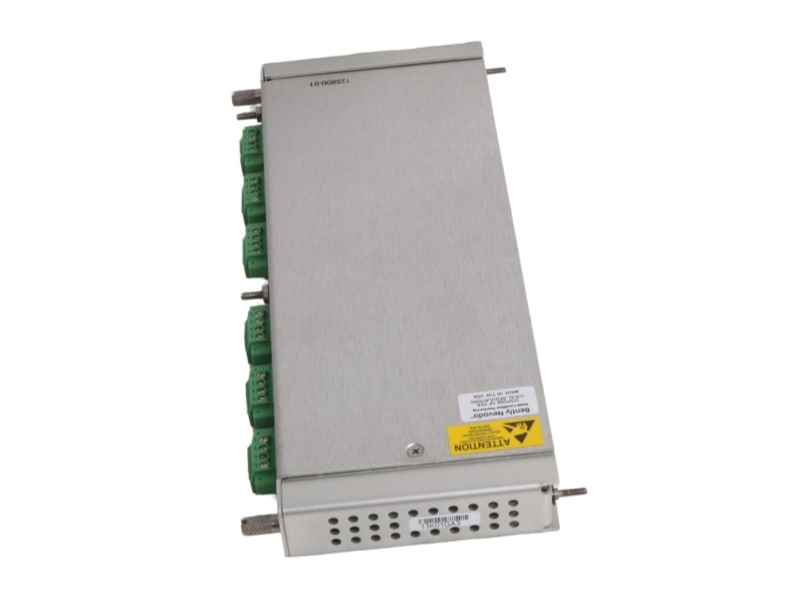

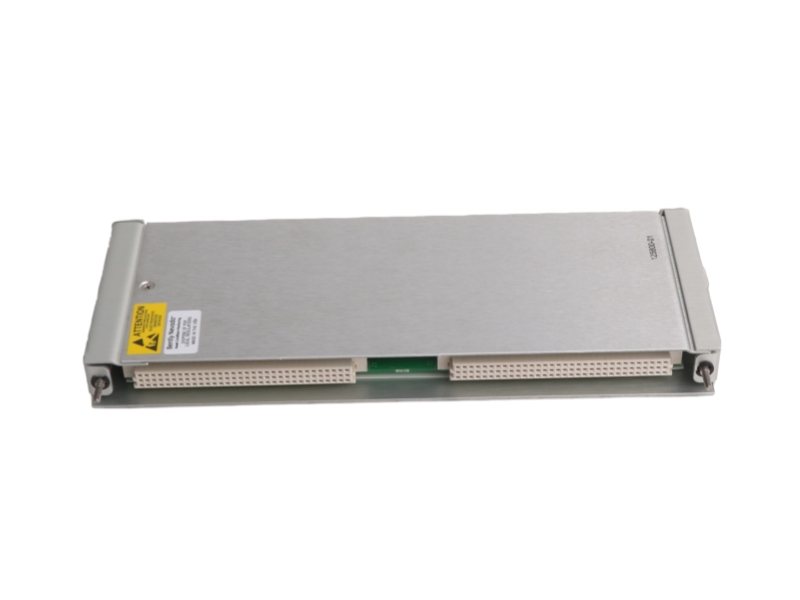

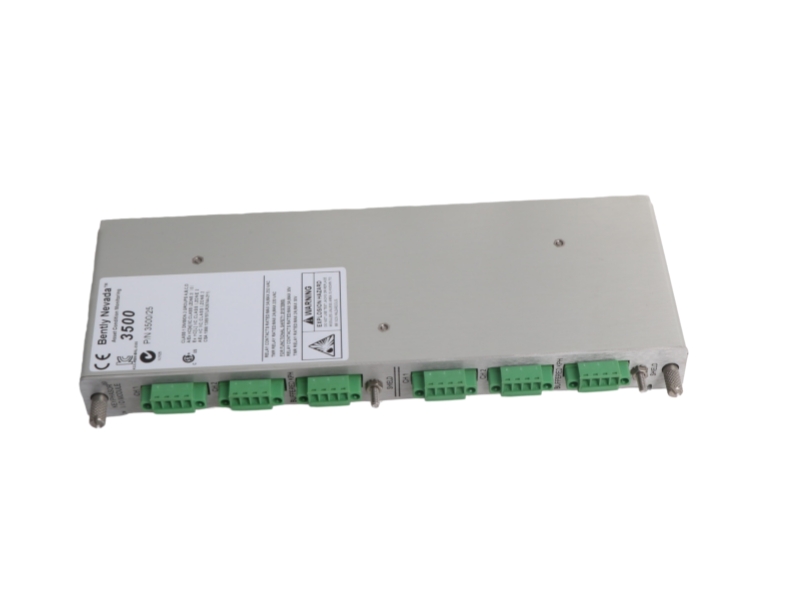

The Bently Nevada 3500/25 125800-01 is the Keyphasor I/O module with internal terminations specified for the 3500/25 Enhanced Keyphasor Module. It occupies one full-height rear slot and interfaces the rack with proximity-probe or magnetic-pickup phase reference signals through the 3500/25 system architecture. The associated Keyphasor module accepts up to two transducer signals and supports speed, phase and multiple-event-per-revolution processing. This non-isolated I/O variant must be distinguished from the isolated 125800-02 version and from external-termination configurations before installation or spare-part procurement.
Condition, availability and warranty are Stockoems commercial terms, not manufacturer commitments.
| Manufacturer | Bently Nevada, a Baker Hughes business |
|---|---|
| Complete Part Number | 3500/25 125800-01 |
| Manufacturer Part Number | 125800-01 |
| Product Type | Keyphasor I/O Module with Internal Terminations |
| Series | 3500/25 Enhanced Keyphasor Module |
| Isolation | Non-isolated I/O version |
| Associated Channels | Up to two transducer signals per Keyphasor module |
| Non-Isolated Input Range | +0.8 V to -21.0 V |
| Input Impedance | 21.8 kΩ minimum |
| Frequency Input Range | 0.017 Hz to 20 kHz |
| Transducer Power | -24 Vdc, 40 mA maximum per channel |
| Operating Temperature | -30°C to +65°C (-22°F to +150°F) |
| Storage Temperature | -40°C to +85°C (-40°F to +185°F) |
| Humidity | 95%, non-condensing |
| I/O Module Dimensions | 241.3 x 24.4 x 103.1 mm (H x W x D) |
| I/O Module Weight | 0.46 kg (1.01 lb) |
| Rack Space | One full-height rear slot |
| Country of Origin | USA |
What is 125800-01?
It is the non-isolated Keyphasor I/O module with internal terminations listed for the 3500/25.
How many signals can the associated module accept?
Each 3500/25 Keyphasor module accepts up to two transducer signals.
Can external termination blocks be used with this I/O module?
No. The manufacturer states that external termination blocks cannot be used with internal-termination I/O modules.
Is 125800-01 an isolated version?
No. The isolated internal-termination version designed for magnetic pickups is 125800-02.
Where is the I/O module installed?
It occupies one full-height rear rack slot corresponding to the 3500/25 module.
What should be verified before wiring?
Confirm sensor type, isolation requirement, terminal arrangement, rack revision and complete part number.
