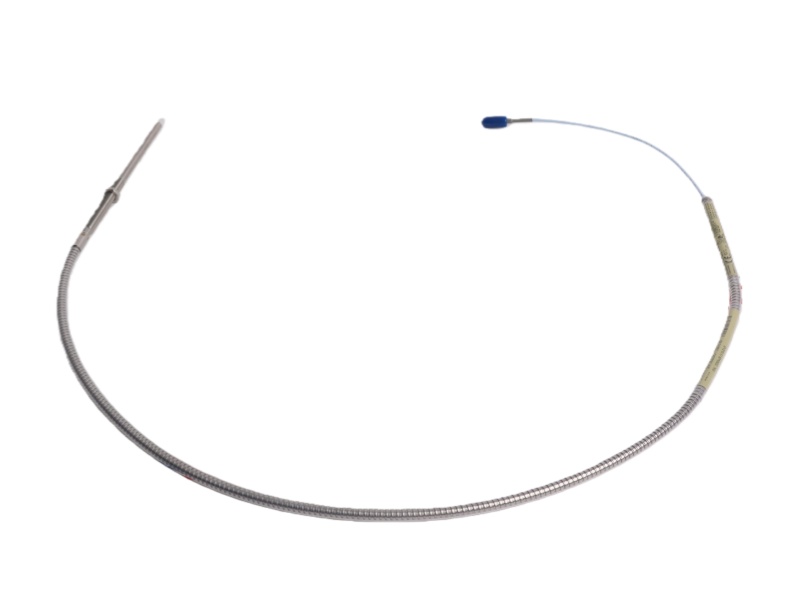

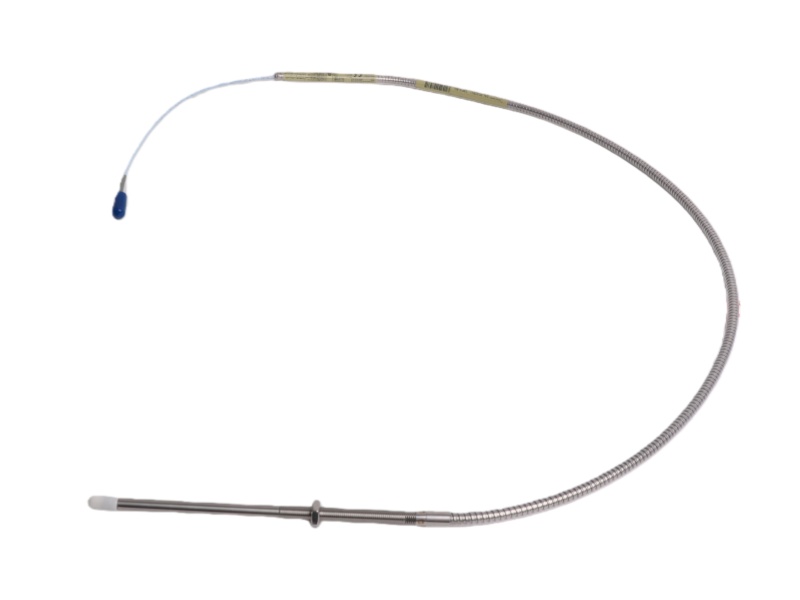

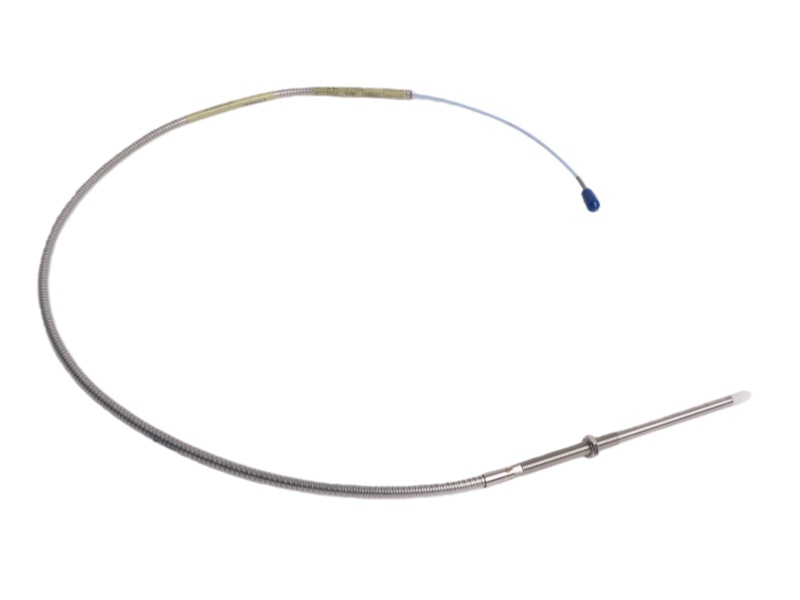

The Bently Nevada Industrial Automation Spare Parts 330904-01-14-05-02-00 is a compact NSv proximity transducer system designed for machines with tight installation spaces and small targets. It is ideal for measuring radial vibration on shafts under 51mm and axial position on targets under 15mm.

Technical Data Summary

Compact System Components: Includes an NSv probe, NSv extension cable, and an NSv Proximitor Sensor.

Designed for Tight Spaces: Specifically developed for installations with counter bore, sideview, or rearview restrictions.

Small Target Capability: Ideal for measuring radial vibration on shafts under 51mm and axial position on flat targets under 15mm.

Standard Scale Factor: Provides an average scale factor of 7.87 V/mm (200 mV/mil).

Limited Linear Range: Offers a shorter linear range of 1.5 mm (60 mils) compared to standard 5/8 mm systems.

Flexible Installation: Proximitor Sensor features a thin design for DIN-rail or panel mounting with SpringLoc terminals.

FAQ

Q1: What machines is this transducer system designed for?

A1: It is intended for centrifugal compressors, refrigeration compressors, and other machines with tight installation spaces.

Q2: What is its primary application advantage?

A2: It is ideal for installations with counter bore, sideview, or rearview restrictions and for measuring small targets.

Q3: What are its typical measurement applications?

A3: It is used for radial vibration/position, axial (thrust) position, tachometer, and Keyphasor measurements.

Q4: What is its scale factor?

A4: The system has an average scale factor of 7.87 V/mm (200 mV/mil).

Q5: What is its linear range?

A5: It provides a linear range of 1.5 mm (60 mils).
