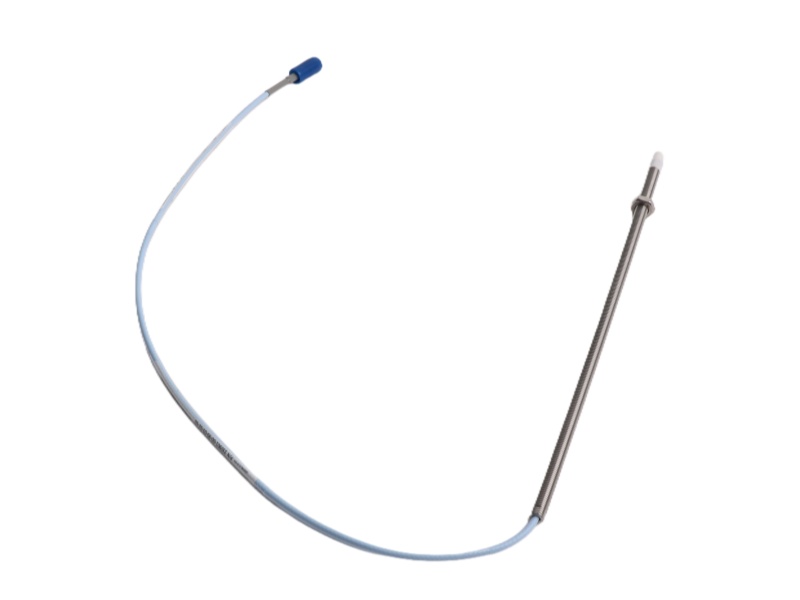

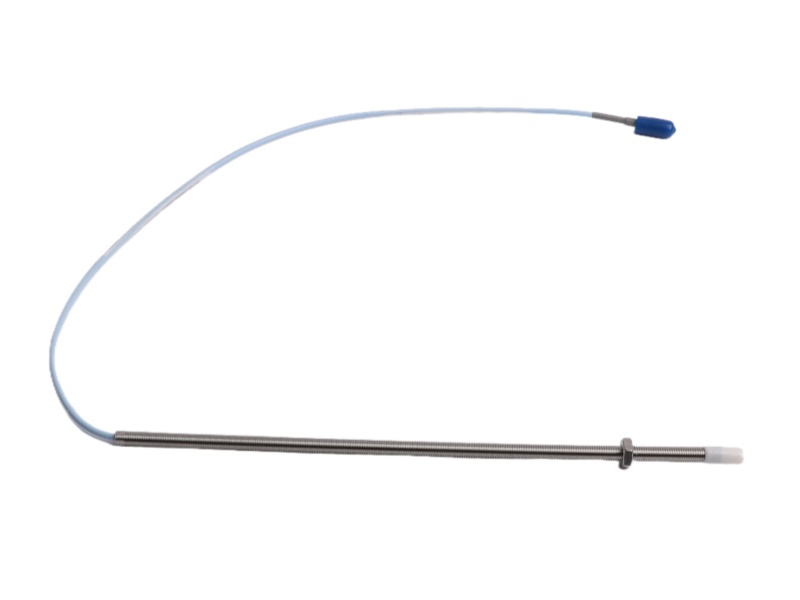

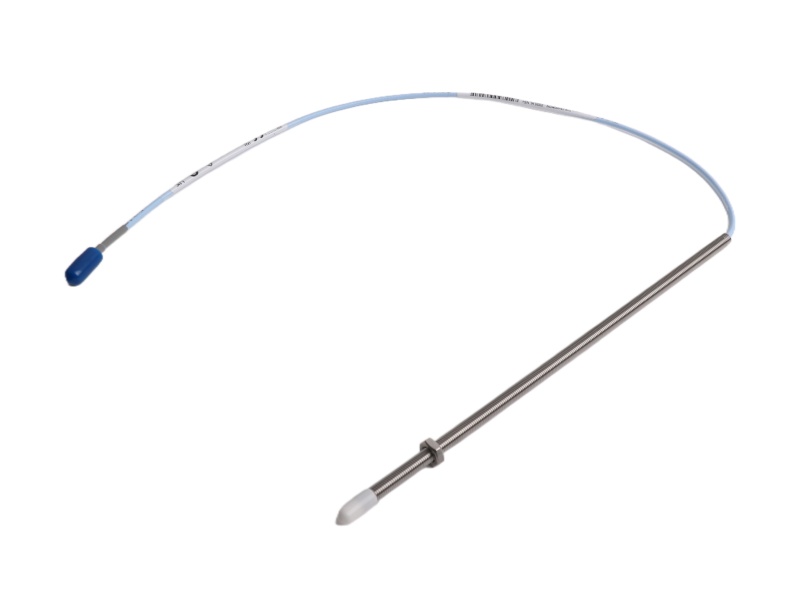

The 3300 SERIES Bently Nevada 330901-00-32-05-02-05 is a key component of the 3300 XL NSv Proximity Transducer System, designed specifically for machinery with severe space constraints. This system is particularly suited for centrifugal air compressors, refrigeration compressors, and process gas compressors where traditional sensors cannot be installed. The compact design of the 3300 NSv Probe Bently Nevada 330901-00-32-05-02-05 makes it an ideal solution for these challenging environments.

A complete system consists of the 330901-00-32-05-02-05 Probe Sensor Cable, a matching NSv extension cable, and a 3300 XL NSv Proximitor sensor. This configuration is engineered for applications where counterbore, side-view, or rear-view restrictions exist, preventing the use of standard 5mm or 8mm transducer systems. The versatility of the Bently Nevada 330901-00-32-05-02-05 is a primary reason for its selection.

The Bently 3300 NSv Probe 330901-00-32-05-02-05 excels in small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 inches) or monitoring axial position on flat targets under 15 mm (0.6 inches). Its primary function on fluid-film bearing machines is to provide highly accurate measurement data where a small shaft or a reduced side-view is present, ensuring reliable machinery protection.

Typical measurements captured using the 330901-00-32-05-02-05 BENTLY NEVADA include radial vibration and position, axial (thrust) position, as well as tachometer, zero speed, and phase reference (Keyphasor) signals. This makes it an integral part of a comprehensive condition monitoring strategy for critical assets.
