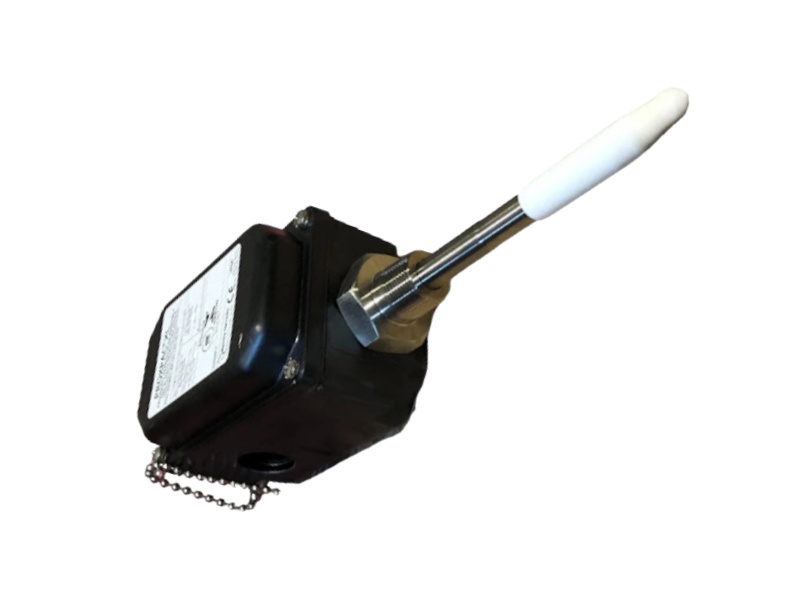

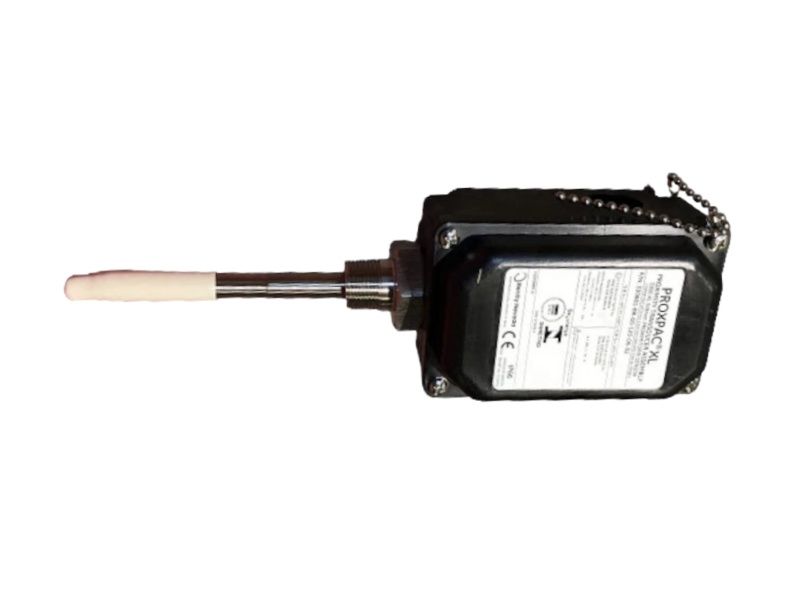

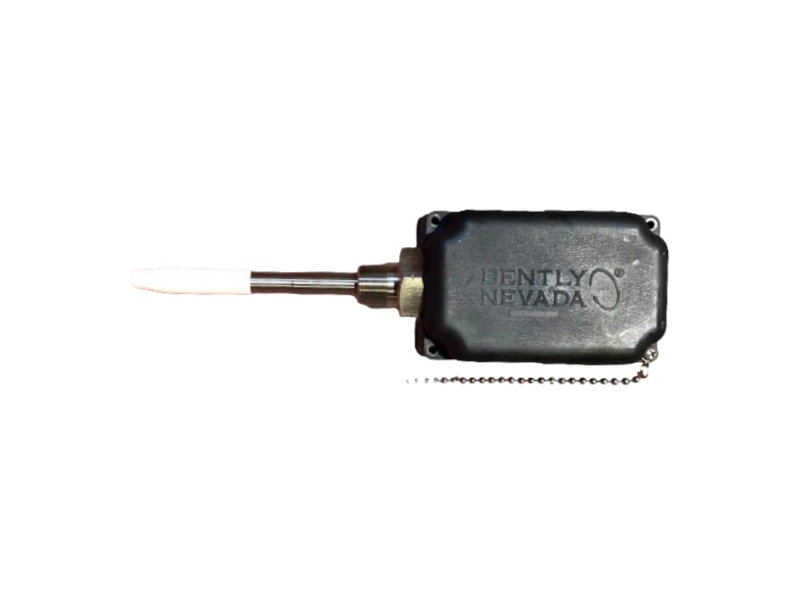

The 330881-BR-05-060-00-02 Bently Nevada TSI module is a PROXPAC XL Proximity Transducer Assembly designed for accurate, non-contact measurement of shaft position and vibration in critical rotating machinery. Its design follows the proven configuration of the 31000 and 32000 Proximity Probe Housing Assemblies, offering the same benefits for external access and adjustment of proximity probes. Unlike traditional housings, the BENTLY NEVADA 330881-BR-05-060-00-02 integrates a 3300 XL Proximitor sensor within the housing cover, creating a fully self-contained system. This eliminates the need for an extension cable between the probe and sensor and removes the requirement for a separate Proximitor housing, allowing direct field wiring to connect with monitoring systems.

The assembly features a 3300 XL 8 mm proximity probe with a 1-meter cable installed in the probe sleeve, providing precise and reliable signal transmission. The 330881-BR-05-060-00-02 Bently Nevada PROXPAC XL Proximity Transducer requires a DC power supply ranging from -17.5 Vdc to -26 Vdc without barriers at 12 mA maximum consumption, or -23 Vdc to -26 Vdc with barriers. Operation at voltages more positive than -23.5 Vdc can reduce the probe’s linear range. Sensitivity remains stable, with less than 2 mV change in output voltage per volt of input.

The PROXPAC XL housing is made of advanced Polyphenylene Sulfide (PPS), a molded thermoplastic that replaces steel and aluminum used in previous designs. Reinforced with glass and conductive fibers, it strengthens the housing and effectively dissipates electrostatic charges, protecting internal components. The 330881-BR-05-060-00-02 3300 SYSTEM ensures reliable performance even in electrically noisy environments.

Rated for Type 4X and IP66, the PROXPAC XL Housing 330881-BR-05-060-00-02provides superior protection against dust, water, and harsh industrial conditions. Its integrated design simplifies installation, reduces maintenance needs, and ensures long-term, high-precision monitoring of critical machinery, making it a dependable solution for industrial vibration and position measurement applications.
