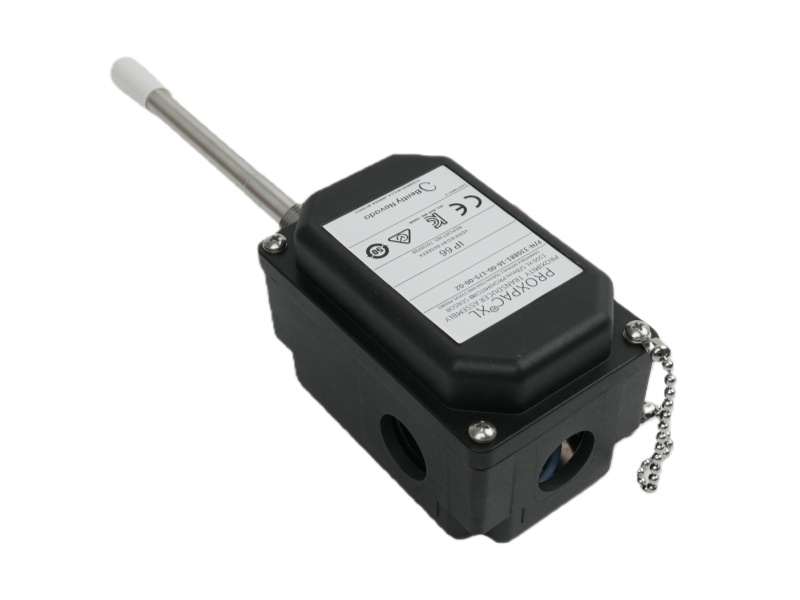

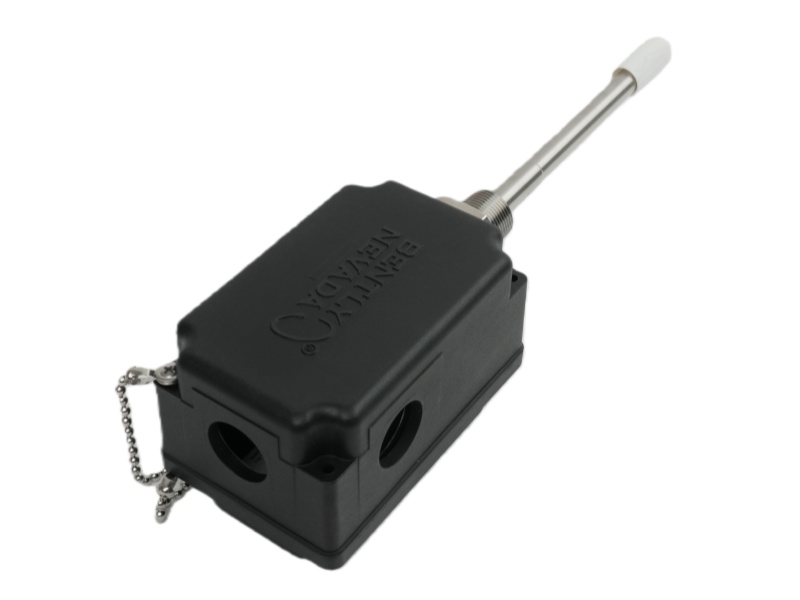

Bently Nevada 3300 Series 330881-16-04-189-06-02  is a self-contained PROXPAC XL assembly with 8mm probe, PPS housing (IP66/Type 4X).

Applications

Integrated Probe Systems: Provides a complete, self-contained vibration and position measurement solution in a single housing.

Severe Environment Monitoring: Ideal for wet, dusty, or harsh industrial settings with its Type 4X / IP66 environmental rating.

Space-Constrained Installations: Eliminates the need for a separate Proximitor enclosure and extension cables, simplifying layout.

Machinery Health Assessment: Used for continuous monitoring of radial vibration and axial position on critical rotating equipment.

Standard Connection Setup: Features 3/4-14 NPT process connections for straightforward and secure field piping integration.

Legacy System Upgrades: Offers a modern, integrated alternative to older multi-component proximity transducer assemblies.

FAQ

Q1: What type of probe does this assembly include?

A1: It has a 3300 XL 8 mm probe without approvals.

Q2: Is it a self-contained system?

A2: Yes, it integrates a Proximitor sensor, no extension cable needed.

Q3: What material is the housing made of?

A3: PPS thermoplastic with glass and conductive fibers.

Q4: What environmental rating does it have?

A4: It’s rated for Type 4X and IP66 severe environments.

Q5: What fittings are included?

A5: 3/4-14 NPT fitting, SST reducer, and two plugs.
