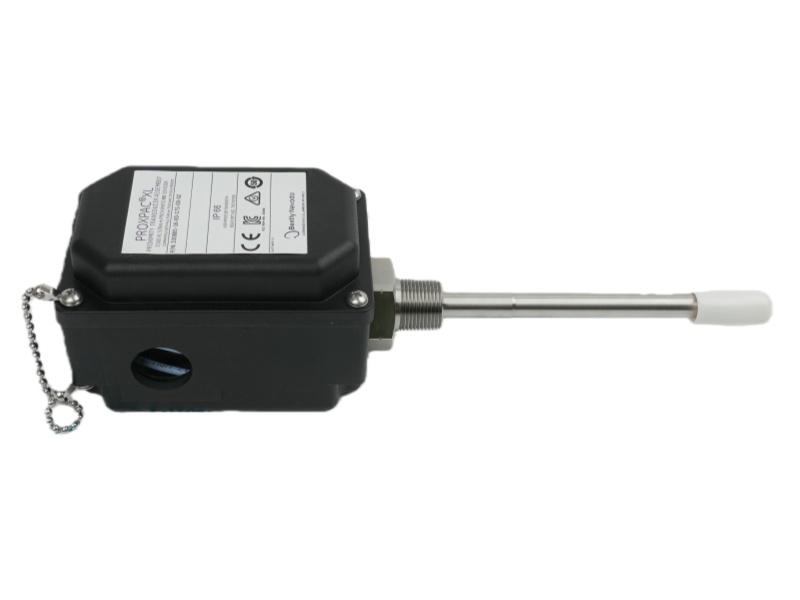

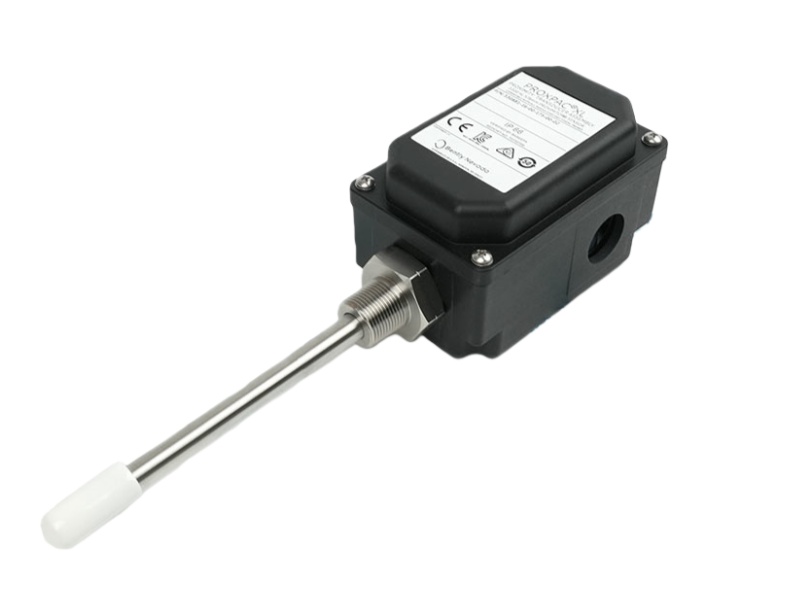

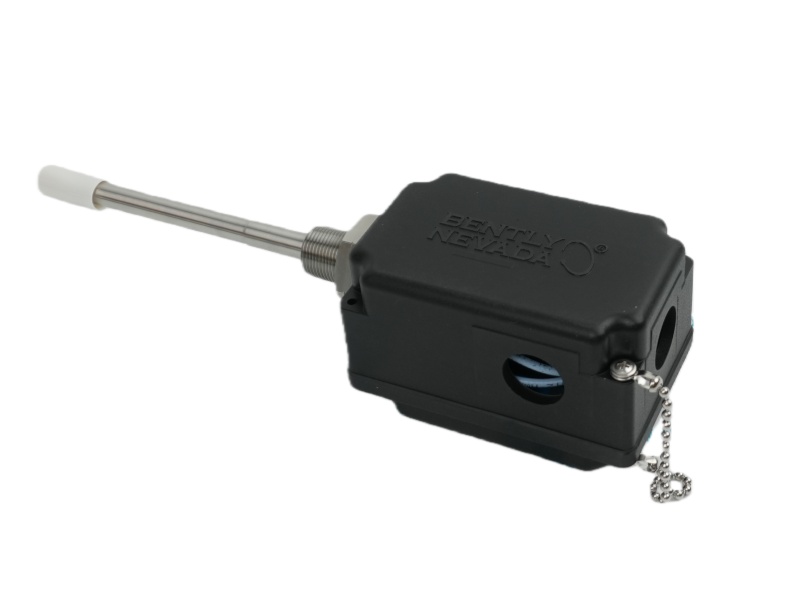

The 330881-00-04-150-06-02 Bently Nevada Proximity Transducer for PLC PAC & Dedicated Controllers is a self-contained PROXPAC XL proximity transducer assembly with an integrated 3300 XL Proximitor sensor. Its PPS housing, rated for IP66 and Type 4X, eliminates extension cables and is ideal for severe environments.

Features and Benefits

Integrated Design: Self-contained system with built-in 3300 XL Proximitor, eliminating separate Proximitor housings and extension cables.

Robust Housing: PPS material with glass/conductive fibers provides high strength, electrostatic dissipation, and IP66/Type 4X environmental protection.

Excellent Performance: Offers 7.87 V/mm scale factor, linear range up to 2 mm, and frequency response of 0-10 kHz.

Simplified Installation: Direct field wiring connection to monitors reduces complexity; uses standard triaxial cable.

Wide Temperature Range: Probe operates from -52°C to +177°C; housing functions from -52°C to +100°C.

Rugged Construction: Withstands 330N cable pull strength and 4J impacts at extreme temperatures per BASEEFA certification.

FAQ

Q1: What is the key design advantage of the PROXPAC XL Assembly?

A1: Its integrated design incorporates the Proximitor sensor into the housing cover, eliminating the need for a separate Proximitor enclosure and extension cables.

Q2: What environmental protection does the housing provide?

A2: The PPS housing is rated for IP66 and Type 4X environments, offering superior protection against dust, water ingress, and corrosion.

Q3: What is the system's linear measurement range?

A3: It provides a linear range of 2 mm (80 mils), beginning approximately 0.25 mm from the target.

Q4: What is the recommended gap setting for operation?

A4: The recommended gap setting is 1.27 mm (50 mils) for optimal performance.

Q5: What are the operating temperature limits for the probe and housing?

A5: The probe operates from -52°C to +177°C, while the housing and integrated Proximitor sensor operate from -52°C to +100°C.
