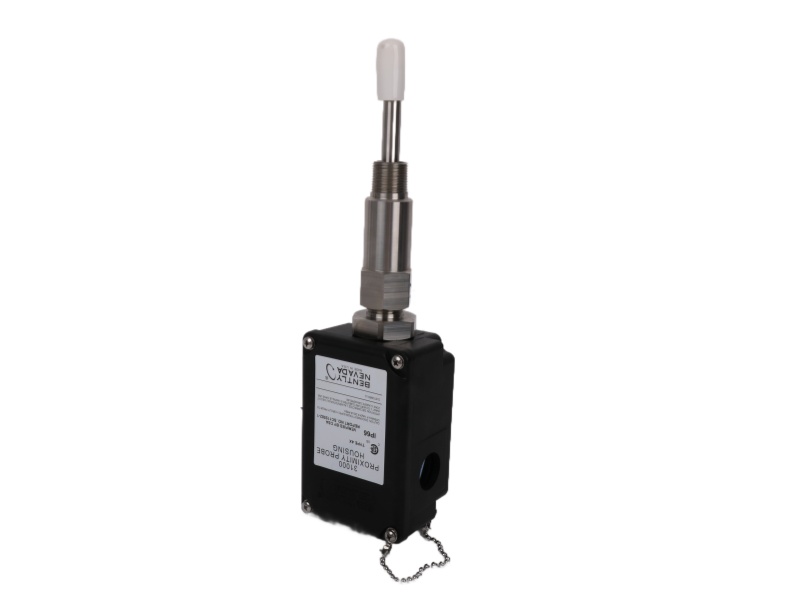

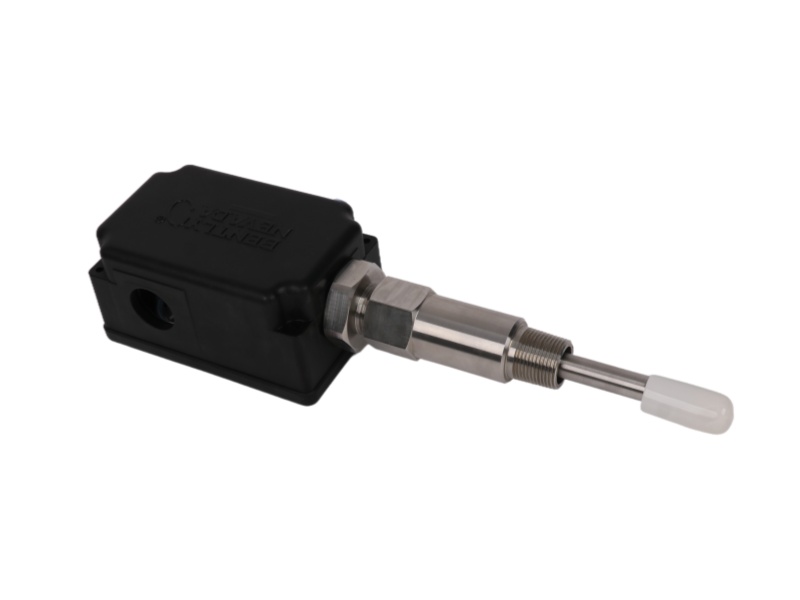

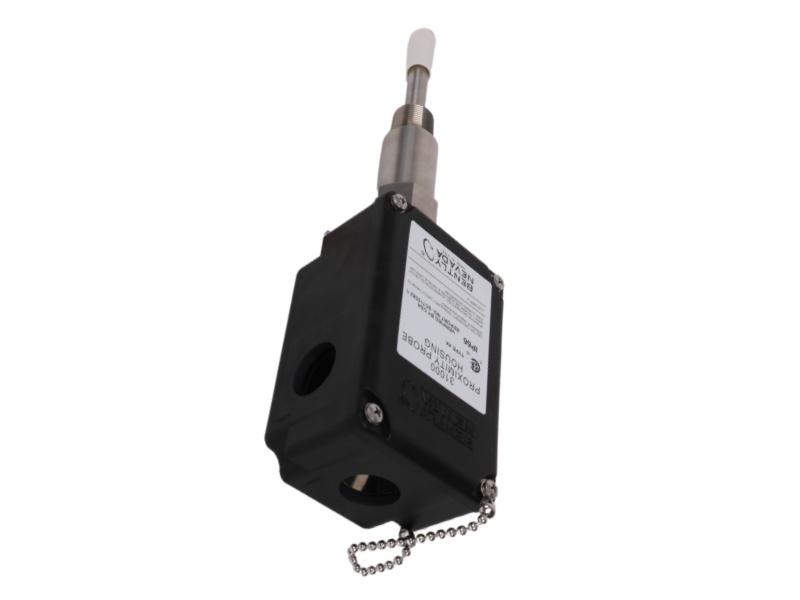

The 330880-28-20-038-00-02 Bently Nevada PROXPAC XL Proximity Transducer represents a significant evolution in proximity transducer design, building upon the proven foundation of the legacy 31000/32000 series housings. This advanced assembly retains all the key advantages of its predecessors, including the crucial capability for external probe adjustment and easy access, while integrating critical components into a single, robust unit. The innovative design of the 3300 SYSTEM 330880-28-20-038-00-02 incorporates a 3300 XL Proximitor sensor directly within its housing cover, a feature that fundamentally enhances its application simplicity and reliability.

This integration makes the TSI module Bently Nevada 330880-28-20-038-00-02 a completely self-contained monitoring system. By eliminating the traditional requirement for a separate extension cable between the probe and the Proximitor, it reduces potential points of failure and simplifies installation. Furthermore, the need for a separate enclosure for the Proximitor electronics is also removed, as field wiring is connected directly from the monitoring system to the Bently Nevada 330880-28-20-038-00-02 assembly itself, streamlining the entire setup process.

The housing material is a key differentiator for the PROXPAC XL Housing 330880-28-20-038-00-02. Constructed from Polyphenylene Sulfide (PPS), a high-performance molded thermoplastic reinforced with glass and conductive fibers, it replaces the traditional steel and aluminum. This material not only provides exceptional strength but also effectively dissipates electrostatic charges, contributing to the long-term stability and performance of the Bently Nevada 330880-28-20-038-00-02.

With an environmental rating of Type 4X and IP66, the assembly offers superior protection against dust, water ingress, and corrosive elements, making it exceptionally durable in severe operating environments. The specific configuration of the BENTLY NEVADA 330880-28-20-038-00-02 Housing includes an 8mm probe with multiple international approvals, a 200mm body length, and a 38mm adjustment range, typically supplied with 3/4-14 NPT conduit fittings, completing its profile as a highly integrated and resilient solution for critical machinery monitoring.
