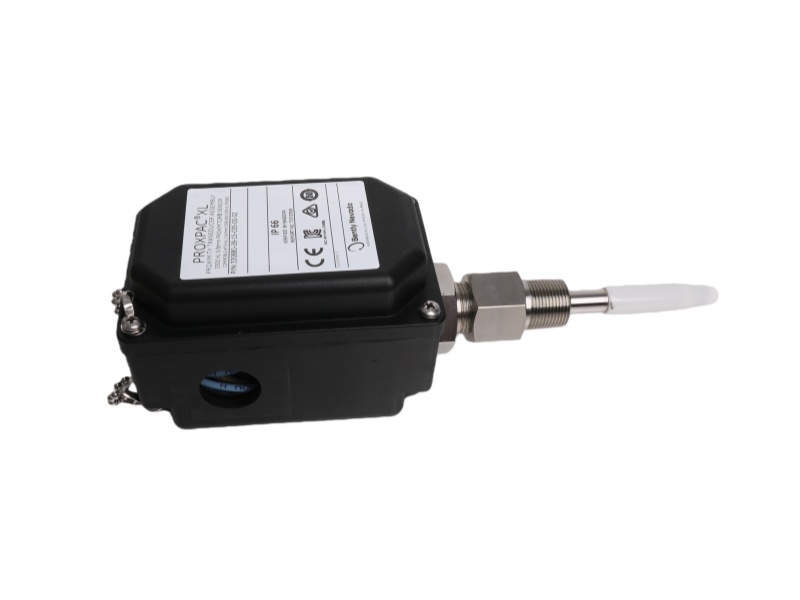

The Bently Nevada 330880-16-15-020-02-02 Proximity Probe Housing represents an integrated proximity transducer assembly that combines advanced housing design with precision measurement capabilities. This self-contained system incorporates a 3300 XL Proximitor sensor within its housing cover, eliminating the need for separate extension cables between probe and sensor while maintaining full compatibility with existing monitoring infrastructure. The engineering design of the module demonstrates significant innovation through its use of Polyphenylene Sulfide composite material, which provides superior environmental protection rated for Type 4X and IP66 conditions compared to traditional metal housings.

The electrical characteristics of the 330880-16-15-020-02-02 Bently Nevada PROXPAC XL Proximity Transducer ensure reliable operation across diverse industrial environments, requiring a power supply range of -17.5 Vdc to -26 Vdc with maximum consumption of 12 mA. This power efficiency combines with exceptional signal integrity as demonstrated by its minimal sensitivity to voltage fluctuations, maintaining less than 2 mV output variation per volt change in input voltage. The output resistance of 50 ohms in the module facilitates stable signal transmission across cable lengths up to 305 meters without significant degradation.

Measurement performance defines the core value of the Bently Nevada PROXPAC XL Proximity Transducer  330880-16-15-020-02-02, delivering a linear range of 2 mm (80 mils) with an incremental scale factor of 7.87 V/mm ±5%. This precision instrumentation maintains deviation from straight line measurements within ±0.025mm across temperature variations from 0°C to 45°C, ensuring consistent accuracy in machinery monitoring applications. The frequency response of 0 to 10 kHz with +0, -3 dB characteristics enables the module to capture both slow-changing positional data and high-frequency vibration phenomena.

Implementation of the BENTLY NEVADA 330880-16-15-020-02-02 in industrial settings simplifies installation through its integrated design while providing robust protection for critical monitoring functions. The system's compatibility with standard 3-conductor shielded triax cable and tinned field wiring, combined with its advanced electrostatic charge dissipation capabilities, establishes the 3300 SERIES Bently Nevada 330880-16-15-020-02-02 as a comprehensive solution for rotating equipment protection in demanding operational environments where reliability and accuracy are paramount concerns.
