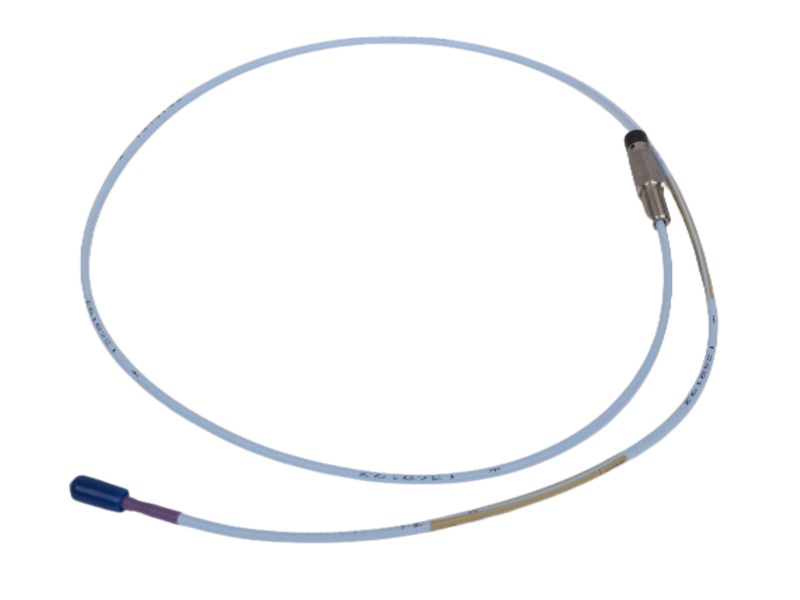

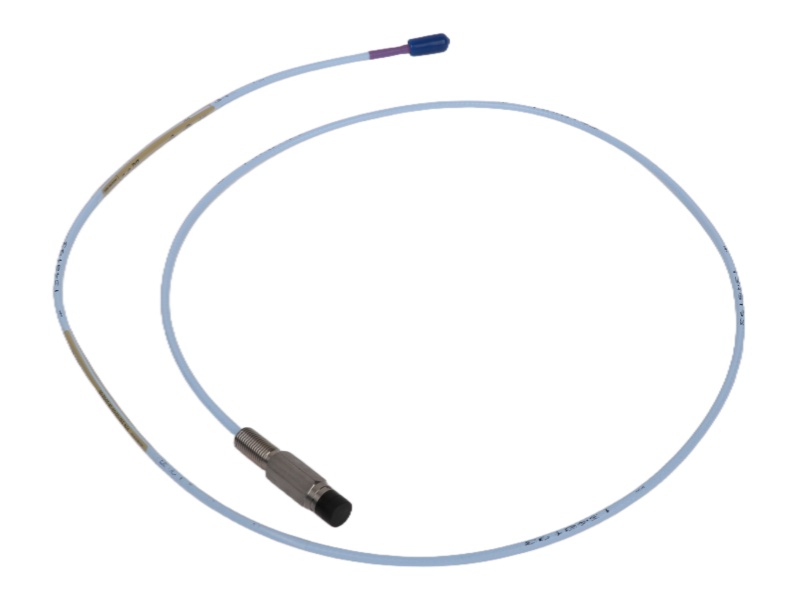

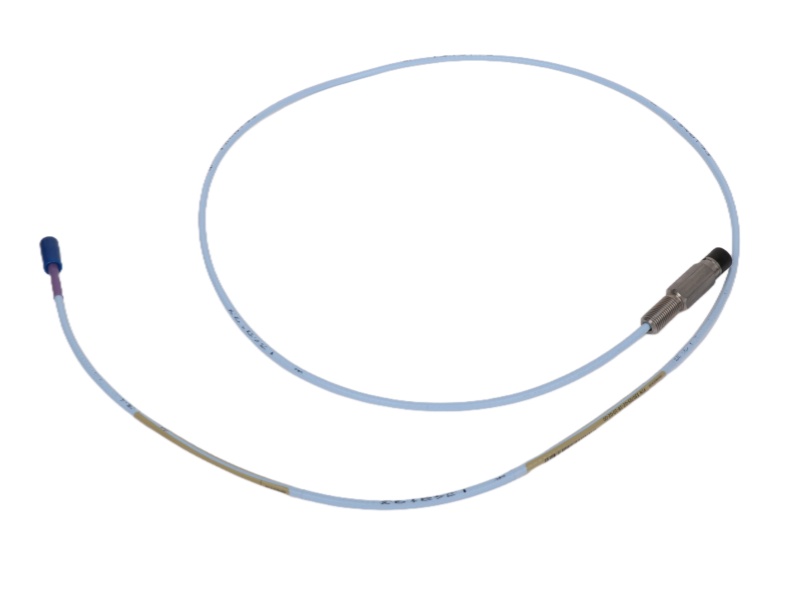

Probes 330705-02-18-10-02-05 Bently Nevada is a 3300 XL 11 mm Reverse Mount Probe designed for precise non-contact vibration and displacement measurements in fluid film bearing machinery. PLC MODULE 330705-02-18-10-02-05 Bently Nevada 3.94 V/mm (100 mV/mil) output ensures accurate monitoring and diagnostics, with a larger 11 mm tip providing a longer linear range than conventional 8 mm probes.

The 330705-02-18-10-02-05 Bently Nevada 3300 XL 11 mm Reverse Mount Probe is available in both armored and unarmored configurations, with standard reverse mount threads of 3/8-24 or M10 x 1. It features gold-plated ClickLoc™ connectors, which secure connections and prevent loosening during operation, enhancing system reliability.

Its TipLoc™ 3300 XL 11 mm Reverse Mount Probe Bently Nevada 330705-02-18-10-02-05 design firmly attaches the probe tip to the body, while the CableLoc™ system secures the probe cable to the tip, delivering a pull strength of 330 N (75 lb). The probe cable is 75 triaxial FEP-insulated, available in lengths of 1, 5, or 9 meters, and the probe case is constructed from durable AISI 304 stainless steel.

The 330705-02-18-10-02-05 11 mm Reverse Mount Probe Bently Nevada operates reliably in temperatures from -51°C to +177°C, with a PPS probe tip and a Viton O-ring for sealing differential pressures. Its robust design ensures dependable performance in demanding industrial environments.
