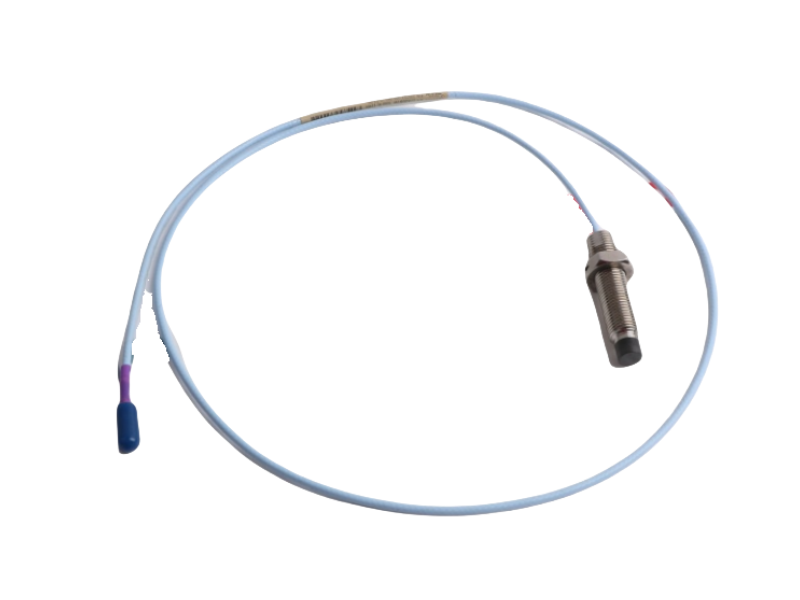

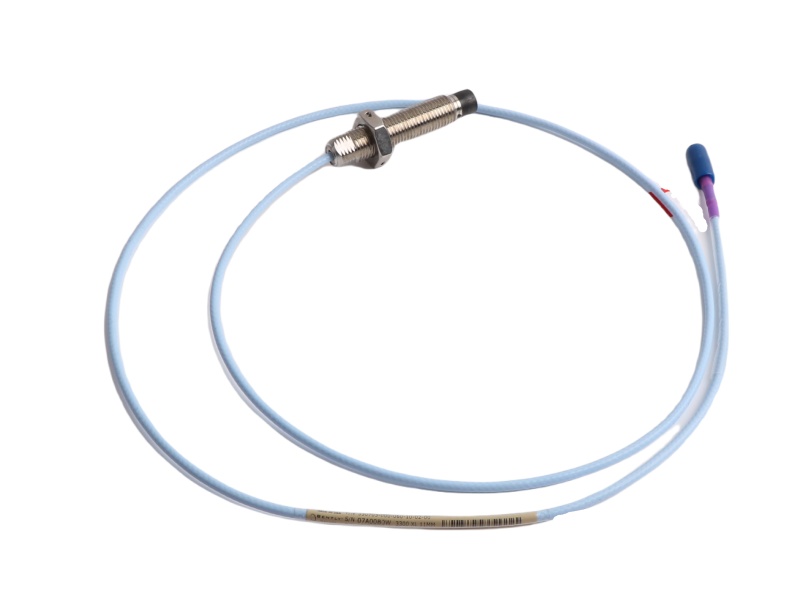

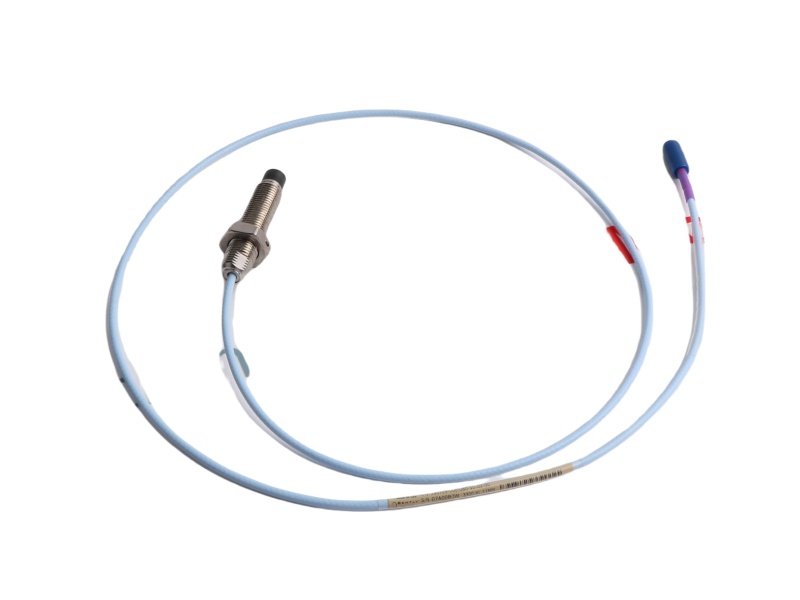

The Bently Nevada 330703-000-060-10-01-00 is a sophisticated proximity transducer system, specifically designed for high-precision vibration and displacement measurements in industrial machinery. This system consists of the 330703-000-060-10-01-00 Sensor Proximity Probe, a high-quality extension cable, and the advanced 330703-000-060-10-01-00 Proximitor Sensor, which work together to deliver reliable, non-contacting vibration data for fluid film bearing machines and other critical equipment.

The 330703-000-060-10-01-00 3300 XL 11 mm features a highly responsive output of 3.94 V/mm (100 mV/mil), making it ideal for applications requiring precise measurements of vibration and displacement. With its robust 11 mm tip, this sensor offers an extended linear range compared to standard systems, allowing for more accurate readings in demanding environments.

The 3300 XL 11 mm 330703-000-060-10-01-00 is particularly suited for axial (thrust) position monitoring, ramp differential expansion measurements on steam turbines, rod position or rod drop measurements on reciprocating compressors, tachometer and zero-speed measurements, and phase reference (Keyphasor) signals. These applications benefit from the extended range and enhanced performance of the 330703-000-060-10-01-00 system.

When upgrading from older Bently Nevada systems, it is essential to replace all components with the 330703-000-060-10-01-00 series parts to ensure compatibility and optimal performance. If integrating into a 3500 Monitoring System, an updated version of the configuration software that supports the Sensor Proximity Cable 330703-000-060-10-01-00 system will be required. For existing systems, modifications may be needed to support the new components and their enhanced features.
