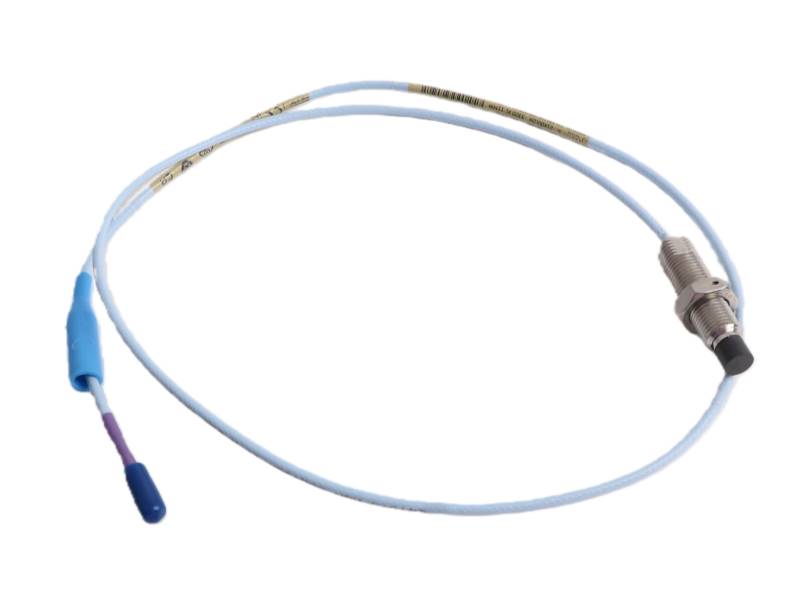

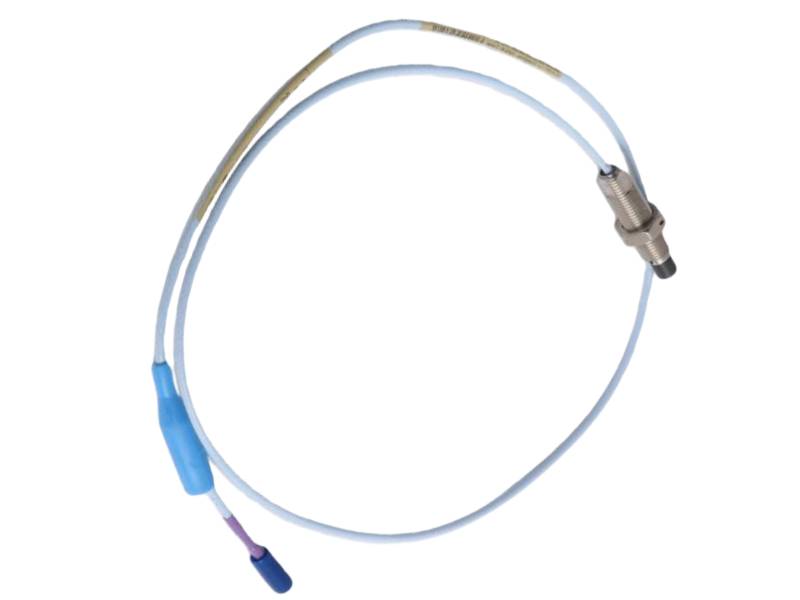

The 330703-000-050-10-11-00 Bently Nevada proximity probe is an 11mm Proximity Transducer System component, providing a 3.94 V/mm output for long-range axial position and differential expansion measurements in critical machinery.

High-Resolution Measurement

• Large 11mm Probe: Enables a longer linear measurement range.

• High Sensitivity: Provides a precise 3.94 V/mm (100 mV/mil) output signal.

• Wide Application: Suitable for axial position, differential expansion, and rod drop measurements.

• Advanced Signal: Ensures accurate dynamic displacement and vibration data.

• System Upgrade: Designed as a direct replacement for older 7200-series systems.

• Full Integration: Requires complete component and software update for existing monitoring systems.

FAQ

Q1: What is the primary application of the 330703-000-050-10-11-00 transducer?

A1: It is primarily used for long-range axial position, thrust position, and differential expansion measurements on large rotating machinery.

Q2: What is its key technical advantage?

A2: Its 11mm probe tip provides a longer linear measurement range and a high-resolution 3.94 V/mm output signal.

Q3: Can it replace older Bently Nevada systems?

A3: Yes, it is designed to replace the legacy 7200-series 11 mm and 14 mm Transducer Systems as a complete upgrade.

Q4: What is required for a full system upgrade?

A4: Every system component must be replaced with 3300 XL 11mm parts, and the monitoring system software must be updated to support it.

Q5: Is it compatible with the 3500 Monitoring System?

A5: Yes, but it requires an updated version of the configuration software that lists the 3300 XL 11mm system as a compatible option.
