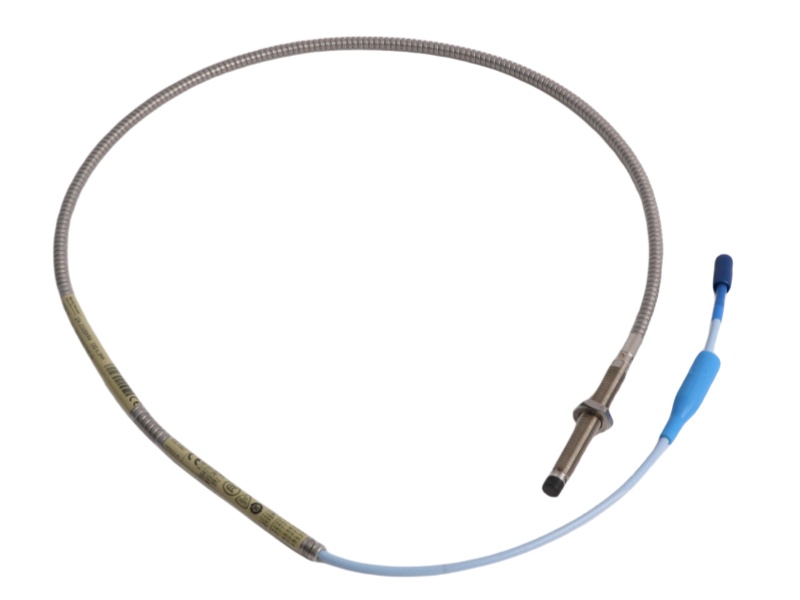

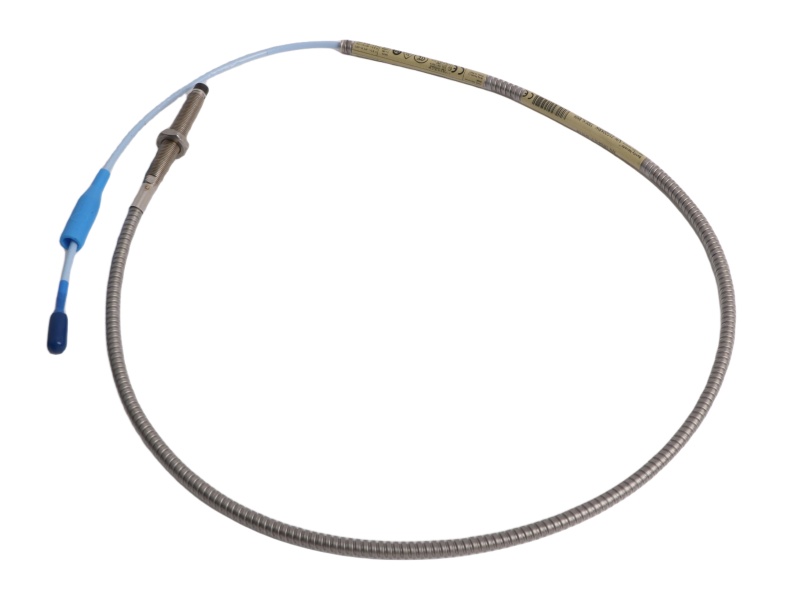

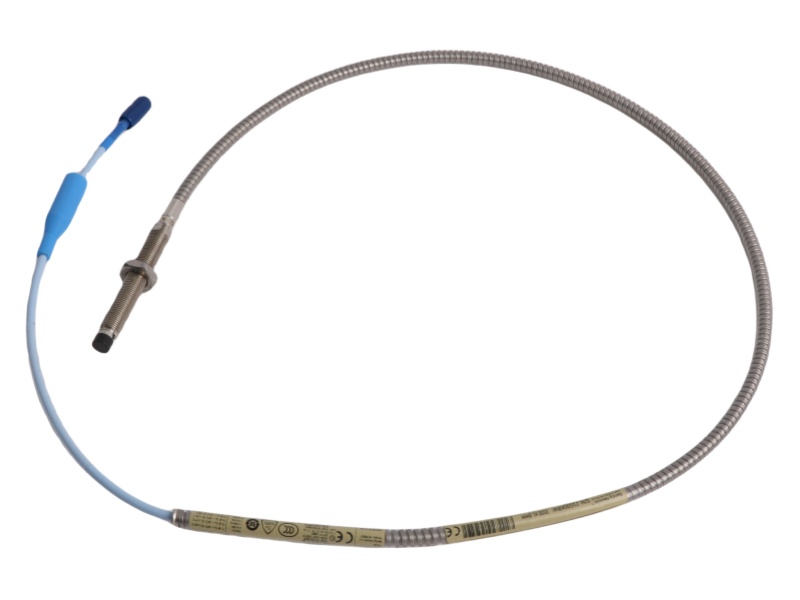

The 3300 XL 8 mm Proximity Probes 330104-00-07-10-01-05  is part of the advanced 3300 XL 8 mm Proximity Transducer System, which includes a probe, extension cable, and Proximitor sensor. This Bently Nevada Sensor Probes 330104-00-07-10-01-05 Cable generates an output voltage directly proportional to the distance between the probe tip and the conductive surface, accurately measuring both static position and dynamic vibration data. It is primarily used for vibration and position monitoring on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers state-of-the-art performance in eddy current proximity transducer technology. It fully complies with the API 670 Standard, ensuring reliability in mechanical configuration, linear range, accuracy, and temperature stability. The BENTLY NEVADA 330104-00-07-10-01-05 Proximity Probes features an M10 x 1 thread with armor for enhanced durability and a minimum case length of 70 mm.

This proximity transducer system supports complete interchangeability of probes, extension cables, and Proximitor sensors, removing the need for component matching or bench calibration. Additionally, the BENTLY NEVADA 330104-00-07-10-01-05 is backward compatible and interchangeable with other 3300 series probes, including the smaller 5 mm probes, making it suitable for applications with limited mounting space.

The 330104-00-07-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Probes also includes a miniature coaxial ClickLoc connector with a connector protector and standard cable, and it carries CSA, ATEX, and IECEx approvals for use in hazardous environments. This ensures the probe’s safety and reliability in demanding industrial settings.
