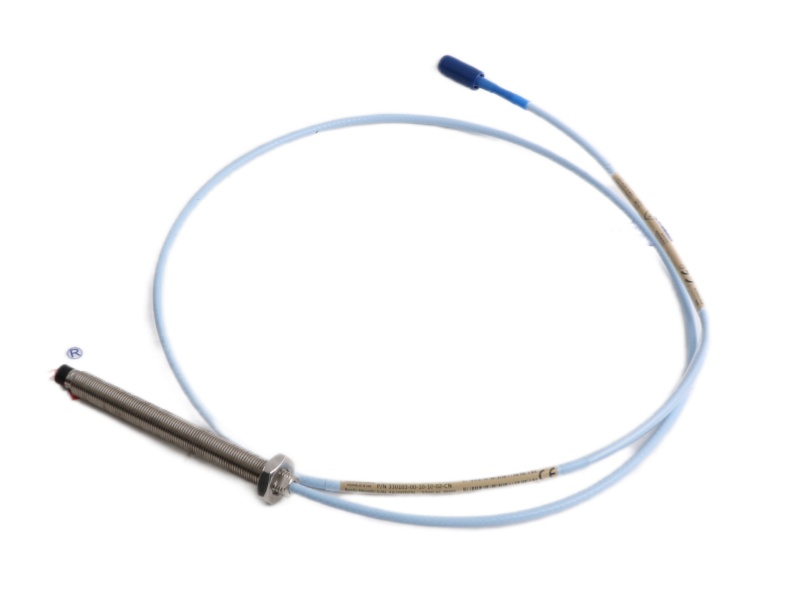

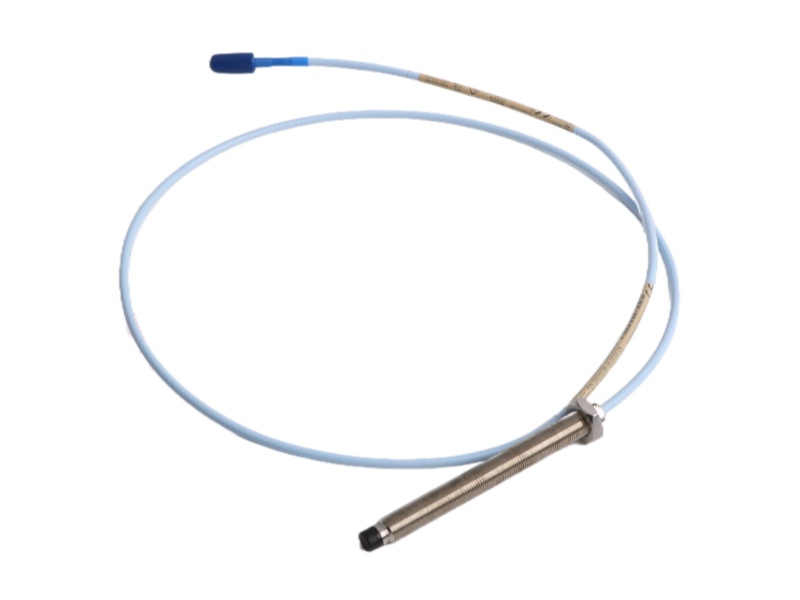

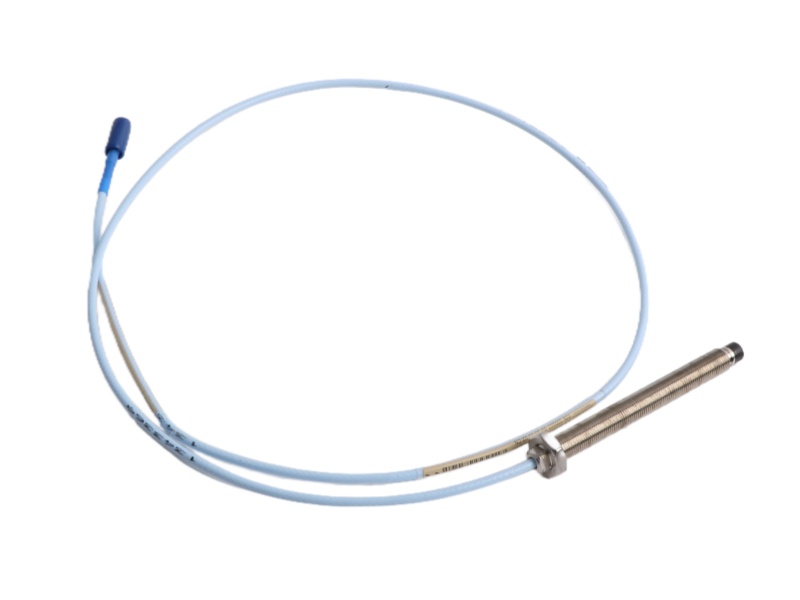

The SENSOR PROBE CABLE 330103-00-15-10-02-05 Bently Nevada is part of the 3300 XL 8 mm Proximity Transducer System, which includes a probe, an extension cable, and a Proximitor Sensor. This 3300 SERIES Bently Nevada 330103-00-15-10-02-05 delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface, enabling precise measurement of both static position and dynamic vibration values. It is primarily used for vibration and position monitoring on fluid-film bearing machines, as well as for Keyphasor reference and speed measurements in critical industrial applications.

The Bently Nevada 3300 XL 8 mm Probe 330103-00-15-10-02-05 features a robust M10 x 1 threaded probe without armor, paired with a 1.5-meter (4.9 feet) miniature coaxial ClickLoc connector and standard cable. It is designed to meet CSA, ATEX, and IECEx approvals, ensuring reliable performance in demanding environments.

With a maximum case length of 250 mm and a minimum of 20 mm, the 330103-00-15-10-02-05 Bently Nevada 3300 XL 8 mm Probe provides flexibility in installation to accommodate a wide range of machinery and monitoring requirements. The probe can be ordered in increments of 10 mm to suit specific application needs, ensuring precise fit and measurement accuracy.

Compact and lightweight, the 330103-00-15-10-02-05 Bently Nevada 8 mm Probe has an estimated shipping size of 58.5 cm x 1.5 cm x 1.5 cm and weighs 0.44 kg. Its combination of high accuracy, durability, and industry-standard approvals makes it a reliable choice for industrial vibration and position monitoring systems.
