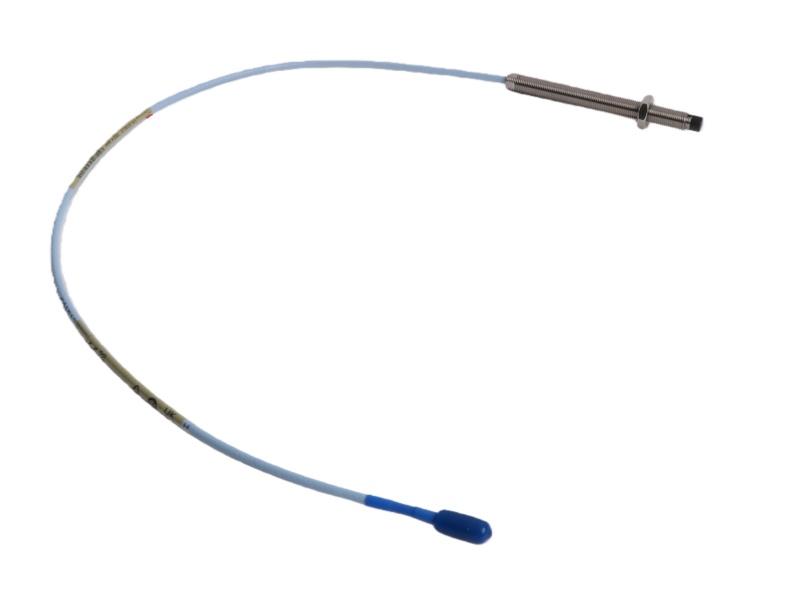

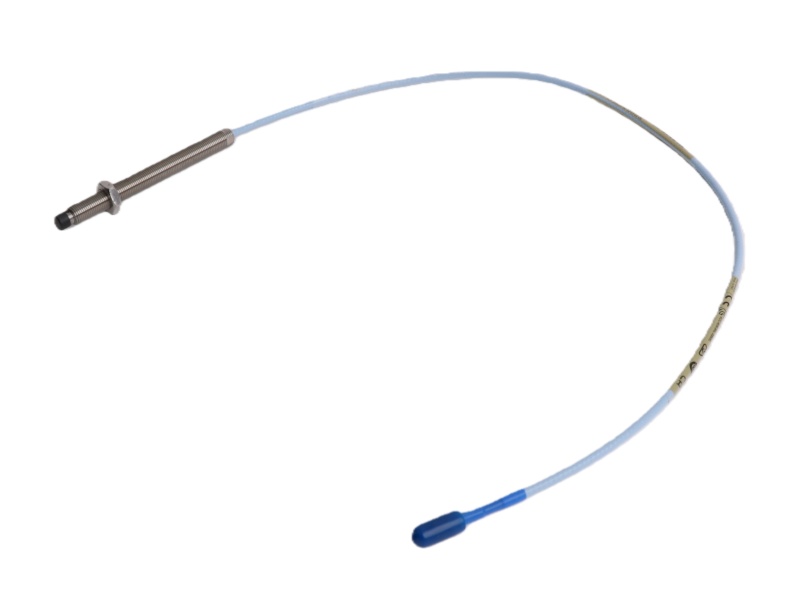

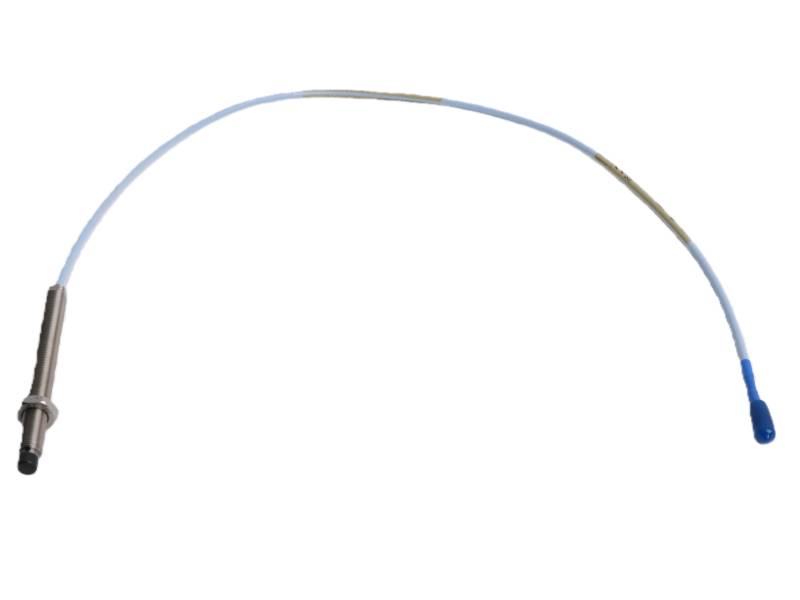

The PLC Module Bently Nevada 330103-00-10-05-02-CN is an 8 mm proximity probe designed for the 3300 XL system. It features an M10x1 thread, a compact 100 mm case, and a short 0.5-meter cable with a ClickLoc connector, ideal for tight installations and hazardous areas with its CSA, ATEX, and IECEx approvals.

Technical Data Summary

• Probe Type: 3300 XL series 8 mm proximity probe.

• Thread: M10x1 thread, without armor.

• Case Length: Minimum case length of 100 mm.

• Cable Length: Factory-terminated 0.5 meter (1.6 ft) cable.

• Connector: Miniature coaxial ClickLoc connector.

• Approvals: Certified with CSA, ATEX, and IECEx for hazardous locations.

FAQ

Q1: What is the cable length of this specific 8 mm probe model?

A1: It features a short 0.5 meter (1.6 feet) standard cable.

Q2: How does its case length differ from other 8 mm probes?

A2: This model has a longer minimum case length of 100 mm, compared to the 70 mm variant.

Q3: Is it suitable for use in potentially explosive atmospheres?

A3: Yes, it carries CSA, ATEX, and IECEx approvals for use in hazardous locations.

Q4: Does this probe come with an armored jacket?

A4: No, it is the unarmored version, indicated by the specifications.

Q5: What power supply is required for its Proximitor sensor?

A5: The system requires a negative DC voltage supply, typically between -17.5 Vdc and -26 Vdc.
