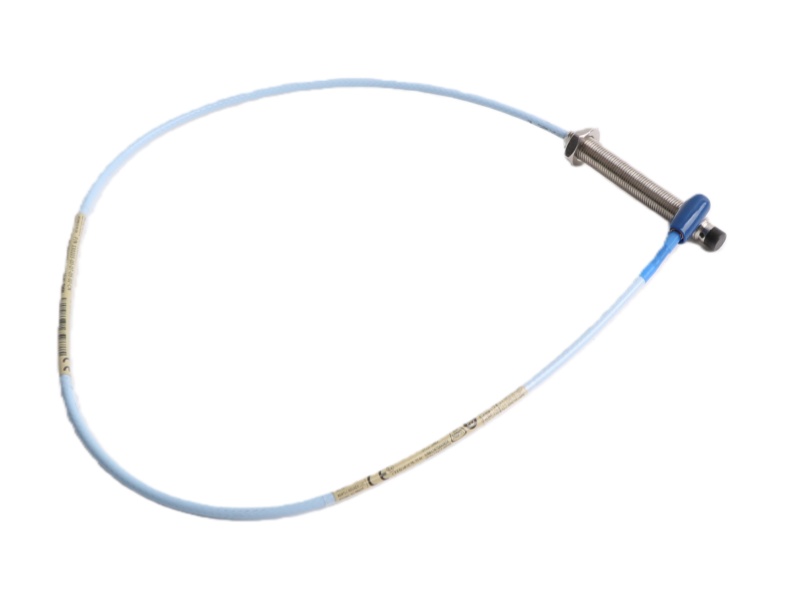

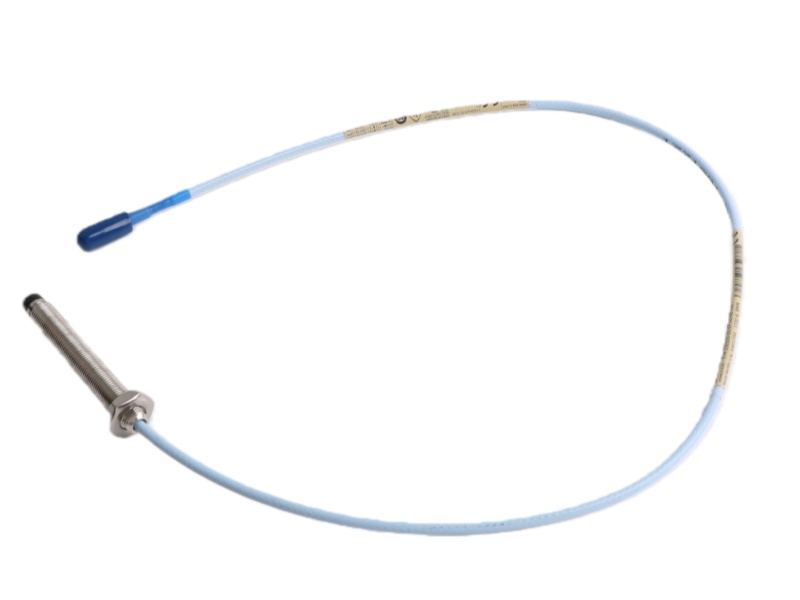

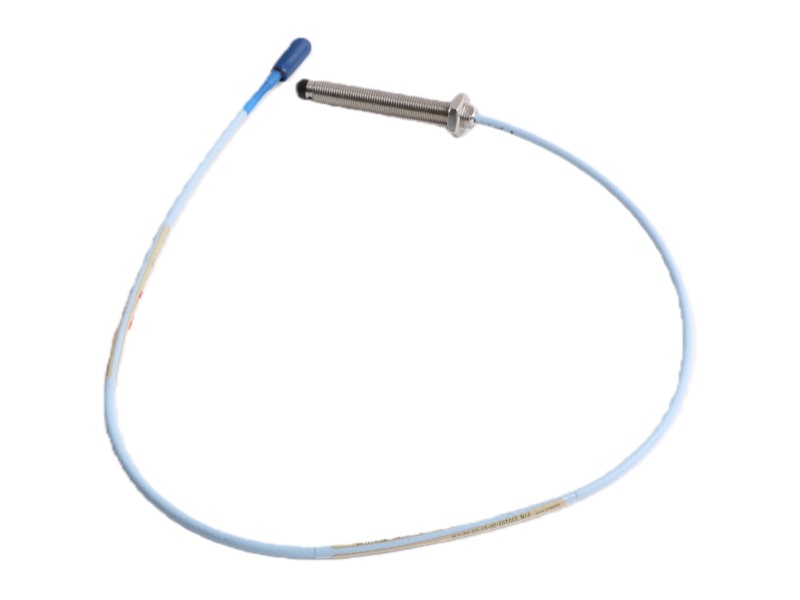

The Bently Nevada 3300 XL 8 mm Proximity Probes 330103-00-07-05-01-00 is a metric M10x1 threaded 8mm proximity probe with a 0.5m cable and ClickLoc connector, designed for integration into the 3300 XL transducer system for precise vibration and position measurement.

Features and Benefits

Metric Thread Design: Features an M10 x 1 mounting thread, specifically designed for equipment using metric standards.

Compact Form Factor: With a 70mm case length and no unthreaded section, it is ideal for installations with limited axial space.

Standard Cable Length: Includes a 0.5-meter integrated cable, suitable for typical connection distances.

Reliable Connection: Equipped with a miniature coaxial ClickLoc connector and protector for secure, corrosion-resistant connections.

System Integration: As a core component, it is fully interchangeable within the 3300 XL 8mm transducer system, eliminating bench calibration.

High-Performance Measurement: Provides precise output for both static position and dynamic vibration monitoring on critical machinery.

FAQ

Q1: What is the mounting thread specification for this probe?

A1: It features an M10 x 1 metric thread, making it suitable for equipment designed with metric mounting standards.

Q2: What is the integrated cable length of this probe model?

A2: The probe comes with a fixed 0.5-meter (1.6-foot) attached cable for direct connection.

Q3: What type of connector does it use, and is it protected?

A3: It uses a miniature coaxial ClickLoc connector, which includes a connector protector for environmental and mechanical protection.

Q4: Can this probe be used interchangeably within a 3300 XL system?

A4: Yes, it is fully interchangeable with other 3300 XL 8 mm system components, requiring no individual calibration.

Q5: What are the primary measurements this probe is used for?

A5: It is designed for precise measurement of both static (position) and dynamic (vibration) parameters on rotating machinery.
