The 330102-20-96-10-02-05 BENTLY NEVADA PDF is part of the advanced 3300 XL 8 mm proximity probe series, designed for high-accuracy static and dynamic measurements. This 3300 XL 8 mm Proximity Probes BENTLY NEVADA 330102-20-96-10-02-05 provides an output voltage directly proportional to the distance between the probe tip and a conductive surface, enabling precise monitoring of both position and vibration in rotating machinery.

The Bently Nevada 330102-20-96-10-02-05 3300 XL 8 mm Proximity Probes is commonly used in fluid-film bearing machines for radial vibration, shaft position, Keyphasor reference, and speed measurements. It fully meets API 670 standards for mechanical design, linearity, and temperature stability, ensuring exceptional reliability and compliance with industry requirements.

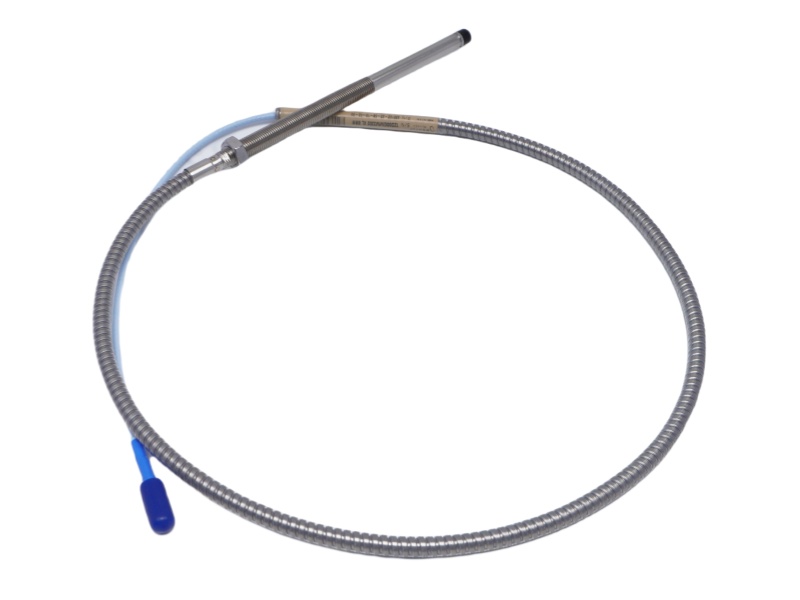

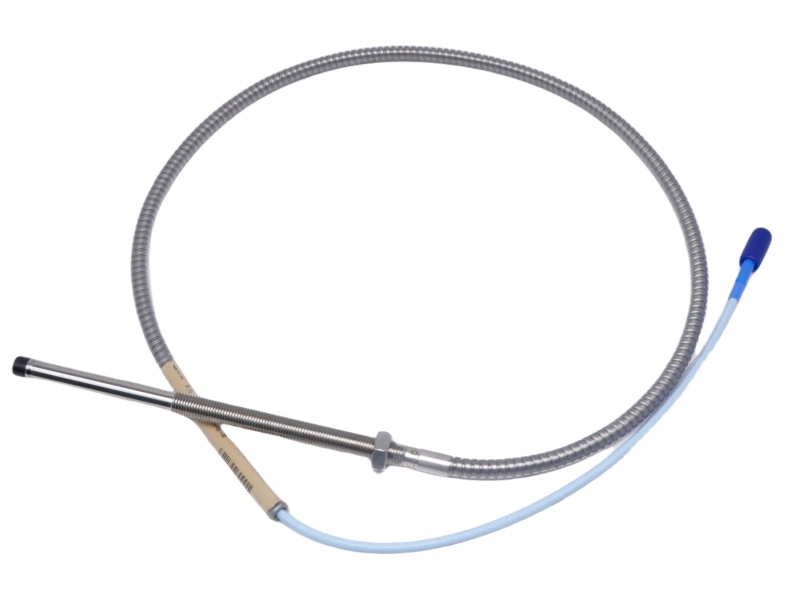

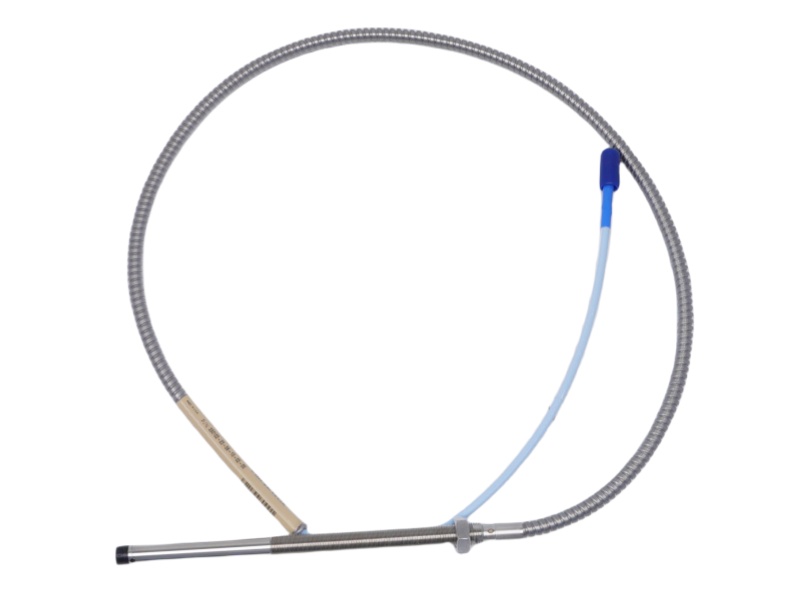

With a 3/8-24 UNF thread and armored construction, the 3300 SERIES 330102-20-96-10-02-05 Bently Nevada features a 2.0-inch unthreaded length, a 9.6-inch maximum case length, and a 1.0-meter standard cable with a miniature coaxial ClickLoc connector. This configuration offers durability and flexibility in demanding environments.

All components of the 330102-20-96-10-02-05 Bently Nevada PROBE are fully interchangeable without the need for matched calibration, simplifying maintenance and installation. Manufactured in the USA and shipped from Xiamen, China, this probe is CSA, ATEX, and IECEx approved, making it ideal for hazardous areas.
