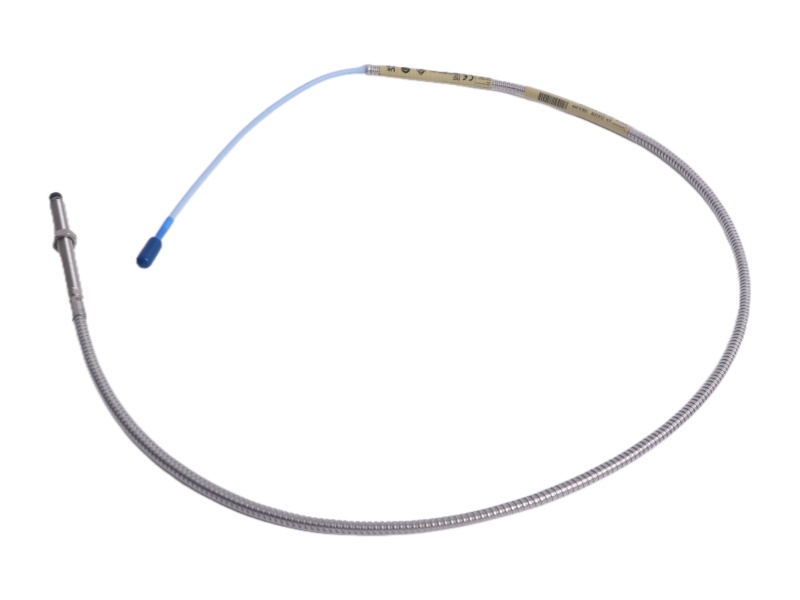

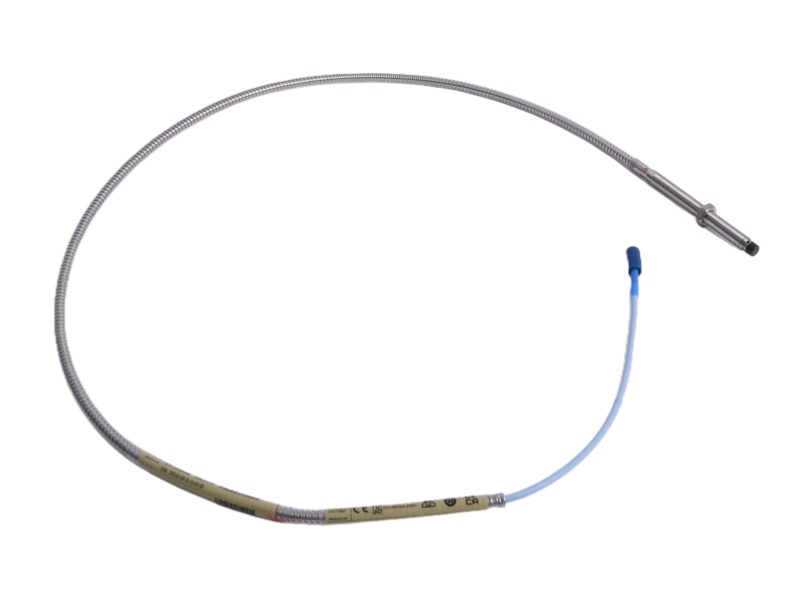

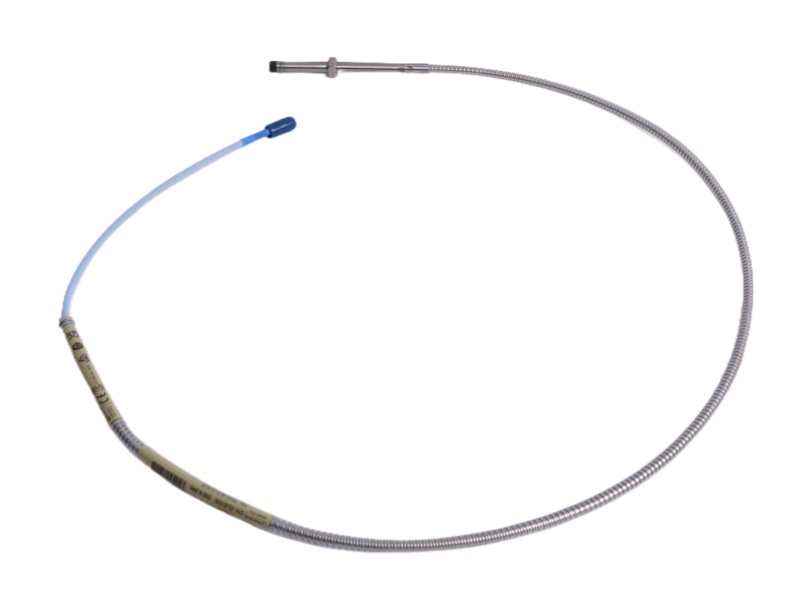

The 3300 XL NSv Transducer System Bently Nevada 330102-00-35-05-02-05  is an 8mm proximity probe from the 3300 XL series, engineered for precise vibration and position measurement on critical machinery. It generates a voltage output proportional to the gap between its tip and a conductive surface, capturing both dynamic vibration and static position. This Proximity Probes Bently Nevada 330102-00-35-05-02-05 is particularly suited for monitoring fluid-film bearing machines and providing Keyphasor® speed and timing references.

It offers advanced performance and fully complies with API 670 (4th Edition) standards for linear range, accuracy, and temperature stability. A key advantage of the Bently Nevada 330102-00-35-05-02-05 PDF is the complete interchangeability of its components, which eliminates the need for time-consuming matching or bench calibration. This ensures seamless integration and replacement within existing systems.

The 3300 XL 8mm Industrial Probe Bently Nevada 330102-00-35-05-02-05 is built with patented innovations for enhanced durability. The TipLoc molding process creates a superior bond between the probe tip and body, while the CableLoc design provides 330 N of pull strength to secure the cable assembly. For operation in challenging environments, it is available with an optional FluidLoc cable that prevents oil and other liquids from migrating through the cable interior, offering superior protection for the machinery.

Furthermore, the 3300 SERIES Bently Nevada 330102-00-35-05-02-05 is designed for broad compatibility and is backwards interchangeable with non-XL 3300 series 5 mm and 8 mm system components. This flexibility makes it an ideal and reliable choice for protecting vital industrial assets across various applications.
