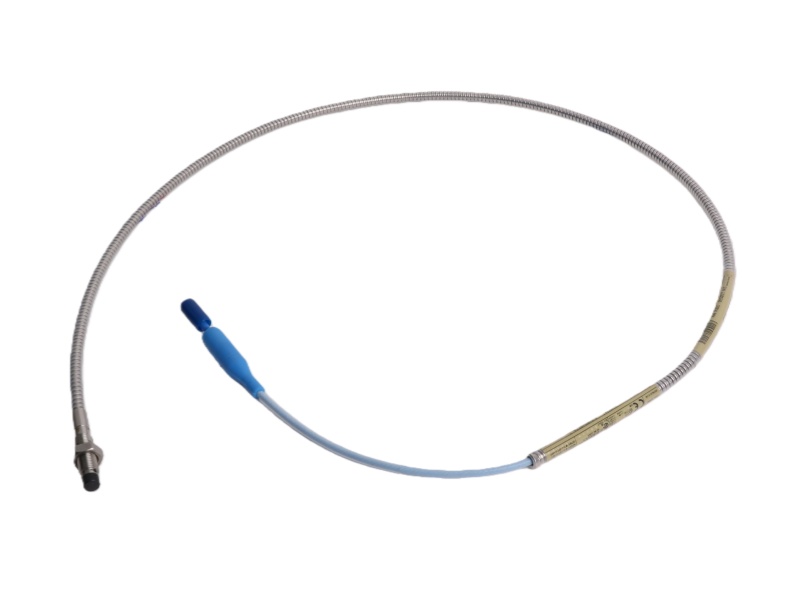

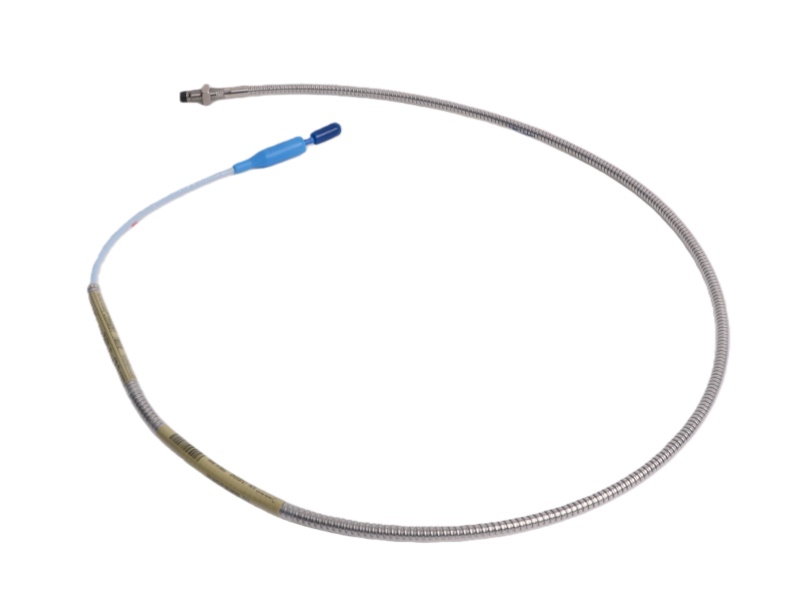

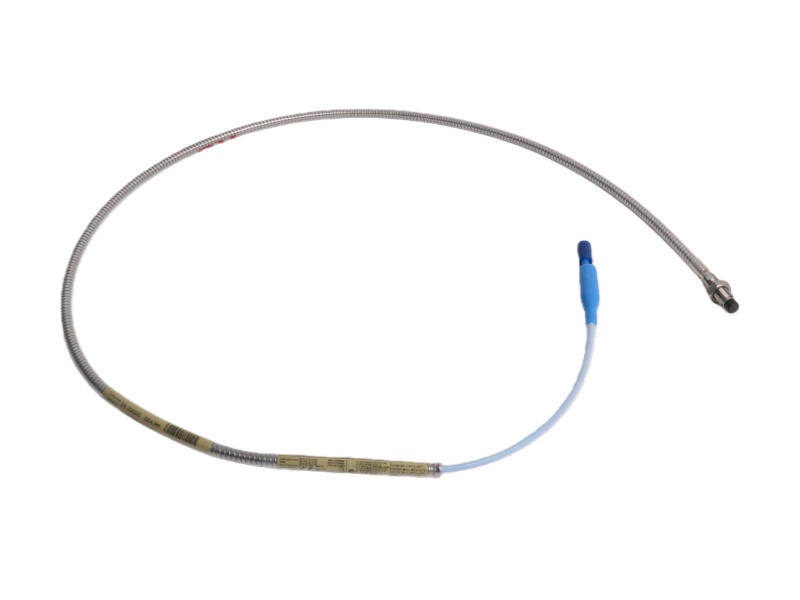

The Bently Nevada 330102-00-12-90-02-05 Vibration Measurement Interface Card is an 8mm proximity probe from the robust 3300 XL series. This model is engineered with a 3/8-24 UNF threaded and armored body, significantly enhancing its physical durability in demanding industrial environments.

A key feature that contributes to the reliability of the 3300 System Bently Nevada 330102-00-12-90-02-05 is its patented TipLoc molding process, which creates a superior bond between the probe tip and body.

Further reinforcing its mechanical integrity, the 8 mm Proximity Probes Bently Nevada 330102-00-12-90-02-05 incorporates the patented CableLoc design. This technology provides an exceptional 330 N (75 lbf) of cable pull-out strength, ensuring the connection remains secure under stress. The thicker encapsulation of the coil within the probe tip offers additional ruggedness, making the Bently Nevada Vibration Measurement Interface Card 330102-00-12-90-02-05 an ideal choice for applications where optimal robustness against physical impact is required.

This component is integral to a transducer system that generates a voltage output directly proportional to the gap between the probe and a conductive surface. This allows the system utilizing the 330102-00-12-90-02-05 Bently Nevada Proximitor Probe to accurately measure both static position and dynamic vibration on critical machinery such as fluid-film bearing machines. Its primary applications are vital for machine health monitoring, including serving as a Keyphasor reference for phase and speed measurements.
