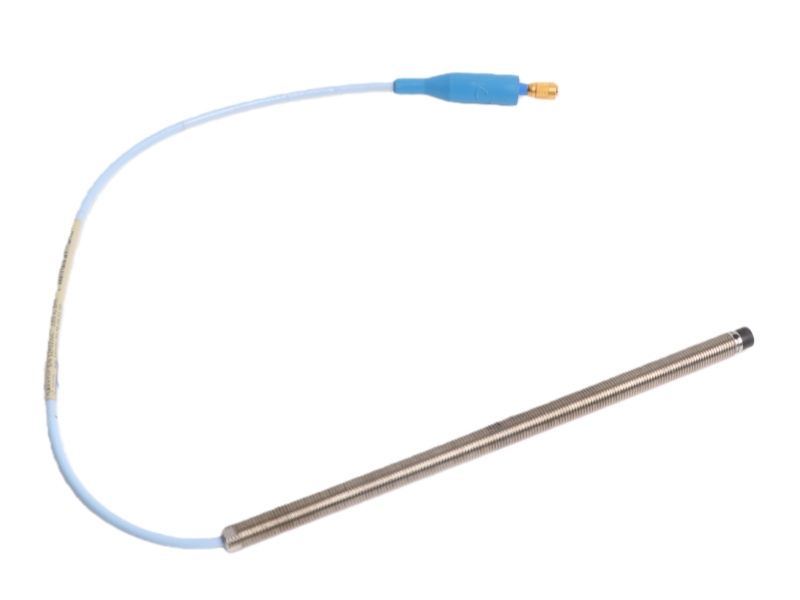

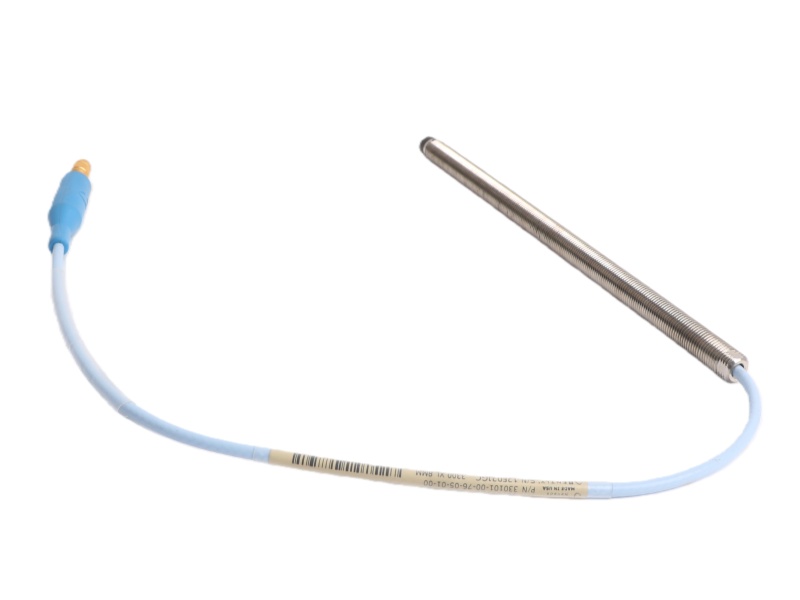

The Bently Nevada 330101-00-77-15-02-CN Advanced Sensor Monitoring Card is a 3300 XL series 8mm probe with a 7.7-inch case and a 1.5-meter ClickLoc cable. It features robust connector protection, is CSA/ATEX/IECEx certified, and interfaces with Proximitor sensors requiring -17.5 to -26 VDC.

Product Features

Probe Model: Bently Nevada 330101-00-77-15-02-CN, a 3300 XL series 8mm proximity probe.

Physical Dimensions: Features a 7.7-inch overall case length with a 3/8-24 UNF mounting thread.

Integrated Cable: Equipped with a fixed 1.5-meter standard cable and a miniature coaxial ClickLoc connector.

Certifications: Certified for hazardous locations with CSA, ATEX, and IECEx approvals.

System Compatibility: Interfaces with Proximitor sensors requiring -17.5 to -26 VDC power.

Electrical Performance: Delivers a stable 50 Ω output with high supply sensitivity (<2mV/V change).

FAQ

Q1: What is the full model number for this specific probe?

A1: It is model Bently Nevada 330101-00-77-15-02-CN.

Q2: What is its case length and cable specification?

A2: It has an overall case length of 7.7 inches and a fixed 1.5-meter cable.

Q3: What are its key safety certifications?

A3: It is approved for hazardous areas under CSA, ATEX, and IECEx standards.

Q4: What voltage does its compatible Proximitor sensor require?

A4: The Proximitor sensor requires -17.5 to -26 VDC (or -23 to -26 VDC with barriers).

Q5: What is the output resistance of the system?

A5: The transducer system provides a stable 50 Ω output resistance.
