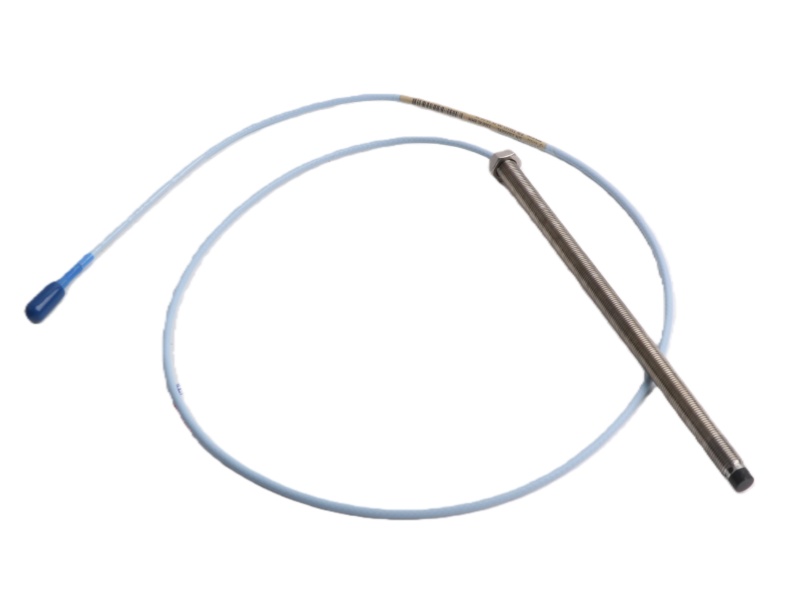

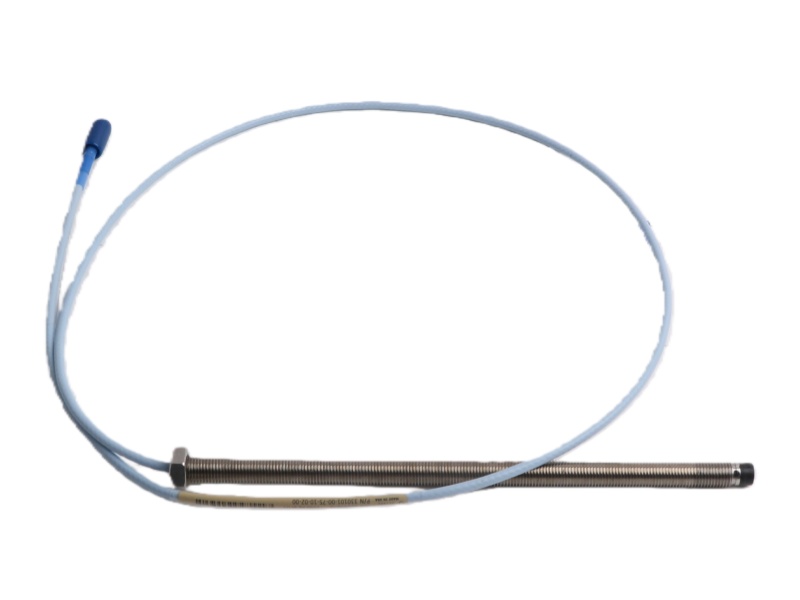

The 8 mm Proximity Probes Bently Nevada 330101-00-75-20-02-CN is an 8 mm 3300 XL series proximity probe with a 3/8-24 UNF thread, a 7.5-inch case, a 2-meter cable, and carries CSA, ATEX, and IECEx approvals.

Technical Data Summary

• Model & Type: Bently Nevada model 330101-00-75-20-02-CN, a 3300 XL 8mm Proximity Probe.

• Mounting & Size: Features a 3/8-24 UNF thread with a 7.5-inch overall case length.

• Cable Assembly: Integrates a 2.0-meter standard cable with a miniature coaxial ClickLoc connector.

• International Approvals: Certified for use in hazardous locations with CSA, ATEX, and IECEx approvals.

• Physical Specs: Compact design with a shipping size of 1.6x1.4x119cm.

• Lightweight: Weighs only 0.05 kg for easy handling and installation.s).

FAQ

Q1: What is the model of this Bently Nevada probe?

A1: It is the 330101-00-75-20-02-CN, an 8mm probe from the 3300 XL series.

Q2: What is its key physical specification?

A2: It has an overall case length of 7.5 inches and a 3/8-24 UNF mounting thread without armor.

Q3: What are its cable and connector details?

A3: It is equipped with a 2.0-meter standard cable terminated with a miniature coaxial ClickLoc connector.

Q4: Which safety certifications does it hold?

A4: It holds international hazardous area approvals, including CSA, ATEX, and IECEx.

Q5: What is its approximate shipping weight?

A5: The probe is lightweight, weighing approximately 0.05 kg.
