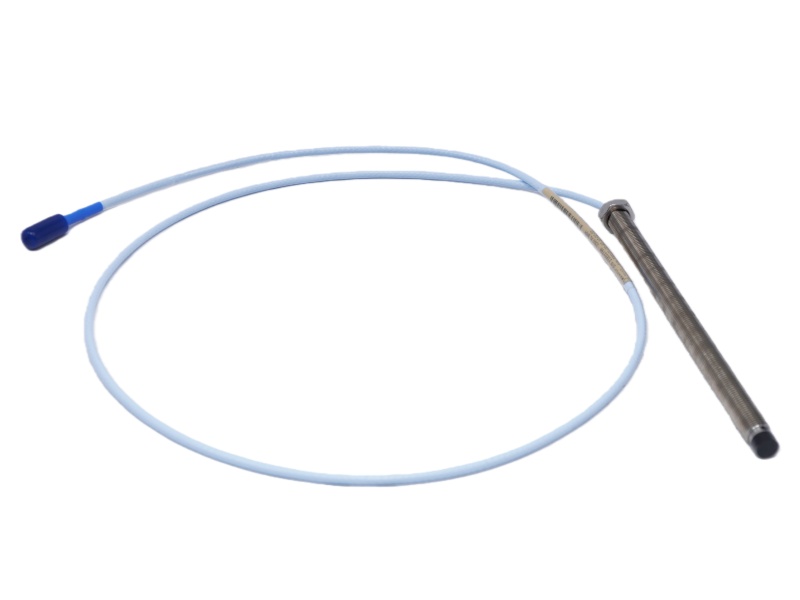

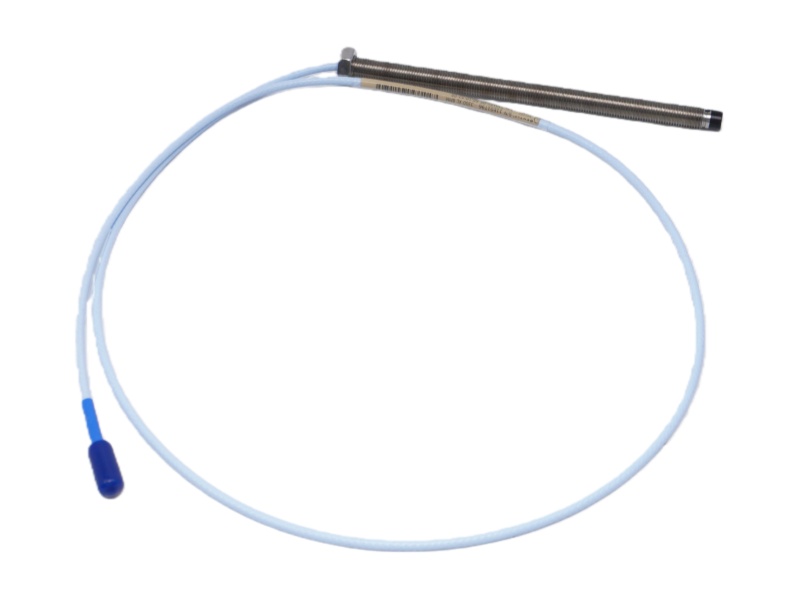

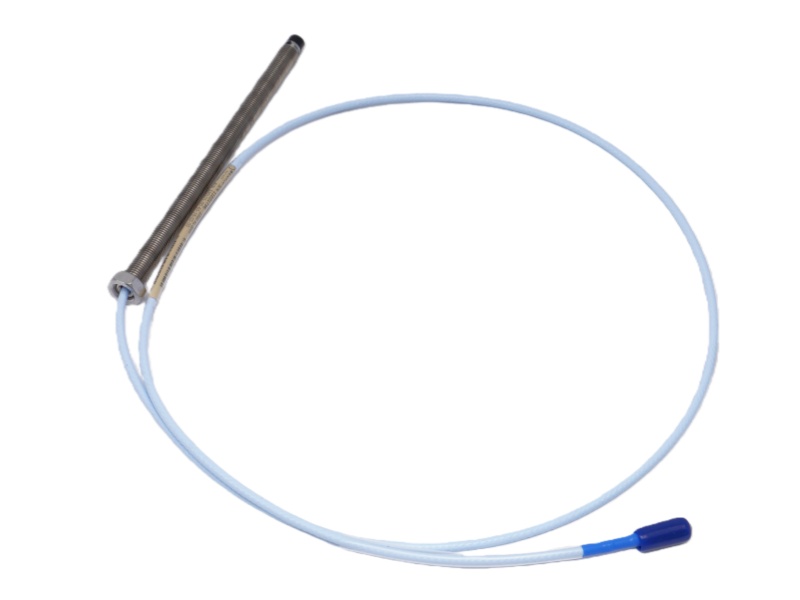

The Bently Nevada 330101-00-61-15-02-CN PROBE SENSOR CABLE is a rugged 3300 XL 8mm probe with a 6.1-inch case and a 1.5-meter cable. Its robust design and integrated O-ring seal ensure durability for precise vibration and position measurement in demanding applications.

Environment & Certification

• Robust 8mm Design: Features a thicker probe tip and larger body for superior durability against physical abuse.

• Pressure Sealing: Includes a Viton® O-ring to seal the differential pressure between the probe tip and case.

• Multi-Function Measurement: Capable of both static position and dynamic vibration monitoring for comprehensive analysis.

• Key Application: Primarily used for vibration and position measurement on critical fluid-film bearing machinery.

• System Integration: Functions as a core component within the complete 3300 XL 8mm Proximity Transducer System.

• High-Precision Output: Delivers a voltage signal directly proportional to the gap distance for accurate monitoring.

FAQ

Q1: Why is an 8mm probe recommended?

A1: Its thicker encapsulation and larger body make it the most robust option, recommended for optimal durability.

Q2: What type of sealing does it have?

A2: It includes a Viton® O-ring designed to seal differential pressure between the probe tip and case.

Q3: Is it tested for pressure sealing?

A3: Probes are not pressure tested before shipment; customers requiring a seal test must contact the custom design department.

Q4: What is its primary function?

A4: It is used for static position and dynamic vibration measurement on fluid-film bearing machines, Keyphasor, and speed applications.

Q5: What system is it part of?

A5: It is a key component of the complete 3300 XL 8 mm Proximity Transducer System.
