Exact probe configuration for machinery vibration and position monitoring.

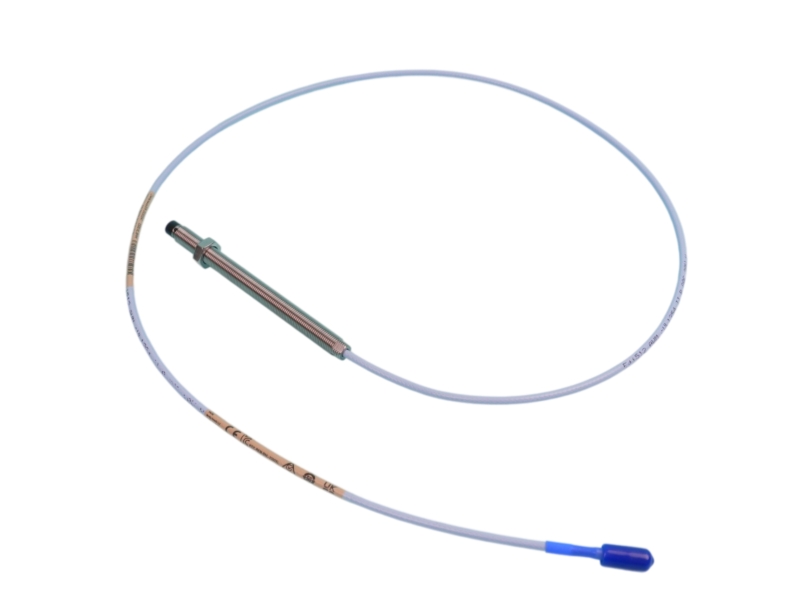

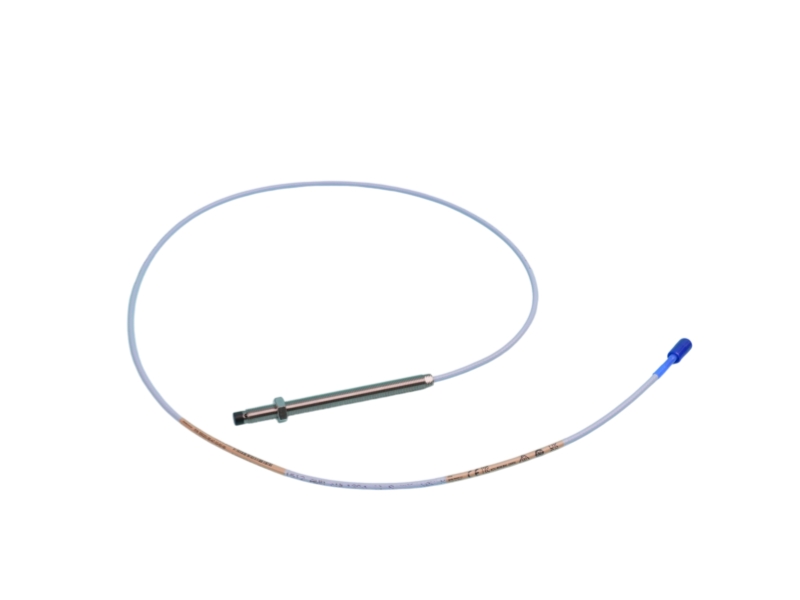

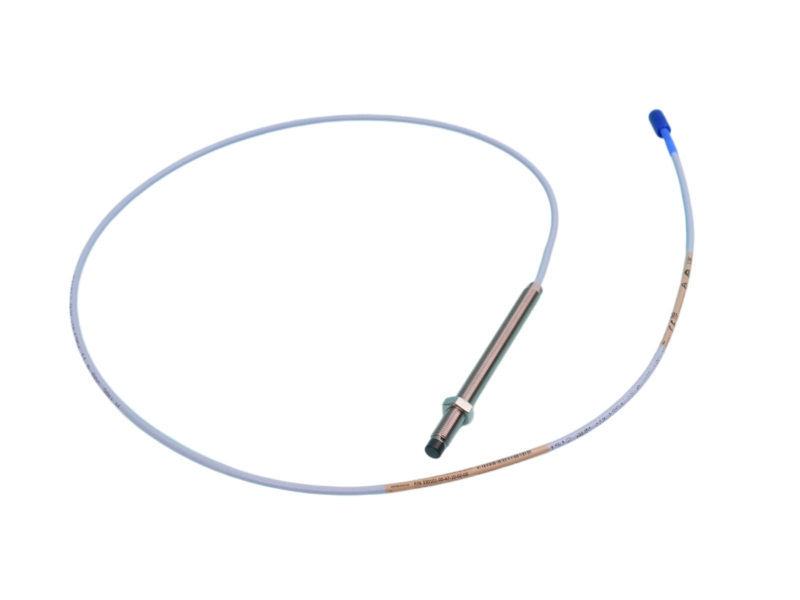

Bently Nevada 330101-00-47-05-02-05 is an unarmored 3300 XL 8 mm proximity probe with a 3/8-24 UNF thread. The complete ordering code identifies a 0.0-inch unthreaded length, 4.7-inch case length, 0.5-meter total length, miniature coaxial ClickLoc connector without protector, standard cable, and CSA, ATEX, and IECEx approval option. It forms the sensing element of a compatible 3300 XL 8 mm proximity transducer system for measuring shaft vibration and position on rotating machinery. Procurement review should match the complete suffix, system length, cable type, connector, approvals, and associated extension cable and Proximitor sensor.
| Product Condition | Original new |
|---|---|
| Availability | In stock |
| Warranty | With 1 year warranty |
| Shipping | Worldwide shipping options available |
Condition, availability and warranty are Stockoems commercial information, not manufacturer commitments.
| Manufacturer | Bently Nevada |
|---|---|
| Complete Part Number | 330101-00-47-05-02-05 |
| Product Type | 3300 XL 8 mm proximity probe |
| Probe Configuration | 3/8-24 UNF thread, without armor |
| Unthreaded Length | 0.0 in |
| Overall Case Length | 4.7 in |
| Total Length | 0.5 meter (1.6 feet) |
| Connector and Cable | Miniature coaxial ClickLoc connector without protector, standard cable |
| Agency Approval Option | CSA, ATEX and IECEx approvals |
| System Family | 3300 XL 8 mm Proximity Transducer System |
| Country of Origin | USA |
| System Role | Sensing element in a compatible 3300 XL 8 mm proximity transducer system. |
|---|---|
| Typical Measurements | Relative shaft vibration, shaft position, Keyphasor and speed applications where the configured system is suitable. |
| Typical Equipment | Fluid-film bearing rotating machinery and associated condition-monitoring installations. |
| Replacement Use | Maintenance replacement only after the complete probe code and transducer-system configuration are matched. |
Baker Hughes Bently Nevada documentation confirms the exact ordering configuration and current technical family, but no lifecycle classification for the complete part number was identified in the reviewed official material. No Active, Discontinued or replacement conclusion is inferred. Procurement teams should verify the exact suffix, approvals and system configuration against current manufacturer documentation.
It identifies an unarmored 3300 XL 8 mm proximity probe with a specific thread, length, cable, connector and approval configuration.
The code specifies 0.0-inch unthreaded length, 4.7-inch overall case length and 0.5-meter total length.
The configuration uses a miniature coaxial ClickLoc connector without connector protector and standard cable.
Suffix 05 identifies the CSA, ATEX and IECEx approval option.
No. The complete suffix, mounting dimensions, total system length, connector, cable type, approvals and associated extension cable and Proximitor sensor must be matched.
No lifecycle classification for this complete part number was identified in the reviewed official material, so no status is inferred.
Send us the complete part number, required quantity, destination country and product label photos. Our team will check availability, condition, compatibility requirements and shipping options.
Structured verification, inspection, logistics and after-sales coordination for Bently Nevada 330101-00-47-05-02-05.
| Model and Suffix Verification | We compare every suffix group with the quotation, purchase order and product label before shipment. |
|---|---|
| Condition Confirmation | Visible condition, packaging, seals and included items are reviewed against the agreed commercial condition. |
| Technical Compatibility Review | Thread, case length, total length, connector, cable type, approvals and associated transducer-system components are checked from supplied records. |
| Photo Confirmation | Product, label, connector and packaging photographs can be reviewed before dispatch. |
Our workflow covers visual inspection, label cross-checking, technical-document review and order-record reconciliation. Protective packaging is selected for delicate probe tips, cable assemblies and connectors. Worldwide shipping options are coordinated after order review, with shipment tracking and customs documentation prepared according to the confirmed destination and commercial terms. Written warranty terms, the return authorization process and the after-sales response channel are documented before shipment. Stock quantities and delivery dates are only confirmed in the formal quotation.
Look for complete model verification, consistent technical descriptions, traceable commercial documents, readable inspection photographs, written warranty terms and a clearly explained return process.
Review the quotation, invoice terms, complete product label, manufacturer order code, approval marks, packaging evidence, warranty wording, shipping documents and return authorization conditions.
Engineers should compare the full suffix, mounting thread, probe dimensions, total system length, cable and connector configuration, approvals, Proximitor sensor, extension cable and target material.
Incomplete part numbers, refusal to provide label photographs, conflicting specifications, unexplained approval differences, unsupported delivery claims and an unclear return process require further review.
Share the full probe code, quantity, destination, system length and label photos for an order and compatibility review.
