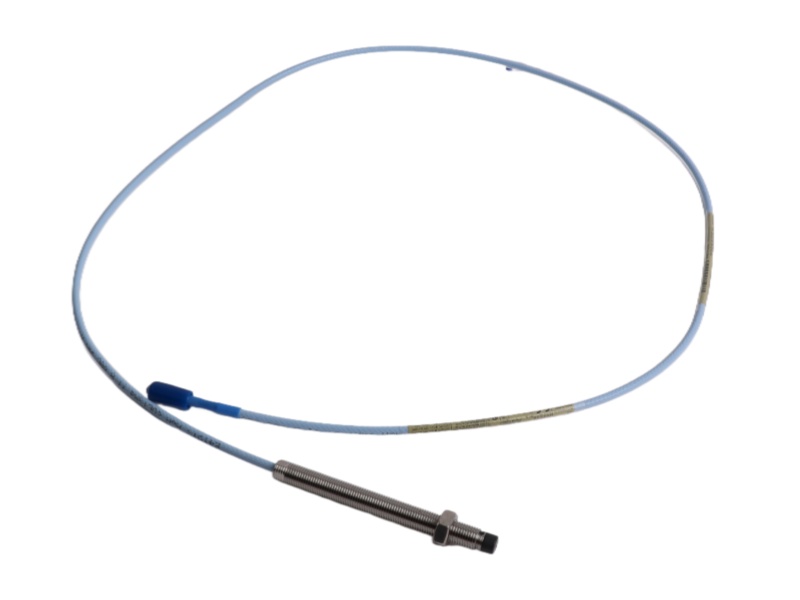

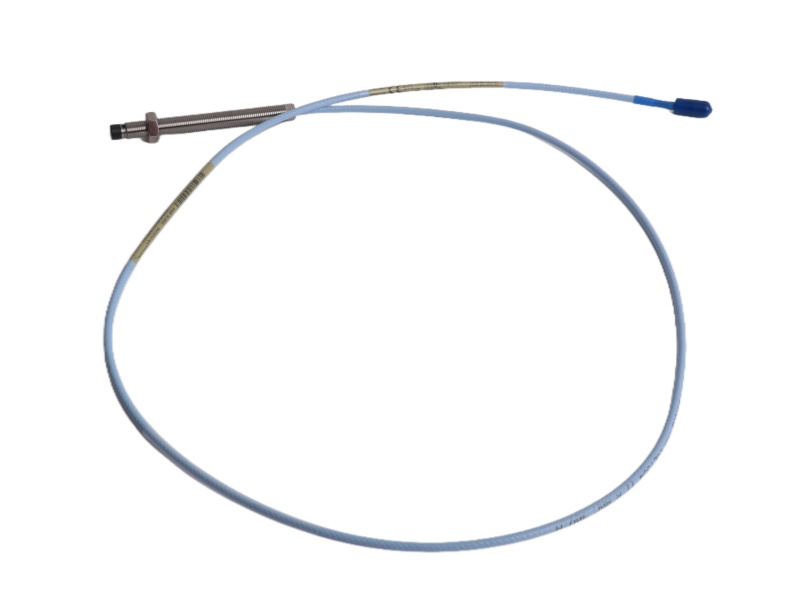

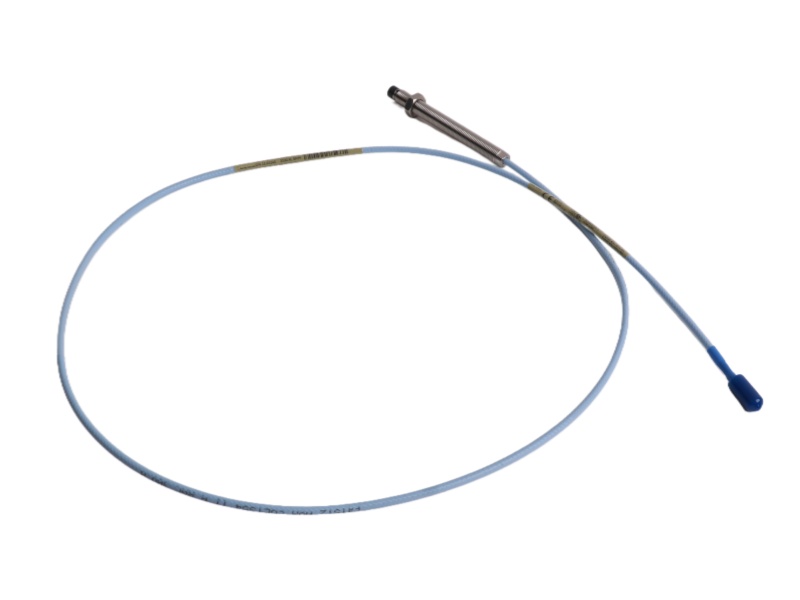

The Bently Nevada 3300 XL 8 mm Proximity Probes 330101-00-36-15-02-05 is a precision-engineered proximity probe designed for demanding industrial applications. With a compact weight of just 0.05 kg, it features an overall case length of 3.6 inches and a total cable length of 1.5 meters (4.9 feet). The 3300 SERIES Bently Nevada 330101-00-36-15-02-05 is equipped with a miniature coaxial ClickLoc connector and standard cable, ensuring secure connections and durability even in harsh operating environments.

This model delivers an output voltage directly proportional to the distance between the probe tip and the observed conductive surface. By providing accurate measurement of both static (position) and dynamic (vibration) values, the 330101-00-36-15-02-05 Bently Nevada Proximity Probes plays a critical role in monitoring and protecting rotating machinery.

Its primary applications include vibration and position monitoring on fluid-film bearing machines, as well as supporting Keyphasor reference and speed measurements. The robust design of the Probes 330101-00-36-15-02-05 Bently Nevada ensures high reliability, making it suitable for continuous use in complex industrial processes.

The system also complies fully with API 670 standards, covering mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm transducer systems, including the Bently Nevada 330101-00-36-15-02-05 3300 XL 8 mm Proximity Probes, provide advanced performance and complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need for matching or bench calibration.
