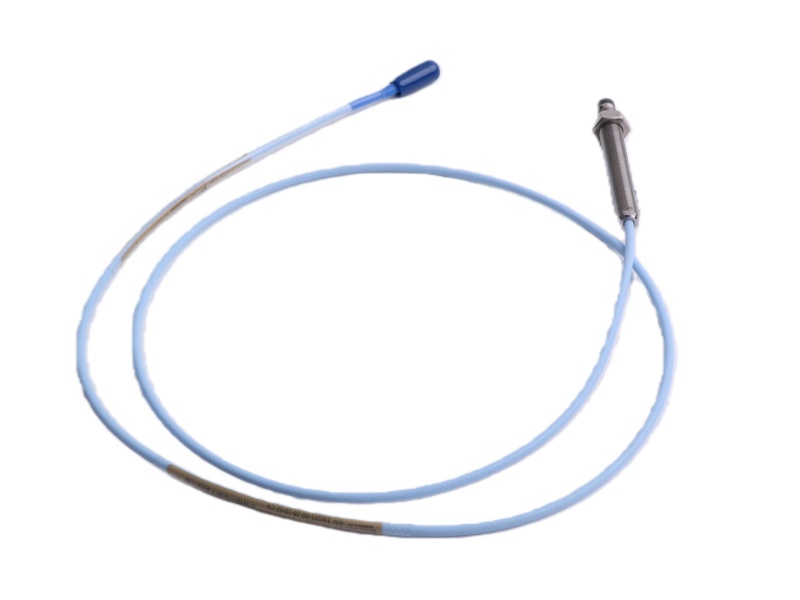

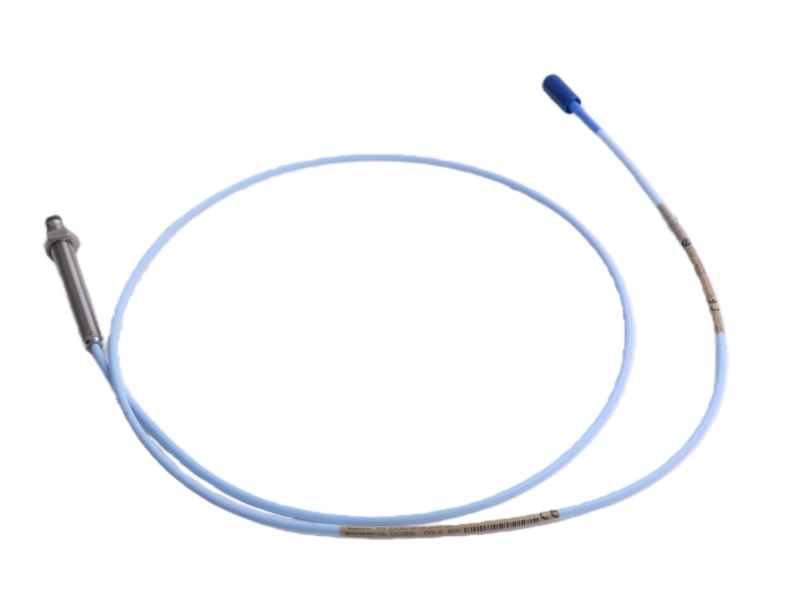

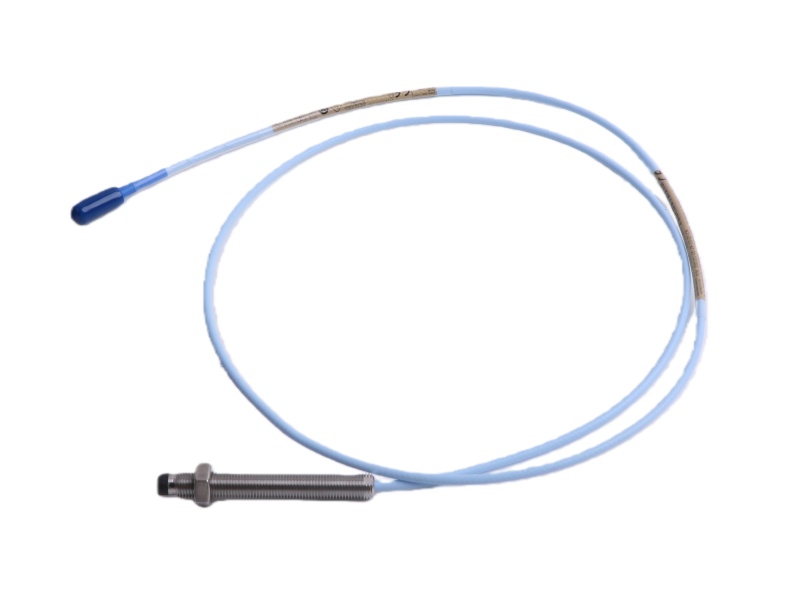

The 330101-00-29-10-02-00 Bently Nevada 3300 XL 8mm Proximity Transducer is a 3300 XL 8mm proximity probe with a 1-meter cable. It features a 3/8-24 UNF thread, ClickLoc connector, and measures both position and vibration for fluid-film bearing monitoring.

Specifications

Product Type: A 3300 XL 8mm eddy current proximity probe.

Physical Specs: Has a total length of 1.0 meter and weighs 0.323 kg.

Thread Mounting: Features a standard 3/8-24 UNF thread without armor.

Connection: Equipped with a Miniature Coaxial ClickLoc connector.

Measurement: Provides precise voltage output for static and dynamic gap measurement.

Interoperability: Components are fully interchangeable, including with 5mm models.

FAQ

Q1: What type of measurement does this probe perform?

A1: It measures both static position and dynamic vibration.

Q2: What is the total length of this probe model?

A2: The probe has a total length of 1.0 meter (3.3 feet).

Q3: What is its thread specification?

A3: It uses a 3/8-24 UNF thread for mounting without armor.

Q4: What connector does it feature?

A4: It is equipped with a Miniature Coaxial ClickLoc connector.

Q5: Is this probe interchangeable with older models?

A5: Yes, it is backward compatible and interchangeable with other 3300 series components.
