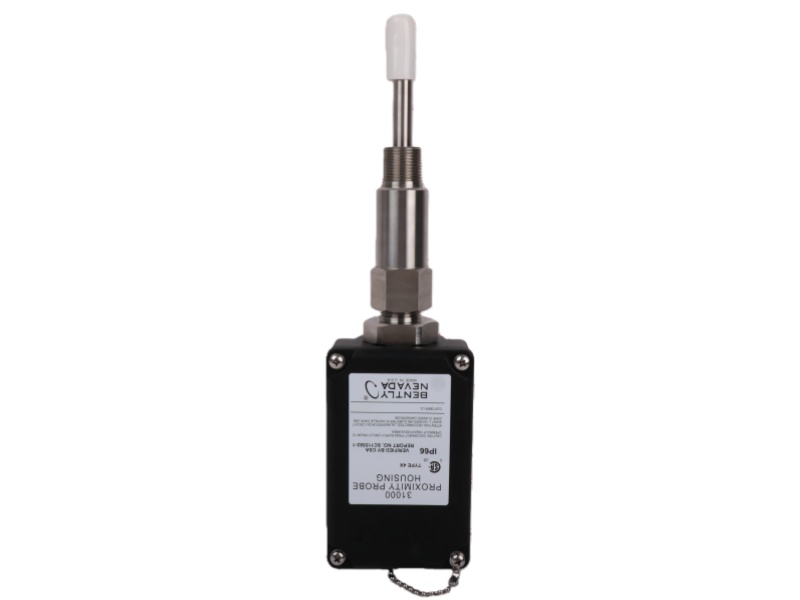

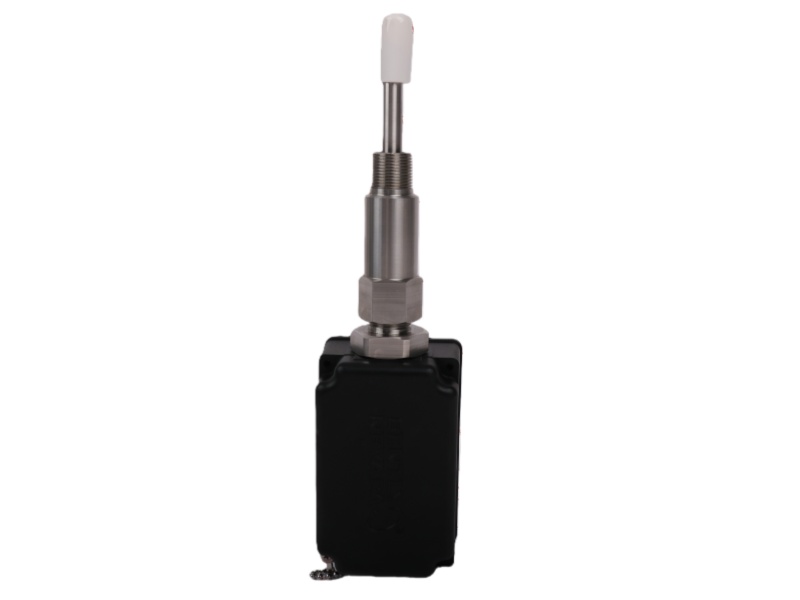

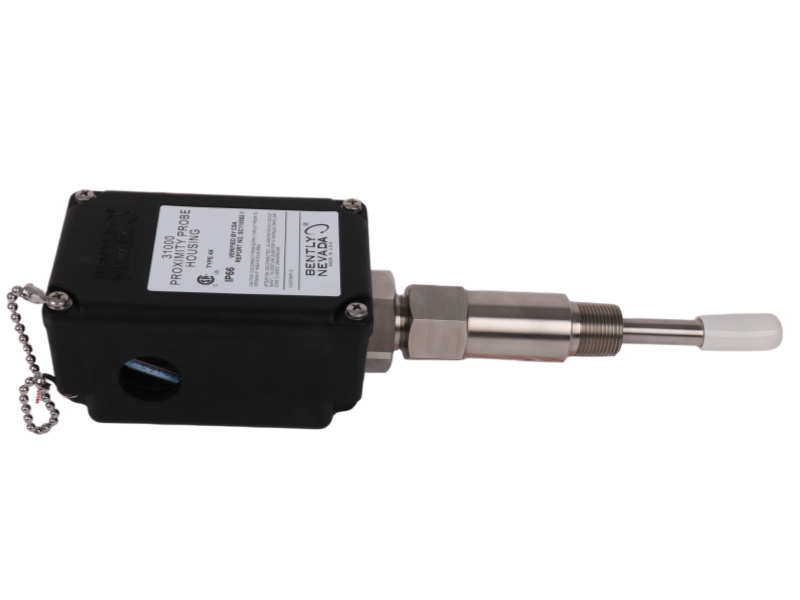

The Bently Nevada Metric Proximity Probe HousingAssemblies 32000-29-10-04-055-03-02 is a probe housing assembly equipped with a 1-meter cable 8mm 3300 XL probe, offering NEMA 4X/IP66 water protection with 40mm standoff and 55mm penetration lengths.

High-Resolution Measurement

8 mm Probe: The integrated 3300 XL probe provides precise gap measurement.

Fixed Lengths: Standardized 40 mm standoff and 55 mm penetration ensure accurate, repeatable positioning.

Secure Connection: Robust M20 and 3/4-14 NPT fittings guarantee stable mounting.

Protected Signal: The 1.0 m armored cable and connector protector minimize signal interference.

Stable Sealing: Viton and Neoprene O-rings maintain a consistent measurement environment.

Environmental Rating: NEMA 4X/IP66 housing protects against contaminants for reliable data integrity.

FAQ

Q1: What is the Bently Nevada 32000-29-10-04-055-03-02?

A1: It is a proximity probe housing assembly configured with a 40mm standoff and 55mm penetration for precise industrial vibration measurement.

Q2: What probe does it use?

A2: It comes equipped with a standard 8 mm diameter 3300 XL proximity probe.

Q3: What are its key mechanical specifications?

A3: It features M20 and 3/4-14 NPT mounting threads with a 1-meter armored cable.

Q4: What level of environmental protection does it provide?

A4: Its housing is certified to NEMA 4X and IP66 standards for protection against water ingress.

Q5: Is it designed for pressure applications?

A5: No, it is not designed to resist significant internal or external pressure and is not pressure-tested before shipment.
