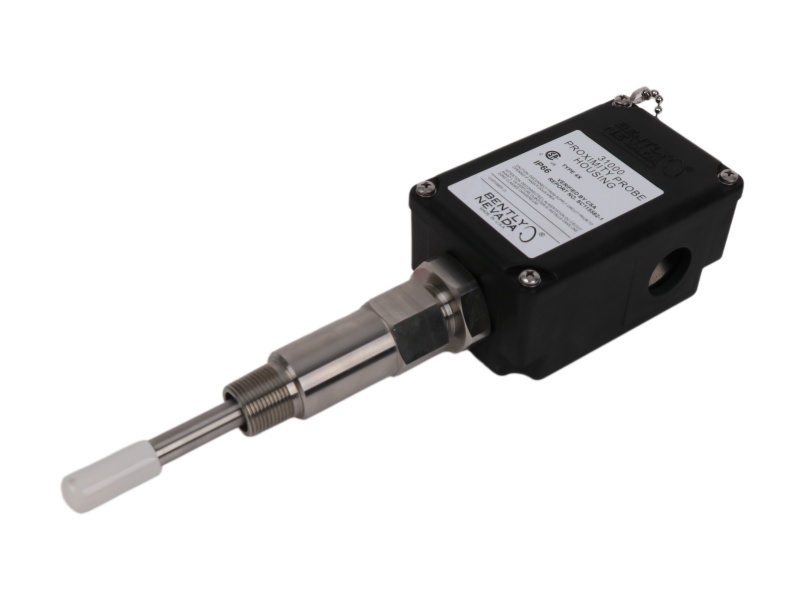

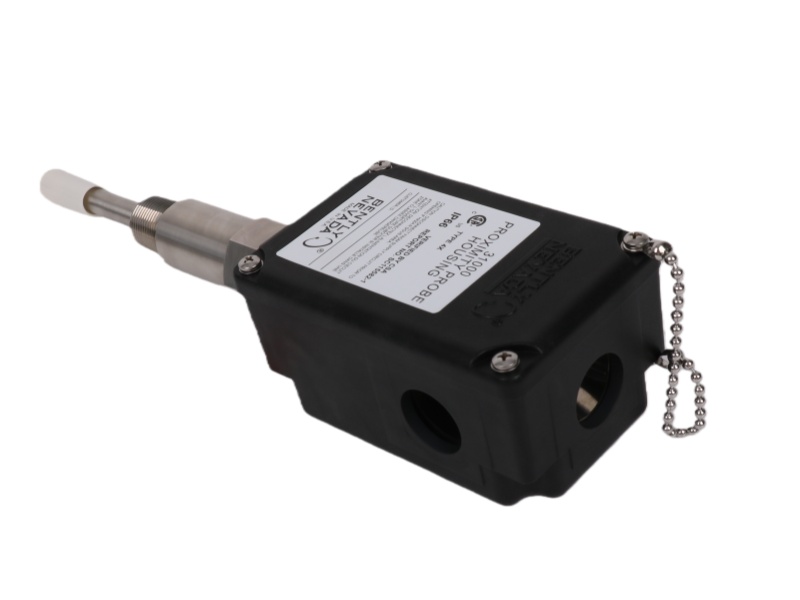

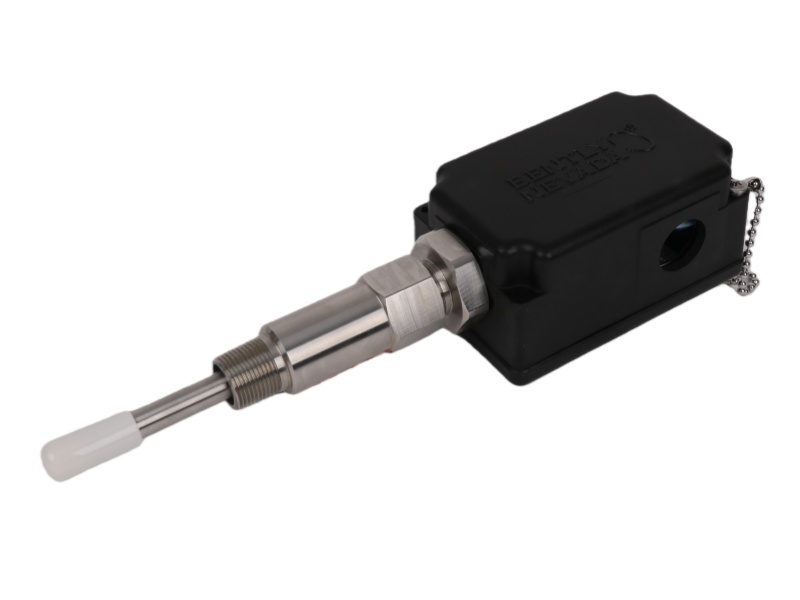

The Bently Nevada Metric Proximity Probe HousingAssemblies 32000-29-10-00-234-03-02 is a corrosion-resistant proximity probe housing with an 8mm 3300 XL probe, ideal for radial vibration measurement and API 670 compliant machine monitoring.

Technical Data Summary

Probe Type: 8 mm 3300 XL proximity probe.

Cable Length: 1.0 m (39 in).

Minimum Length: 234 mm.

Thread Options: M20 and 3/4-14 NPT fittings.

Material: Corrosion-resistant PPS housing with stainless steel parts.

Compliance: Fully compliant with API 670 standard.

FAQ

Q1: What is the Bently Nevada 32000-29-10-00-234-03-02?

A1: It is a corrosion-resistant proximity probe housing assembly used for radial vibration and Keyphasor measurements.

Q2: What is the probe specification for this model?

A2: It features a standard 8 mm 3300 XL probe with a 1.0 m armored cable.

Q3: What are the primary mounting options?

A3: It is equipped with M20 and 3/4-14 NPT threaded fittings for versatile installation.

Q4: Does it comply with any industry standards?

A4: Yes, it is fully compliant with the API 670 standard for externally mounted probe housings.

Q5: What is the key installation requirement for accurate vibration measurement?

A5: The machine casing must be affixed to the bearing to obtain an accurate relative vibration signal.
