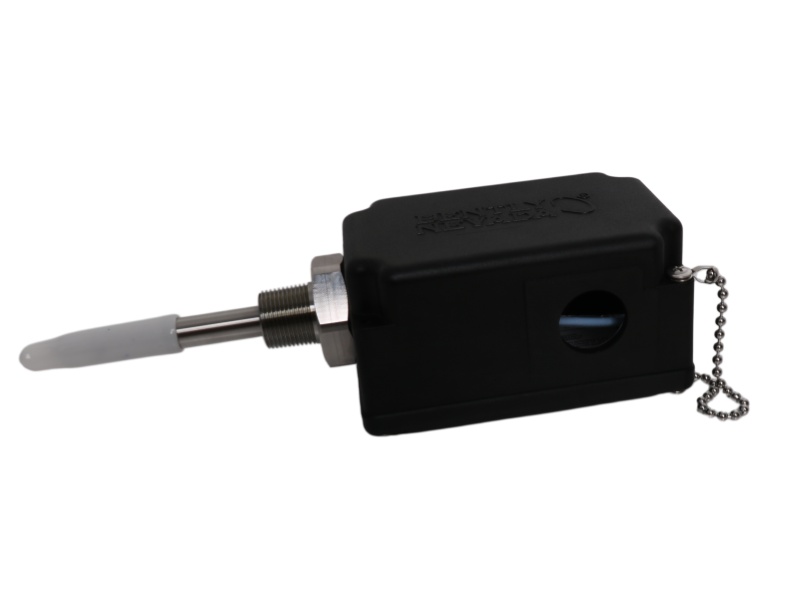

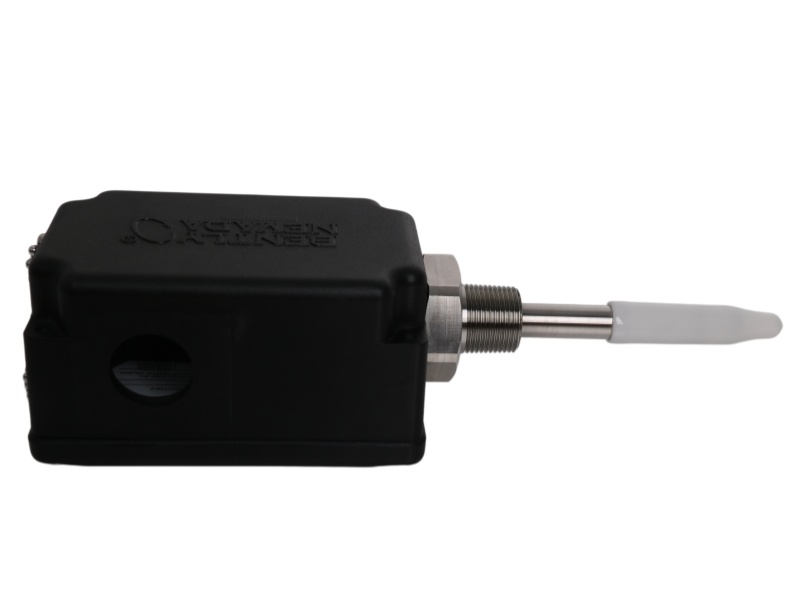

The Metric Proximity Probe HousingAssemblies Bently Nevada 32000-16-05-04-135-03-02 is a radial probe housing made of corrosion-resistant PPS and stainless steel, allowing external access and gap adjustment for machinery monitoring.

Technical Data Summary

Product Model: 32000-16-05-04-135-03-02.

Application: For radial mounting of proximity probes (vibration/Keyphasor) through machine cases.

Material: Main housing of corrosion-resistant Polyphenylene Sulfide (PPS) with stainless steel components.

Primary Benefit: Enables external probe access, adjustment, and replacement without machine disassembly.

Compliance: Fully compliant with API 670 standard for externally mounted housings.

Hazardous Area Use: Suitable for intrinsically safe applications when used with approved safety barriers.

FAQ

Q1: What is the primary purpose of the 32000-16-05-04-135-03-02 housing?

A1: It is a radial probe housing for mounting proximity probes through a machine case for vibration or Keyphasor measurements.

Q2: What material is the main housing body made from?

A2: It is constructed from Polyphenylene Sulfide (PPS), a strong, corrosion-resistant thermoplastic.

Q3: Can this housing be used for axial position measurement?

A3: No, for measuring shaft axial position with dual probes, a different housing (21022) is required.

Q4: Does this housing meet industry standards?

A4: Yes, it is fully compliant with the API 670 Standard for externally mounted probe housings.

Q5: What is a key maintenance benefit of using this housing?

A5: It allows for external probe access, enabling gap adjustment or probe replacement without machine disassembly.
