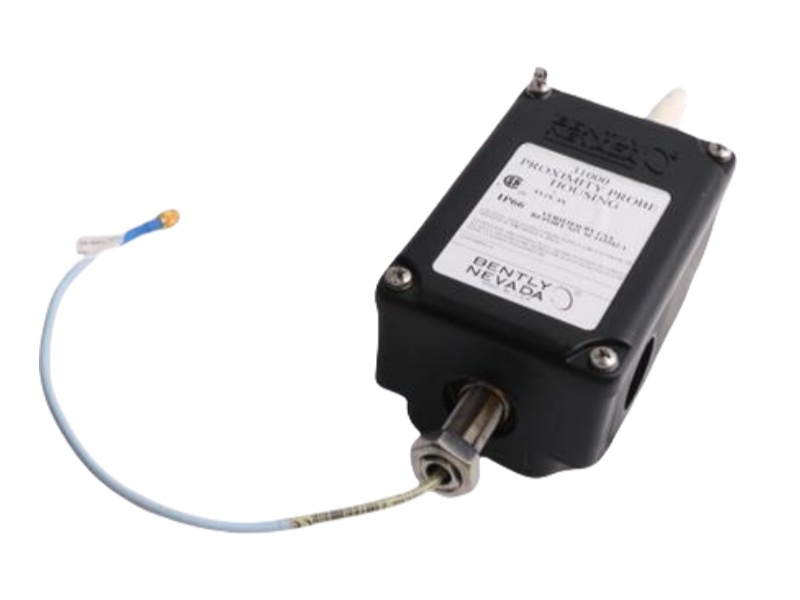

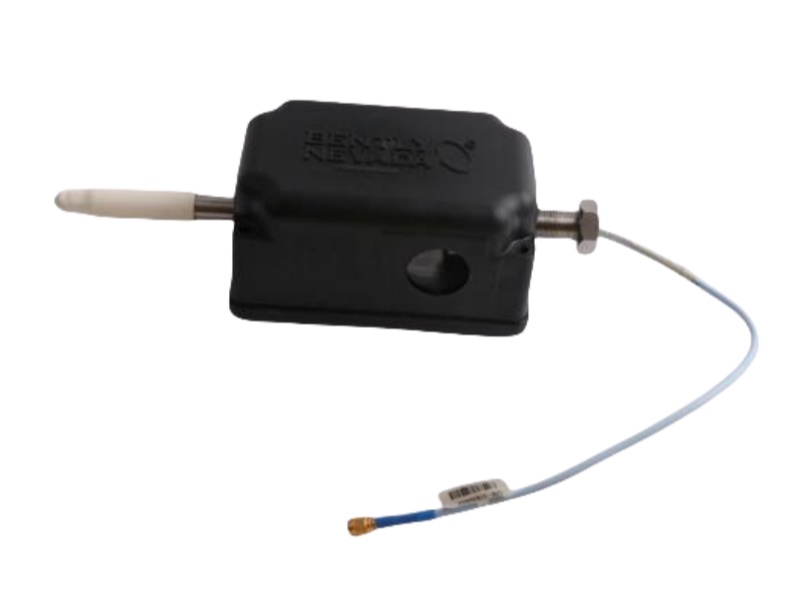

The BENTLY NAVADA 31000-27-05-00-035-03-02  3300 XL Proximity Probes is a premium proximity probe housing assembly designed for use with radially mounted transducers to measure vibration or Keyphasor signals on critical rotating machinery. This assembly ensures accurate data by allowing proximity probes to be mounted securely through the machine casing, which is essential for obtaining reliable relative vibration measurements. When measuring shaft axial position with dual probes, an alternative housing like the 21022 is recommended.

Constructed for durability, the 31000 Proximity Probe Housing Bently Nevada features a housing made of polyphenylene sulfide (PPS), a high-strength thermoplastic known for exceptional corrosion resistance. Complementing this, its outer sleeve and exterior screws are crafted from AISI 303 stainless steel, while the O-ring uses robust neoprene to withstand challenging environments. This ensures the assembly operates reliably within a wide temperature range of -51 °C to +105 °C (-60 °F to +221 °F).

One key advantage of the Proximity Probe Bently Nevada 31000-27-05-00-035-03-02 is that it provides external access to the proximity probe and extension cable. This design enables easy gap adjustments or probe replacements without needing to dismantle the machine, minimizing downtime and maintenance costs. It comes with two plugs, a 3/4-14 NPT fitting, a stainless-steel reducer, and cable seal grips supporting multiple cable sizes.

Fully compliant with API 670 standards, the 3300 Series 31000-27-05-00-035-03-02 is suitable for use in hazardous areas when installed with approved transducer systems and intrinsic safety barriers. Manufactured in the USA and shipped from Xiamen, China, this assembly is a trusted solution for protecting valuable assets. By integrating the Bently Nevada 31000-27-05-00-035-03-02 Proximity Probe Housing Assemblies, facilities can ensure robust monitoring and extend the life of critical rotating equipment.
